SWINGARM
4-68
WARNING
EWA13770
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
• Pivot shaft
• Dust covers
• Spacers
• Washers
• Bearings
4. Check:
• Dust covers
• Spacers
• Oil seals
Damage/wear → Replace.
• Bearings
Damage/pitting → Replace.
EAS23380

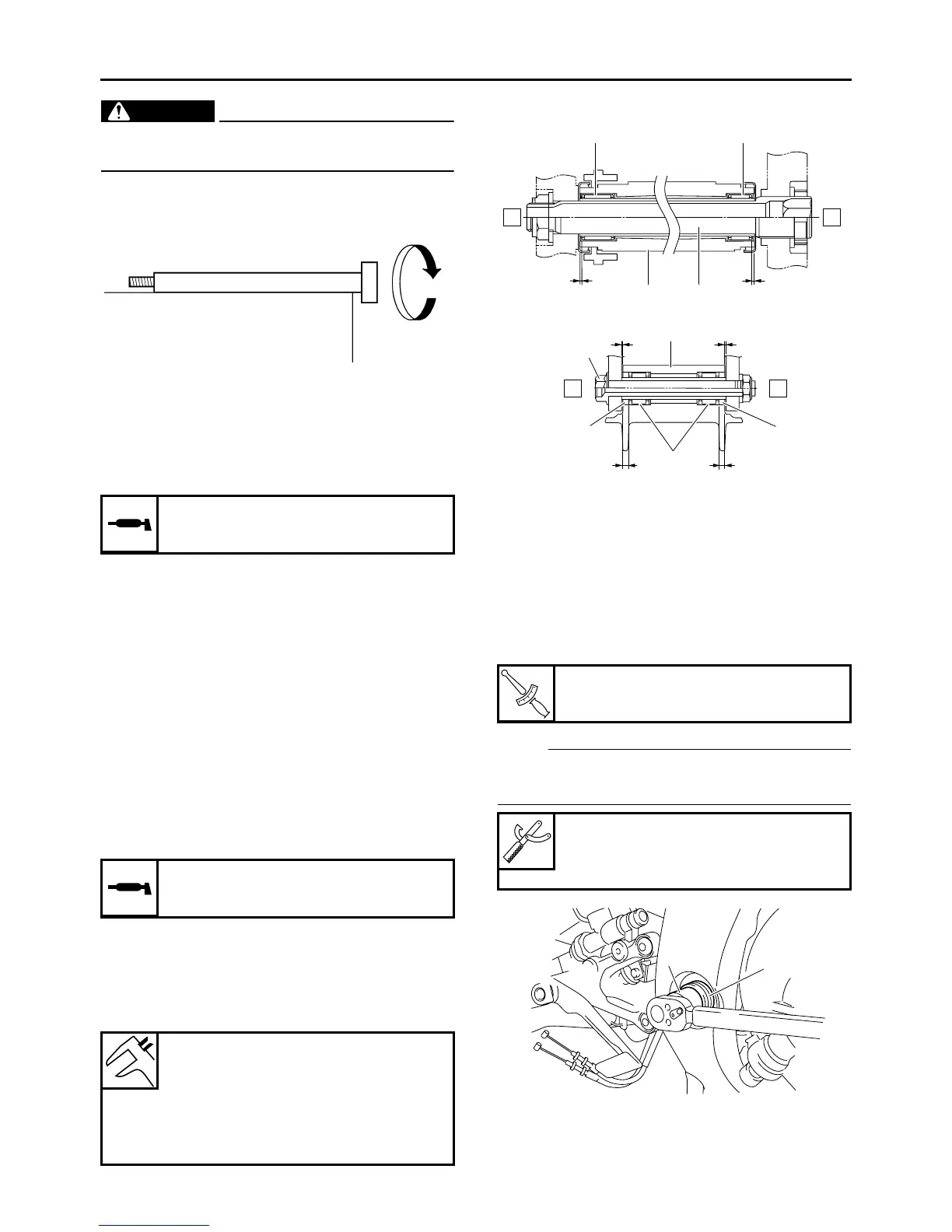

INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
• Spacers
• Dust covers
• Pivot shaft
2. Install:
• Bearing “1”
• Bearing “2”
• Bearings “3”
• Oil seals “4”
3. Install:
• Swingarm pivot shaft “1”
NOTE:
Tighten the swingarm pivot shaft with the damp-
er rod holder (24 mm) “2”.
4. Install:
• Swingarm pivot shaft ring nut “1”
Recommended cleaning solvent
Kerosene
Recommended lubricant
Lithium-soap-based grease
Installed depth of bearing “a”
0–1.0 mm (0–0.04 in)
Installed depth of bearing “b”
4.0 mm (0.16 in)
Installed depth of oil seal “c”
1.0 mm (0.04 in)
5. Swingarm
6. Swingarm pivot shaft
7. Bolt
A. Left side
B. Right side
T
R
.
.
Swingarm pivot shaft
16 Nm (1.6 m·kg, 11 ft·lb)
Damper rod holder (24 mm)
90890-01328
YM-01328
44
7
c5
3
b
a a5 6
2
1
b
c
A
B
A B
2
1
