FUEL TANK
7-4
ET2C01010
INSTALLING THE FUEL TANK

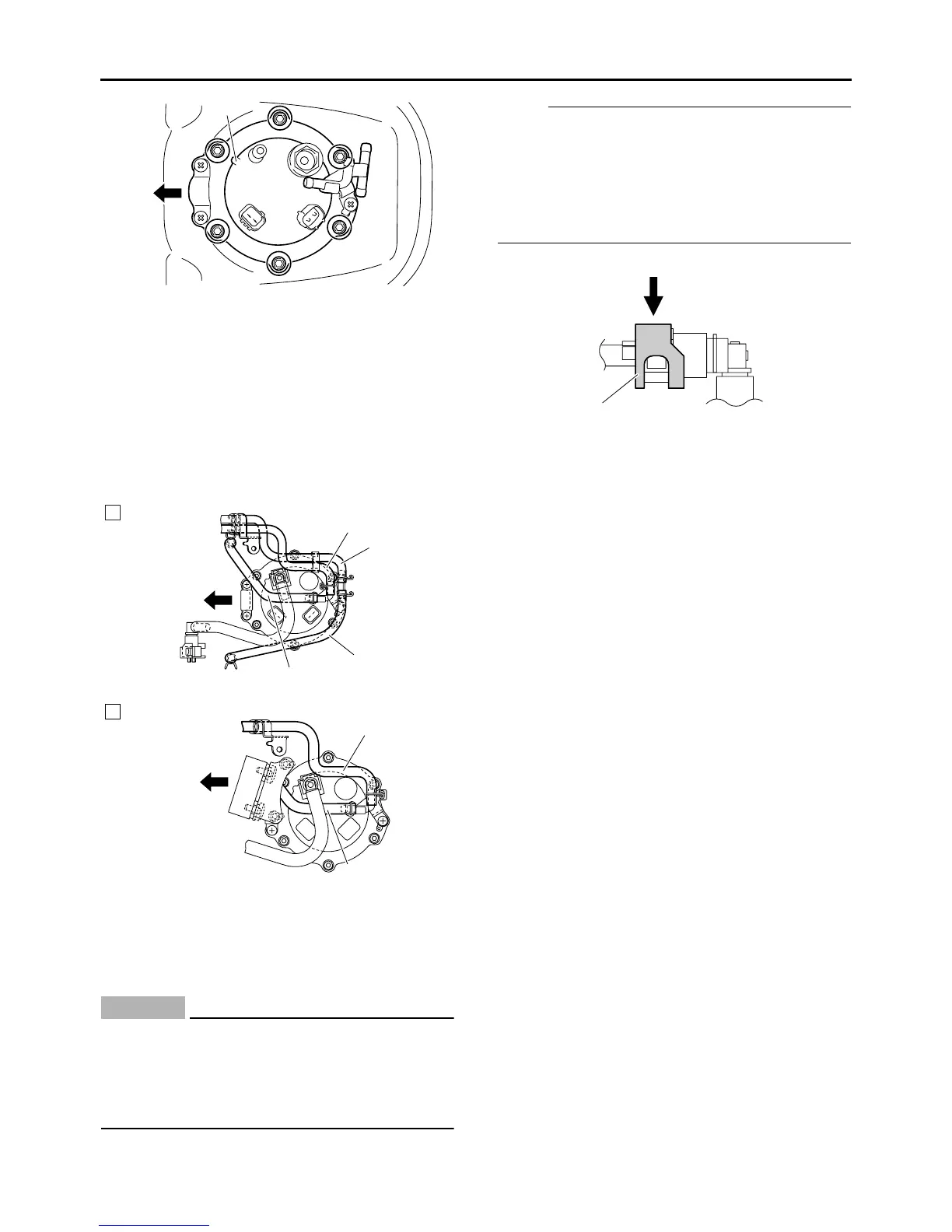

1. Connect:
• Fuel tank breather hose (fuel tank to hose
joint) “1” (except for California)
• Fuel tank overflow hose (fuel tank to hose
joint) “2”
• Fuel tank breather hose “3” (except for Cali-
fornia)
• Fuel tank overflow hose “4”
2. Connect:
• Fuel hose (fuel tank to primary injector rail)
CAUTION:
EC2C01017
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose connector cover on the fuel hose is in
the correct position, otherwise the fuel hose
will not be properly installed.
NOTE:
• Install the fuel hose securely onto the fuel
pump until a distinct “click” is heard.
• To install the fuel hose onto the fuel pump,
slide the fuel hose connector cover “1” on the
end of the hose in the direction of the arrow
shown.
A. Except for California
B. For California
