AIR FILTER CASE
7-7
ET2C01005
REMOVING THE FUEL HOSE (PRIMARY
INJECTOR FUEL RAIL TO SECONDARY
INJECTOR FUEL RAIL)
1. Remove:
• Fuel hose (primary injector fuel rail to second-
ary injector fuel rail)
WARNING
EW2C01008
Cover fuel hose connections with a cloth
when disconnecting them. Residual pres-
sure in the fuel lines could cause fuel to
spurt out when removing the hoses.
NOTE:

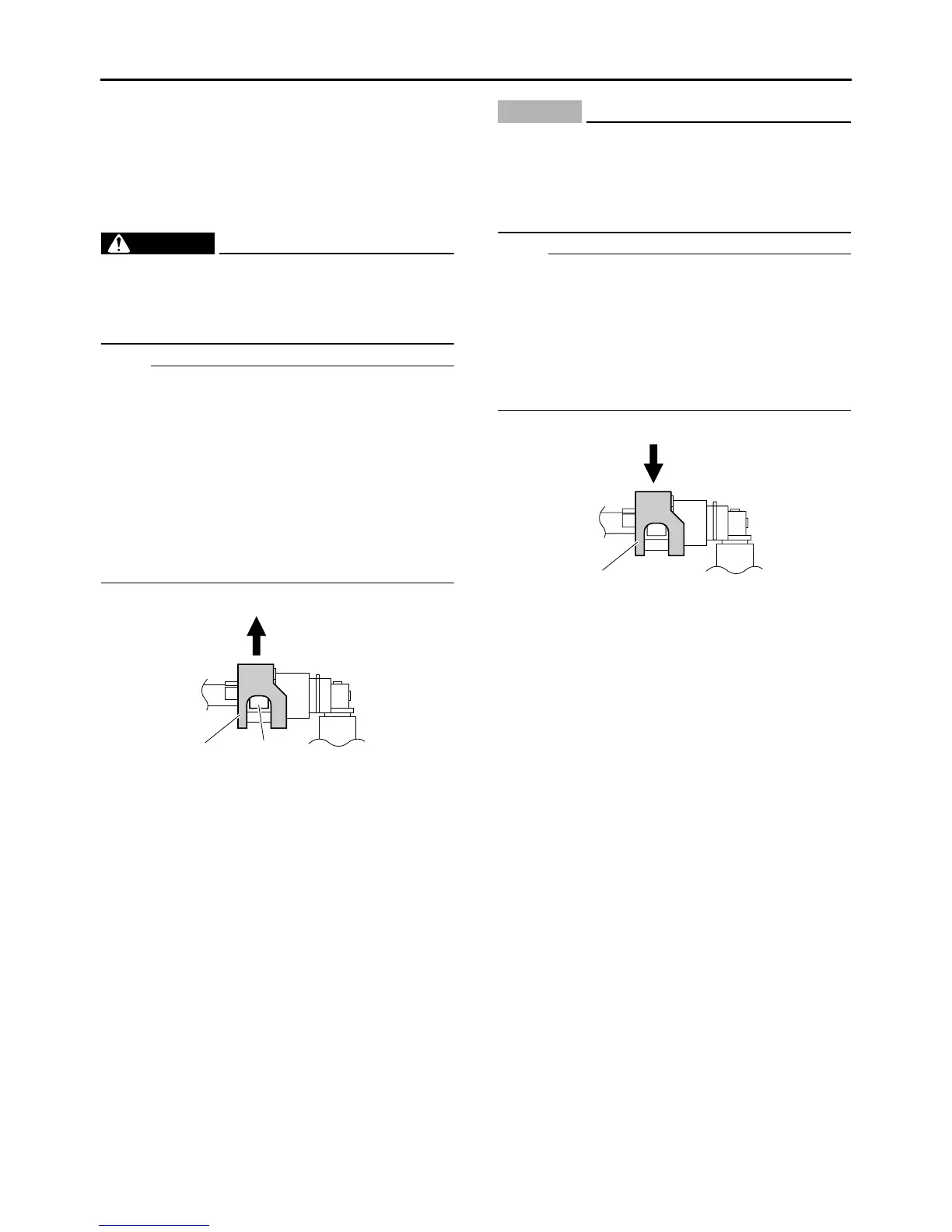

• To remove the fuel hose from the secondary
injector fuel rail, slide the fuel hose connector
cover “1” on the end of the hose in the direction
of the arrow shown, press the two buttons “2”
on the sides of the connector, and then remove
the hose.
• Remove the fuel hose manually without using
any tools.
• Before removing the hose, place a few rags in
the area under where it will be removed.
ET2C01017
CHECKING THE SECONDARY INJECTORS
1. Check:
• Injectors
Damage → Replace.
ET2C01006
INSTALLING THE FUEL HOSE (PRIMARY
INJECTOR FUEL RAIL TO SECONDARY
INJECTOR FUEL RAIL)
1. Connect:
• Fuel hose (primary injector fuel rail to second-
ary injector fuel rail)
CAUTION:
EC2C01017
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose connector cover on the fuel hose is in
the correct position, otherwise the fuel hose
will not be properly installed.
NOTE:
• Install the fuel hose securely onto the second-
ary injector fuel rail until a distinct “click” is
heard.
• To install the fuel hose onto the secondary in-
jector fuel rail, slide the fuel hose connector
cover “1” on the end of the hose in the direction
of the arrow shown.
1
2
1
