ENGINE REMOVAL
5-6
EAS23720

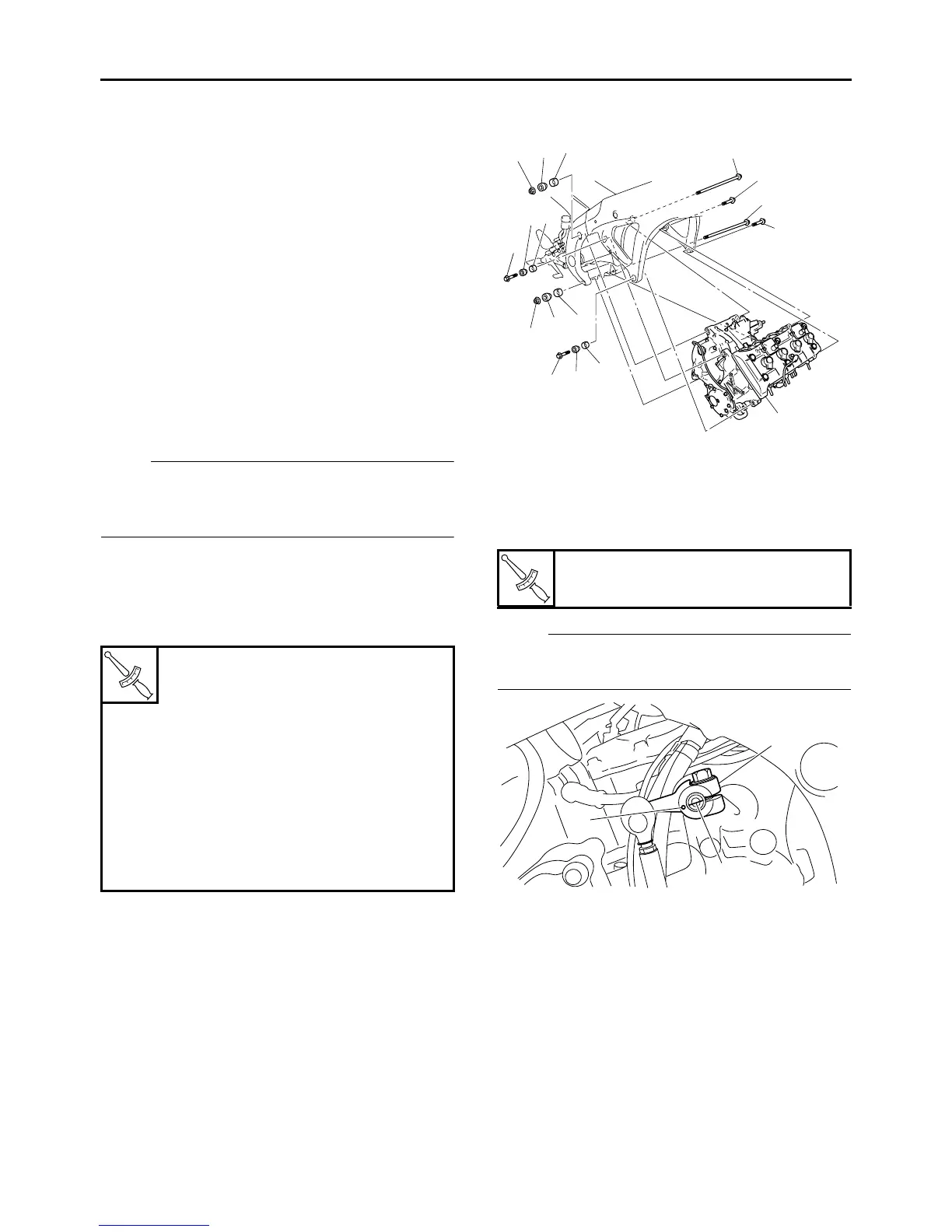

INSTALLING THE ENGINE
1. Install:
• Engine “1”
• Engine mounting bolt (rear lower side) “2”
• Engine mounting bolt (rear upper side) “3”
• Engine mounting collars (inside) “4”
• Engine mounting collars (outside) “5”
• Engine mounting nut (rear lower side) “6”
(temporarily tighten)
• Engine mounting nut (rear upper side) “7”
(temporarily tighten)
• Engine mounting bolts (front left side) “8”
(temporarily tighten)
• Engine mounting collars (inside) “9”
• Engine mounting collars (outside) “10”
• Engine mounting bolts (front right side) “11”
(temporarily tighten)
NOTE:
• Be sure to pass the drive axle through the drive
chain when installing the engine “1”.
• Do not fully tighten the bolts and nuts.
2. Tighten:
• Engine mounting nut (rear lower side) “6”
• Engine mounting nut (rear upper side) “7”
• Engine mounting bolts (front left side) “8”
• Engine mounting bolts (front right side) “11”
3. Install:
• Shift arm “1”
NOTE:
Install the shift arm “1” with its punch mark “a”
aligned with the notch “b” in end of the shift shaft.
T
R
.
.
Engine mounting nut (rear lower
side)
68 Nm (6.8 m·kg, 49 ft·lb)
Engine mounting nut (rear upper
side)
68 Nm (6.8 m·kg, 49 ft·lb)
Engine mounting bolt (front left
side)
45 Nm (4.5 m·kg, 32 ft·lb)
Engine mounting bolt (front right
side)
45 Nm (4.5 m·kg, 32 ft·lb)
T
R
.
.
Shift arm bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
11
10
9
6
5
4
7
5
4
11
1
10
9
8
8
3
2
1
b
a
