FRONT WHEEL
4-9

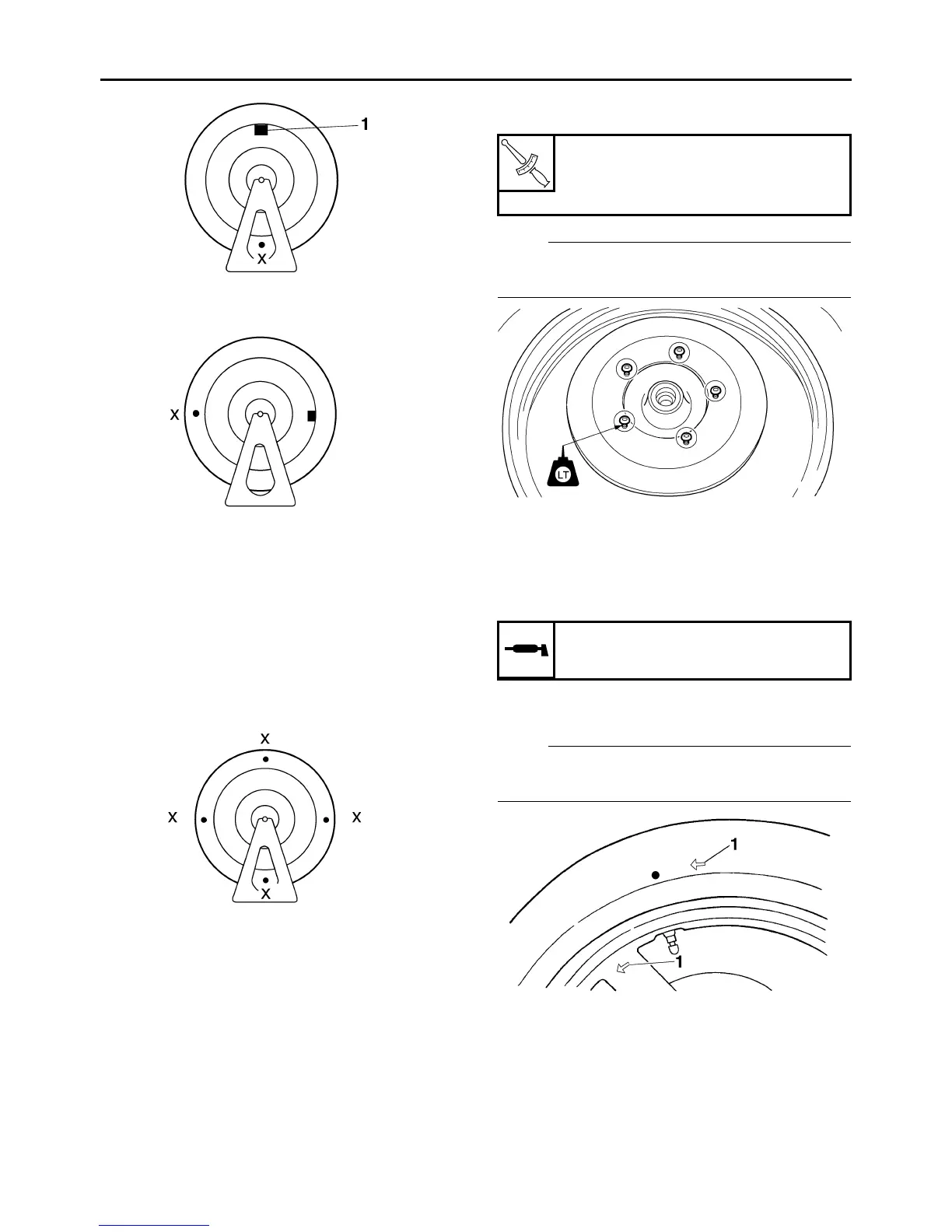

b. Turn the front wheel 90° so that the heavy
spot is positioned as shown.
c. If the heavy spot does not stay in that posi-
tion, install a heavier weight.
d. Repeat steps (b) and (c) until the front wheel
is balanced.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
4. Check:
• Front wheel static balance
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Turn the front wheel and make sure it stays at
each position shown.
b. If the front wheel does not remain stationary
at all of the positions, rebalance it.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
ET2C01002
CHECKING THE FRONT BRAKE DISCS
Refer to “CHECKING THE FRONT BRAKE
DISCS” on page 4-22.
EAS22000
INSTALLING THE FRONT WHEEL (FRONT
BRAKE DISCS)
The following procedure applies to both of the
brake discs.
1. Install:
• Front brake disc
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Front brake discs
Refer to “CHECKING THE FRONT BRAKE
DISCS” on page 4-22.
3. Lubricate:
• Oil seal lips
4. Install:
• Front wheel
NOTE:
Install the tire and wheel with the mark “1” point-
ing in the direction of wheel rotation.
5. Install:
• Front wheel axle
• Front wheel axle bolt
• Front wheel axle pinch bolts
T
R
.
.
Front brake disc bolt
18 Nm (1.8 m·kg, 13 ft·lb)
LOCTITE
®
Recommended lubricant
Lithium-soap-based grease
To Next Page
