REAR WHEEL
4-14
EAS22040
REMOVING THE REAR WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
rear wheel is elevated.

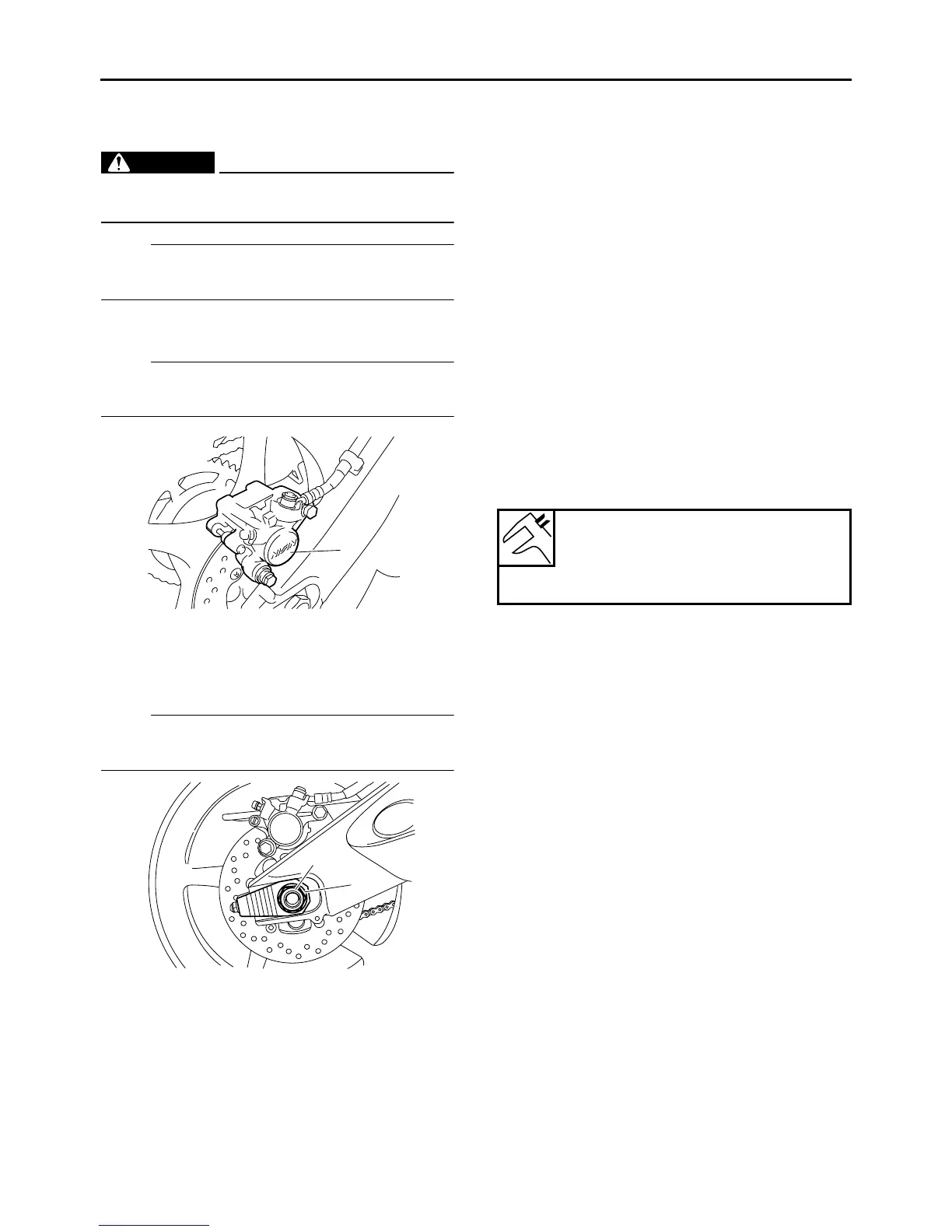

2. Remove:
• Rear brake caliper “1”
NOTE:
Do not depress the brake pedal when removing
the brake caliper.
3. Remove:
• Rear wheel axle nut “1”
• Rear wheel axle “2”
• Rear wheel
NOTE:
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
EAS22080
DISASSEMBLING THE REAR WHEEL
1. Remove:
• Oil seals
• Wheel bearings
Refer to “DISASSEMBLING THE FRONT
WHEEL” on page 4-7.
EAS22090
CHECKING THE REAR WHEEL
1. Check:
• Rear wheel axle
• Rear wheel
• Wheel bearings
• Oil seals
Refer to “CHECKING THE FRONT WHEEL”
on page 4-7.
2. Check:
• Tire
• Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-32 and “CHECKING THE WHEELS” on
page 3-33.
3. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-7.
ET2C01024
CHECKING THE REAR BRAKE CALIPER
BRACKET
1. Check:
• Rear brake caliper bracket
Cracks/damage → Replace.
EAS22110
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub
Cracks/damage → Replace.
• Rear wheel drive hub dampers
Damage/wear → Replace.
EAS22120
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• Rear wheel sprocket
More than 1/4 tooth “a” wear → Replace the
rear wheel sprocket.
Bent teeth → Replace the rear wheel sprock-
et.
1
1
2
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
To Next Page
