Yamaha YZFR6V User Manual

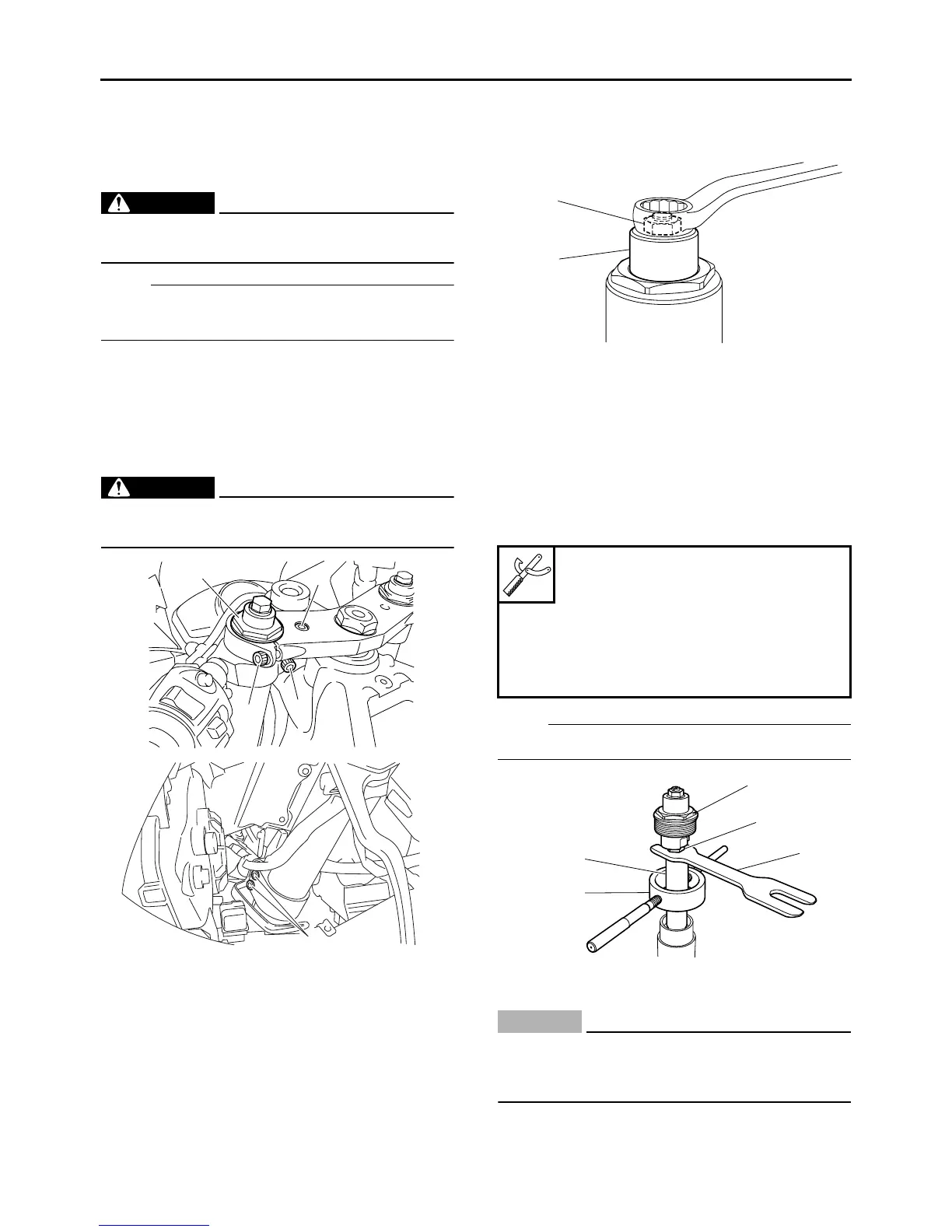

FRONT FORK
4-47
EAS22970
REMOVING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
2. Loosen:
• Upper bracket pinch bolt “1”
• Handlebar pinch bolt “2”
• Handlebar bolt “3”
• Cap bolt “4”
• Lower bracket pinch bolts “5”
WARNING
EWA13640
Before loosening the upper and lower brack-
et pinch bolts, support the front fork leg.
EAS22990
DISASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Position the collar “1” as shown in the illustra-
tion by turning the spring preload adjusting
bolt “2” counterclockwise until it stops.
2. Remove:
• Cap bolt “1”
(from the damper adjusting rod)
• Spacer “2”
• Nut “3”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Press down on the spacer with the fork spring
compressor “4”.
b. Install the rod holder “5” between the nut “3”
and the spacer “2”.
NOTE:
Use the side of the rod holder that is marked “B”.
c. Hold the spring preload adjusting bolt “6” and
loosen the nut “3”.
CAUTION:
EC2C01011
When loosening the nut “3”, be sure not to
break the projections “a” on the collar “7” of
the cap bolt “1”.
1
2
3
4
5
Fork spring compressor
90890-01441
YM-01441
Rod holder
90890-01434
Damper rod holder double ended
YM-01434
2
1
2
4
1
3
5
