WATER PUMP
6-9
EAS26500
WATER PUMP

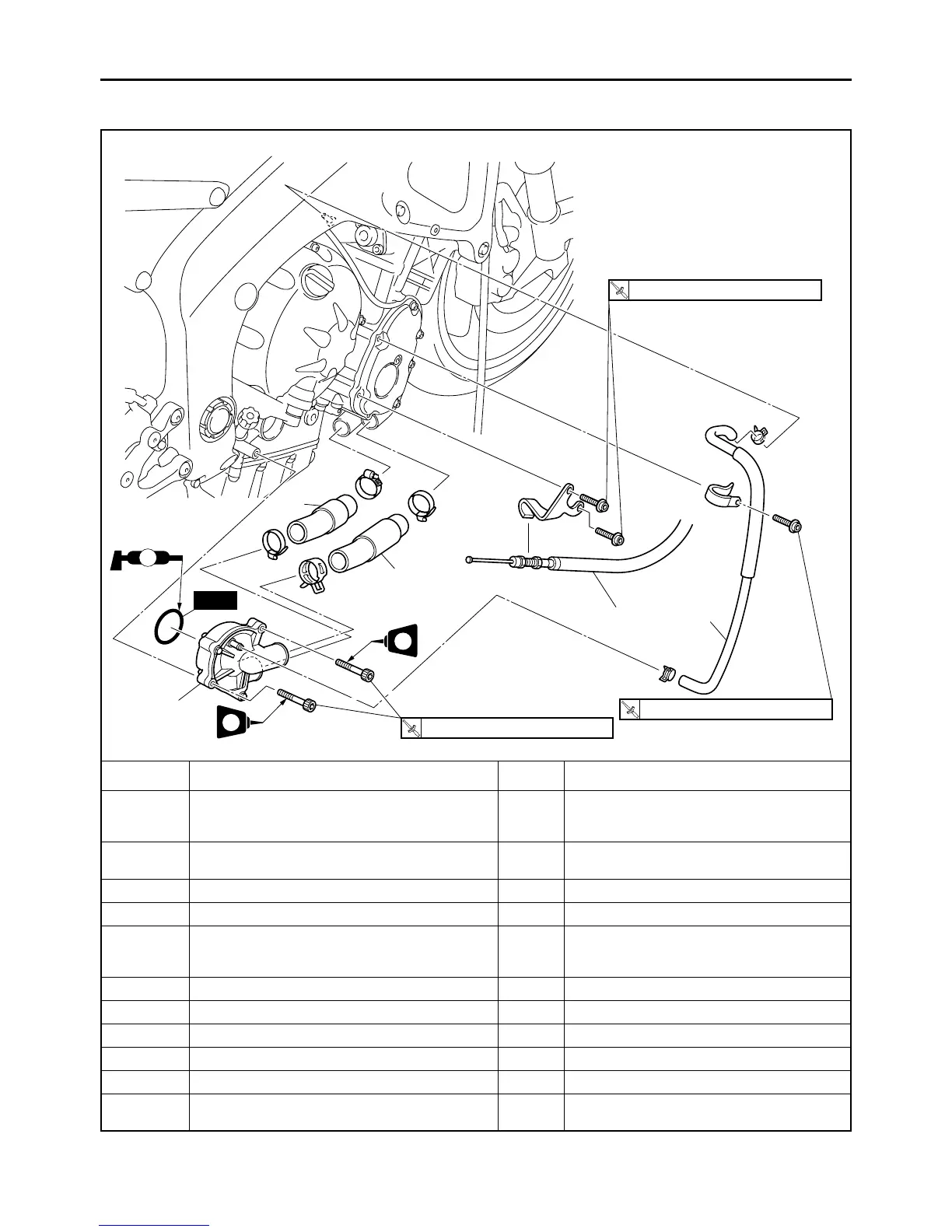

Removing the water pump
Order Job/Parts to remove Q’ty Remarks
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
Right bottom cowling
Refer to “GENERAL CHASSIS” on page
4-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Canister (for California only) Refer to “THROTTLE BODIES” on page 7-8.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-19.
1 Clutch cable 1 Disconnect.
2 Water pump inlet hose 1
3 Water pump outlet hose 1
4 Water pump breather hose 1
5 Water pump assembly 1
For installation, reverse the removal proce-
dure.
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
New
LS
LT
LT
LT
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
5
3
2
1
4
To Next Page
