FEATURES
1-7
ET2C01020
INSTRUMENT FUNCTIONS
Multi-function meter unit
WARNING
EW2C01003
Be sure to stop the vehicle before making
any setting changes to the multi-function
meter unit.
The multi-function meter unit is equipped with
the following:
• a speedometer (which shows the riding speed)
• a tachometer (which shows engine speed)
• an odometer (which shows the total distance
traveled)
• two tripmeters (which show the distance trav-
eled since they were last set to zero)
• a fuel reserve tripmeter (which shows the dis-
tance traveled since the fuel level warning light
came on)
• a stopwatch
• a clock
• a coolant temperature display
• an air intake temperature display
• a self-diagnosis device
• a display brightness and shift timing indicator
light control mode
NOTE:
• Be sure to turn the key to “ON” before using the
“SELECT” and “RESET” buttons.
• To switch the speedometer and odometer/trip-
meter displays between kilometers and miles,
press the “SELECT” button for at least one
second.
Tachometer
The electric tachometer allows the rider to mon-
itor the engine speed and keep it within the ideal
power range.
When the key is turned to “ON”, the tachometer
needle will sweep once across the r/min range
and then return to zero r/min in order to test the
electrical circuit.
CAUTION:
EC2C01020
Do not operate the engine in the tachometer
red zone.
Red zone: 17500 r/min and above
Clock mode
Turn the key to “ON”.

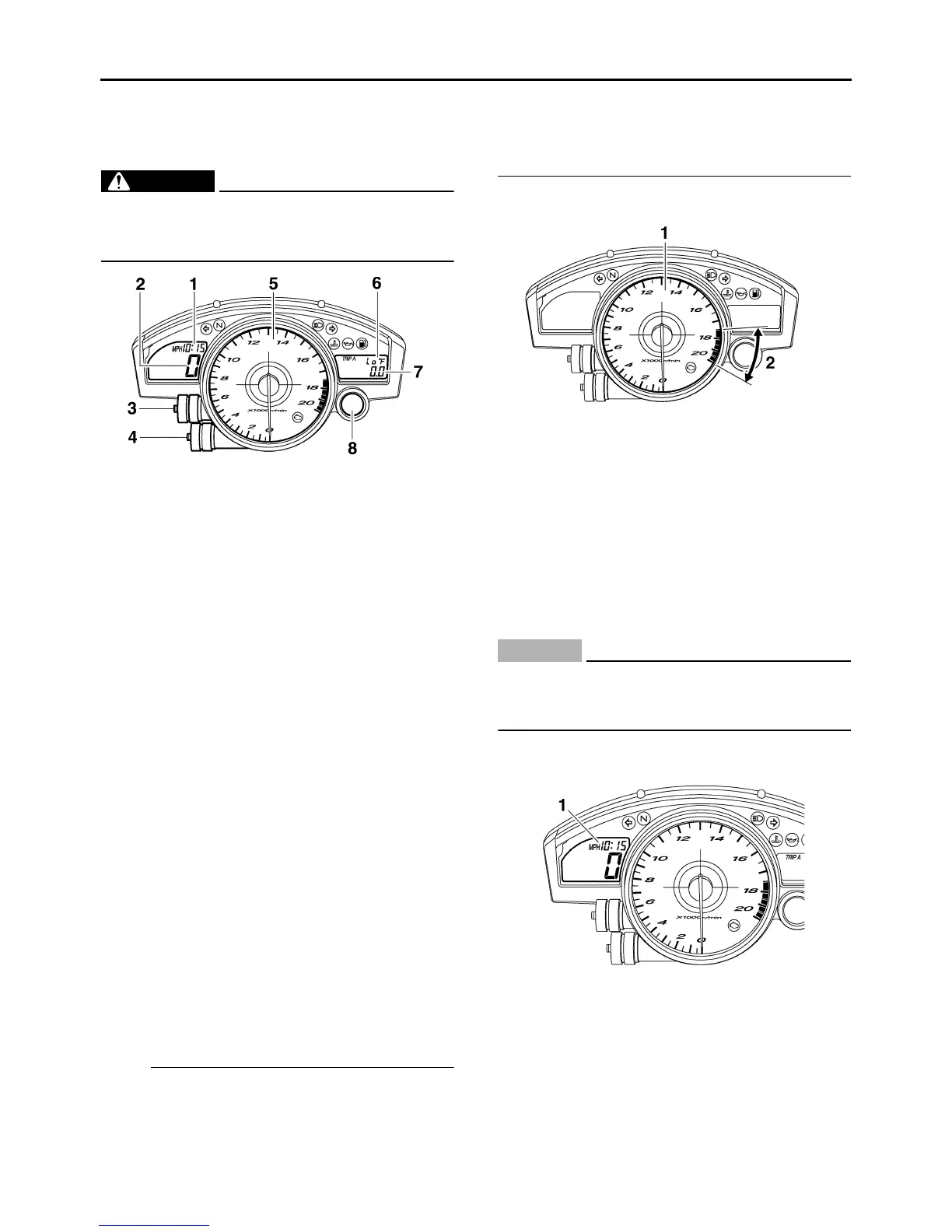

1. Clock
2. Speedometer
3. “SELECT” button
4. “RESET” button
5. Tachometer
6. Coolant temperature display/air intake
temperature display
7. Odometer/tripmeters/fuel reserve
tripmeter/stopwatch
8. Shift timing indicator light
1. Tachometer
2. Tachometer red zone
1. Clock
