SHIFT SHAFT
5-47
EAS25410
SHIFT SHAFT

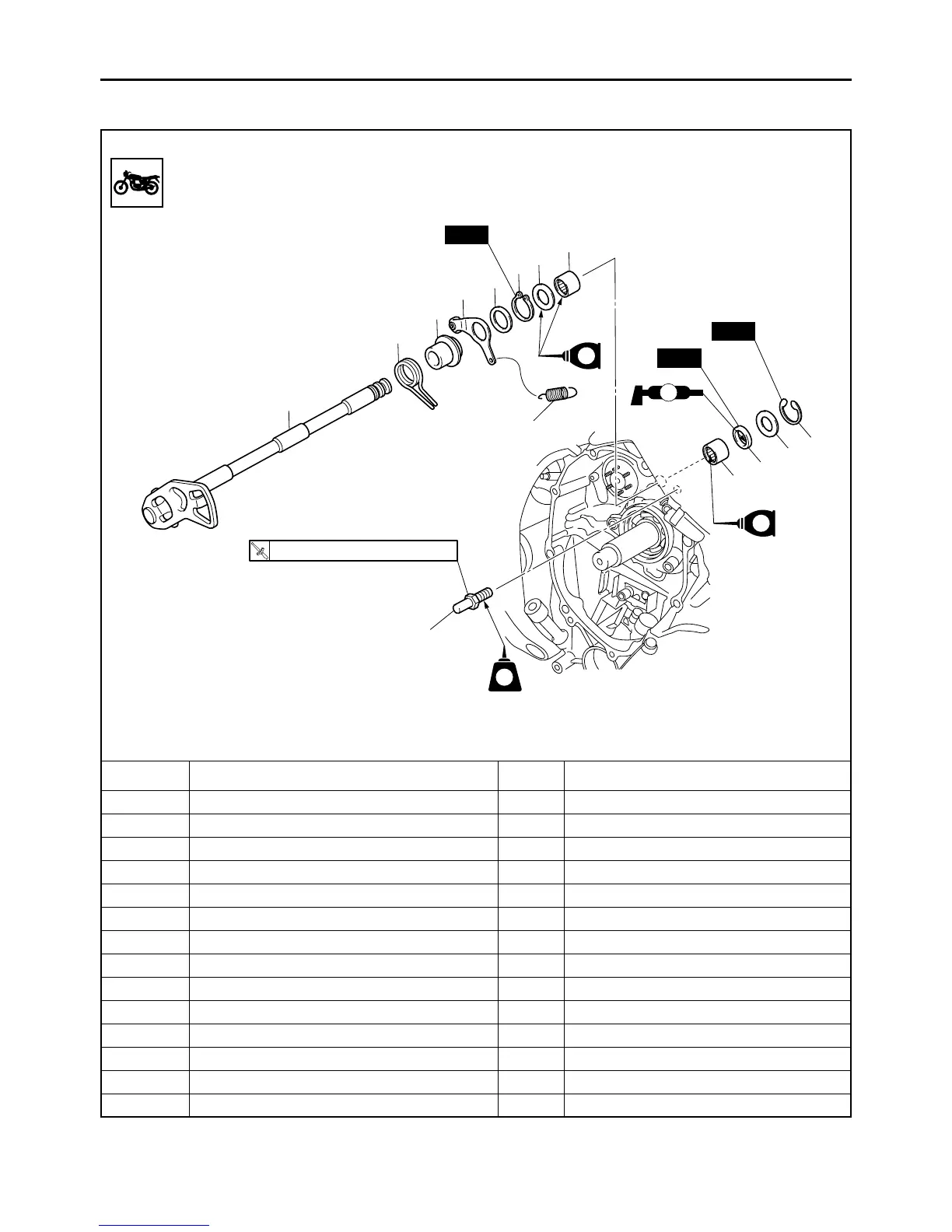

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Shift arm Refer to “ENGINE REMOVAL” on page 5-1.
Clutch housing Refer to “CLUTCH” on page 5-37.
1 Circlip 1
2 Washer 1
3 Shift shaft 1
4 Washer 1
5 Circlip 1
6 Washer 1
7 Stopper lever 1
8 Stopper lever spring 1
9Spacer 1
10 Shift shaft spring 1
11 Shift shaft spring stopper 1
12 Oil seal 1
3
10
9
7
6
5
4
13
13
12
2
1
8
11
LS
New
New
New
LT
E
E
T
R
.
.
22 Nm (2.2 m
•
kg, 16 ft
•
Ib)
