Yamaha YZFR6V User Manual

CHASSIS
3-30
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲

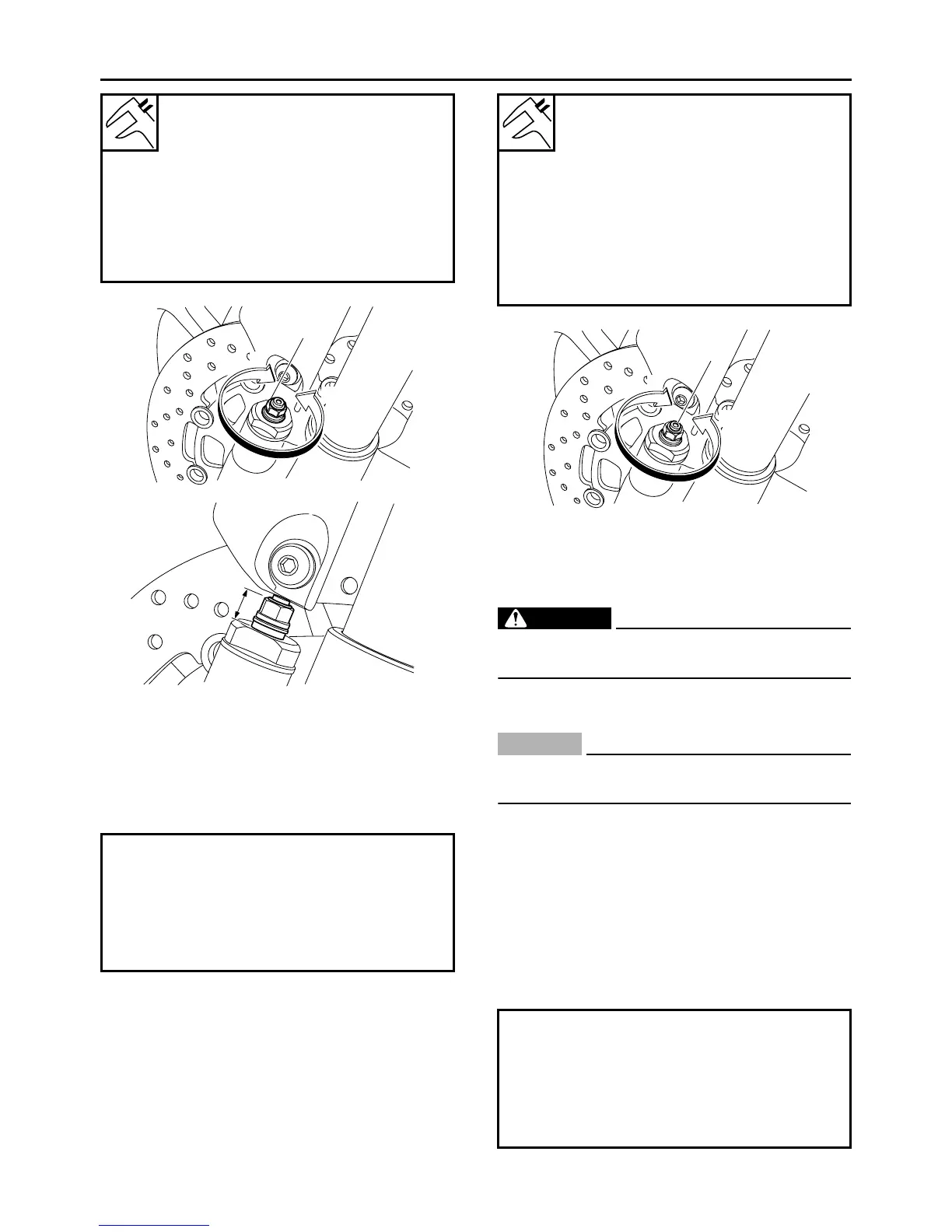

2. Adjust:
• Compression damping (slow compression
damping)
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21610
ADJUSTING THE REAR SHOCK ABSORBER
ASSEMBLY
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Spring preload
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Adjust the spring preload with the special
wrench and wrench handle included in the
owner’s tool kit.
b. Turn the adjusting ring “1” in direction “a” or
“b”.
c. Align the desired position on the adjusting
ring with the position indicator “2”.
Compression damping adjusting
positions (fast compression damp-
ing)
Minimum
Distance “c” = 8 mm (0.31 in)
Standard
Distance “c” = 10 mm (0.39 in)
Maximum
Distance “c” = 12 mm (0.47 in)
Direction “a” (turn in)
Compression damping is increased
(suspension is harder).
Direction “b” (turn out)
Compression damping is decreased
(suspension is softer).
1
a
b
c
Compression damping adjusting
positions (slow compression
damping)
Minimum
16 click(s) out*
Standard
10 click(s) out*
Maximum
1 click(s) out*
* With the adjusting bolt fully turned in
Direction “a”
Spring preload is increased (suspen-
sion is harder).
Direction “b”
Spring preload is decreased (suspen-
sion is softer).
1
a
b
