ELECTRICAL COMPONENTS
8-99
d. Check the fuel pump operation.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS28370

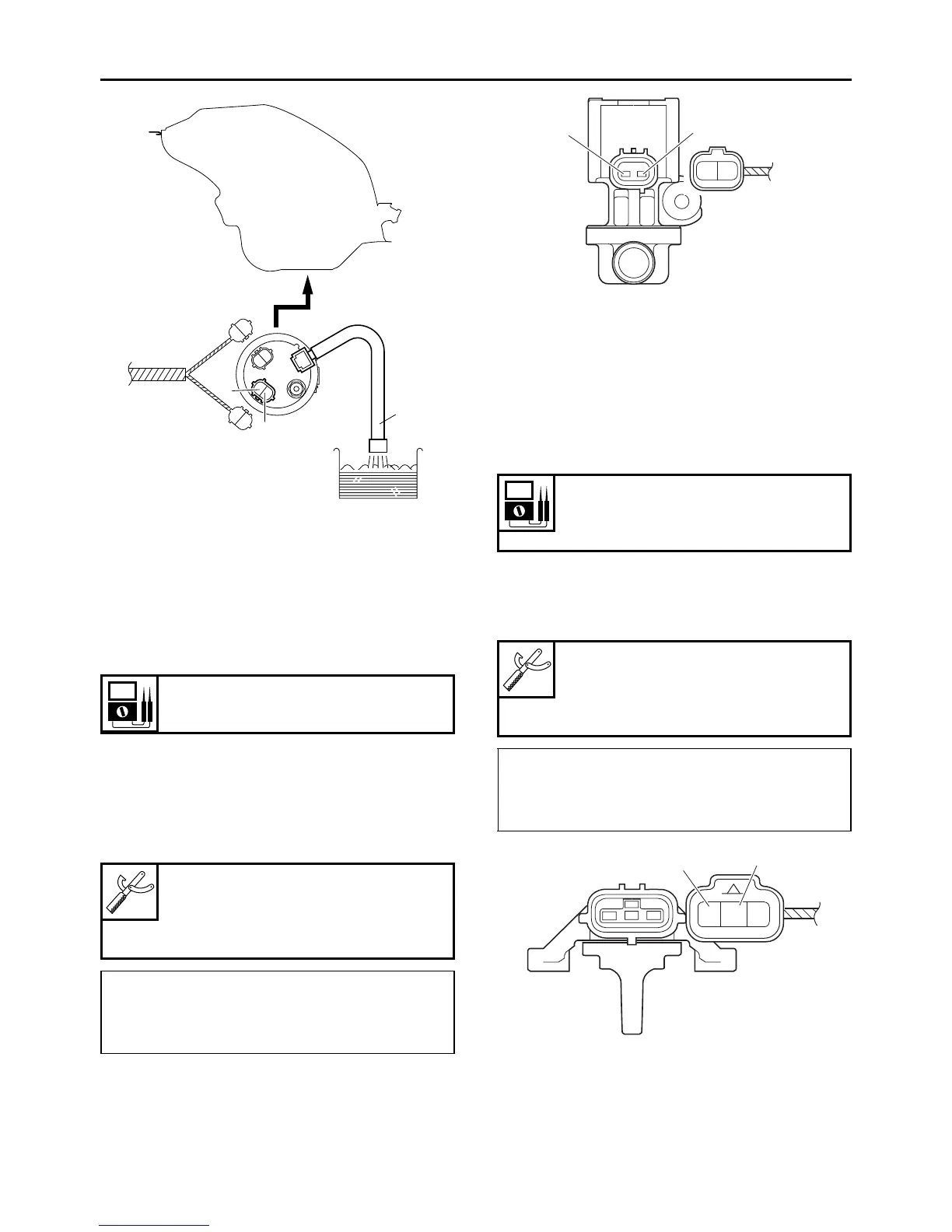

CHECKING THE AIR INDUCTION SYSTEM
SOLENOID
1. Check:
• Air induction system solenoid resistance
Out of specification → Replace.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Disconnect the air induction system solenoid
coupler from the air induction system sole-
noid.
b. Connect the pocket tester (Ω × 1) to the air in-
duction system solenoid terminal as shown.
c. Measure the air induction system solenoid re-
sistance.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28380
CHECKING THE ATMOSPHERIC PRESSURE
SENSOR
1. Check:
• Atmospheric pressure sensor output voltage
Out of specification → Replace.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (DC 20 V) to the at-
mospheric pressure sensor coupler as
shown.
b. Turn the main switch to “ON”.
c. Measure the atmospheric pressure sensor
output voltage.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Solenoid resistance
18–22 Ω at 20 °C (68 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
brown/red “1”
• Negative tester probe →
red/white “2”
R/L
B
B
G/W
3
2
1
Atmospheric pressure sensor
output voltage
3.15–4.15 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
pink “1”
• Negative tester probe →
black/blue “2”
1
2
Br/R
R/W
P
B/L
L
1
2
