AMX MIO-R4 User Manual

Appendix B: G4 PanelBuilder
235
T
PDesign4 Touch Panel Design Software (v2.10 or higher)
Element Specific Conventions (click to access)
 Splash Elements - This element is a popup that can contain an image, i.e., corporate logo.
 Consists of at least one popup and can contain multiple popups.
 Cannot contain pages.
Element Specific Conventions (click to access)
 Device Elements - This element is the actual device used. For reference, consult AMX
templates where we list the most commonly used devices.
 Consists of one page and can contain multiple popups.
 Only one Device element can be displayed at a time.
 Element Specific Conventions (click to access)
 Feature Elements - This element resembles the Device element. However, there can only be
one Feature element in a panel design, i.e., the "Clean Panel" feature.
 Consists of one page and can contain multiple popups.
 Only one Feature element can be displayed at a time.
 Element Specific Conventions (click to access)
 Sub-Feature Elements - This element represents the "universal" features that appear on many
pages, i.e., "volume."
 Consists of at least one popup and can contain multiple popups.
 Cannot contain pages.
 Element Specific Conventions (click to access)
Rules for Navigating A Template
In addition to the template requirements and required elements there are rules for navigating the
templates and template wide conventions you need to heed.
When navigating to a Device, Feature or Placeholder element from a Navigation element:
 Hide all popups on the page for that element.
 Perform the standard page flip to the page for that element.

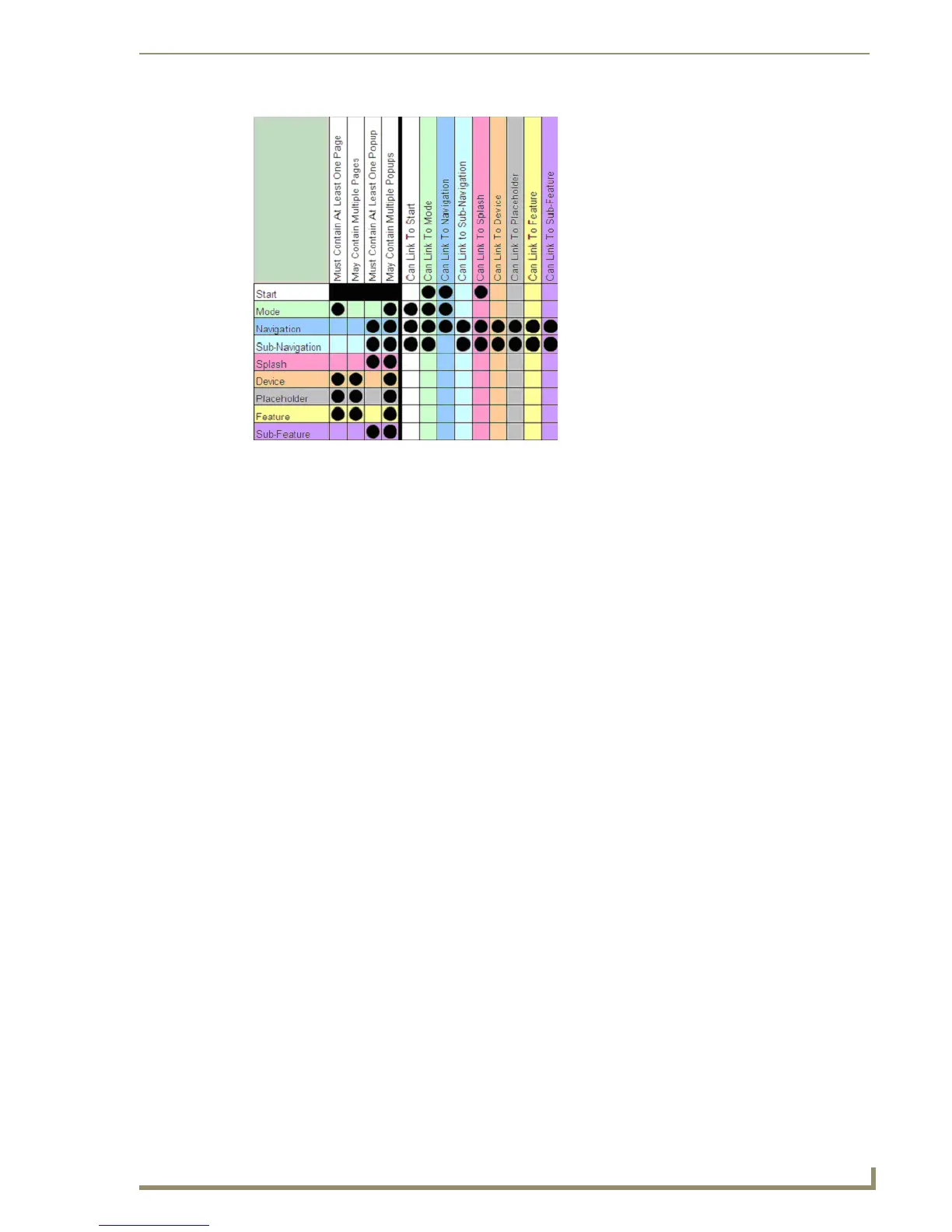

FIG. 94
G4 PanelBuilder - Template element rules

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
