9-9
HRX217HYA • HRX217HZA FLYWHEEL/IGNITION COIL
INSTALLATION
Make sure the flywheel taper is free of dirt, oil, grease and
other foreign material before installation.
Also, make sure there is no foreign material on the magnets.
1. Be sure the woodruff key is set in the keyway properly.
2. Install the flywheel.
3. Apply engine oil to the flywheel nut threads.
4. Holding the flywheel with a commercially available strap
wrench, tighten the 14 mm special nut to the specified
torque.
TORQUE: 75 N•m (55 ft-lb)
5. Install the ignition coil (P. 9 -2
).
6. Install the fan cover (P. 7 -3
) and top cover (P. 7 - 1 ).

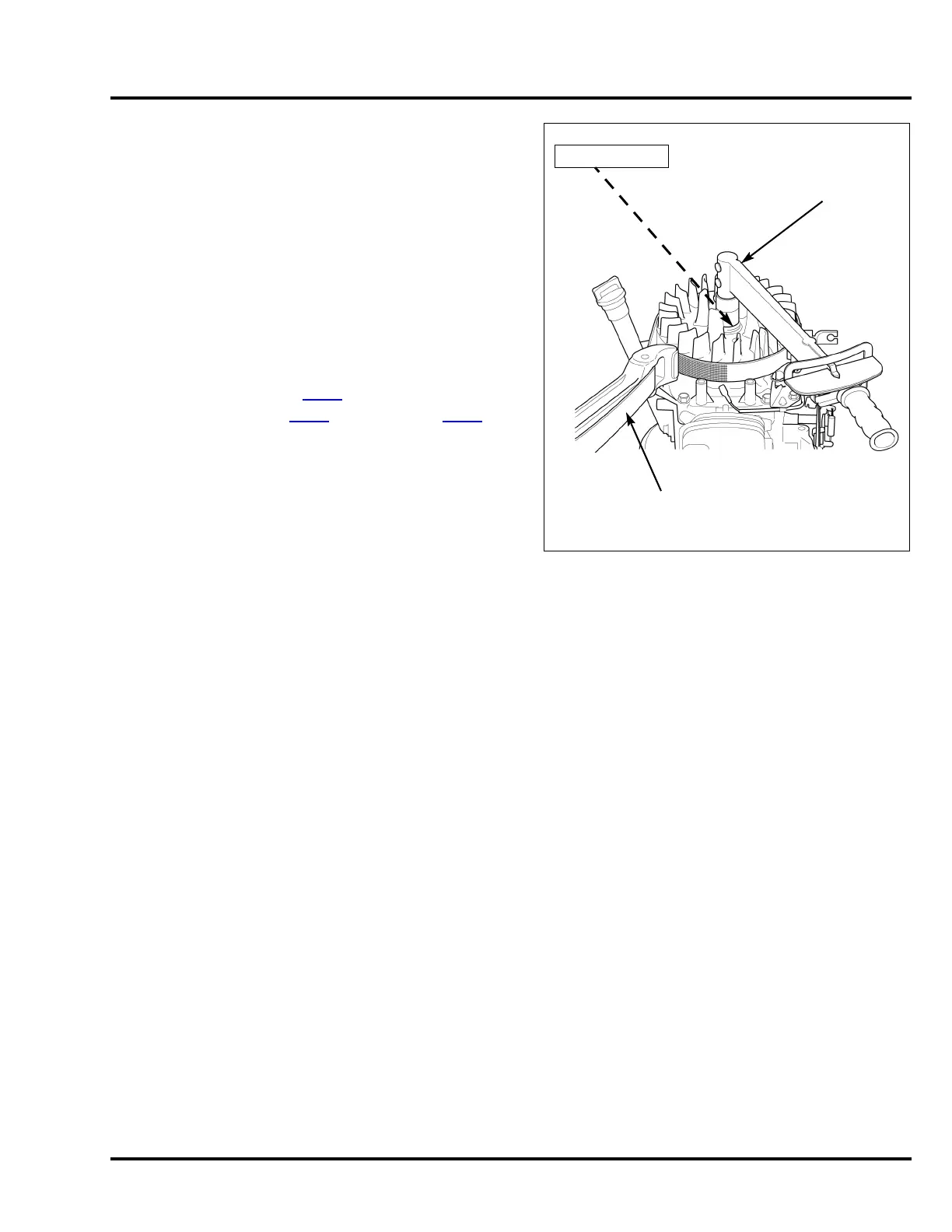

SPECIAL NUT, 14 mm
STRAP WRENCH
(commercially available)
75 N•m (55 ft-lb)
TORQUE WRENCH
(commercially available)
