8-15
HRX217HYA • HRX217HZA FUEL SYSTEM

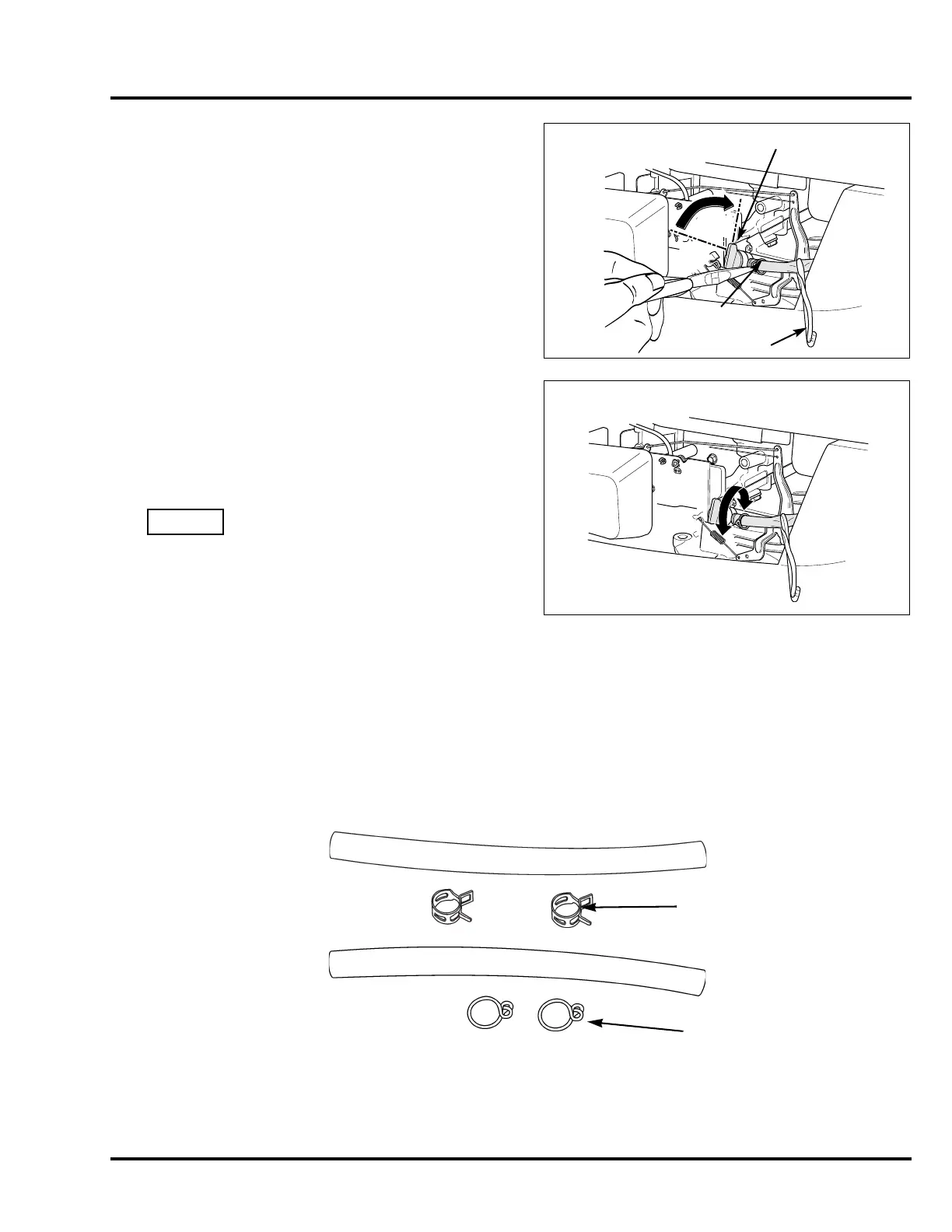

4. FUEL TUBE
REMOVAL/INSTALLATION
1. Turn the fuel valve to the OFF position, and install a
fuel tube clamp on the fuel tube.
Use pliers to open the fuel clip, and slide the fuel clip
up the tube.
2. Rotate the fuel tube to help release the tube from the
fuel valve fitting.
3. Gently pull the fuel tube from the fuel valve. Do not pry
against the fuel valve with a screwdriver or other tool
when removing the fuel tube.
If the fuel tube is pried off the fuel valve with a tool, the
fuel valve may become damaged.
4. Connect the fuel tube to the fuel valve.
5. Position the fuel tube clip over the fuel valve fitting.
6. Remove the fuel tube clamp, and return the fuel valve
to the ON position.
7. Check for fuel leaks and repair as necessary.
FUEL TUBE AND CLAMP CHANGES
All Honda Power Equipment manufactured after January 1, 2009, uses low-permeable fuel line. The low-permeable
fuel line is easy to spot by the CARB Executive Order (Q-07-018 EPA-15) printed on it.
FUEL TUBE CLAMP
FUEL CLIP
FUEL VALVE
Q
-
0
7
-
0
1
8
E
P
A
-
1
5
Q
-
0
7
-
0
1
8
E
P
A
-
1
5
Q
-
0
7
-
0
1
8
E
P
A
-
1
5
"D" STYLE FUEL CLAMP
WIRE STYLE FUEL CLAMP
Use the same clamp style
as originally equipped.
