FLYWHEEL/IGNITION COIL HRX217HYA • HRX217HZA
FLYWHEEL REMOVAL
REMOVAL
1. Remove the top cover and fan cover (P. 7 - 3 ).
2. Remove the ignition coil (P. 9 - 2
).
3. Holding the flywheel with a commercially available strap
wrench, remove the 14 mm special nut.
N OTICE
Inserting a rod or screwdriver in the fan blades can
damage the blades or the aluminum casting projections.
4. Position a commercially available 6-inch flywheel puller
on the flywheel with one of the puller jaws under the
magnets (at the PULLER marks).
Set a shop towel or equivalent cloth between the
flywheel and puller.
Tighten the flywheel puller and then tap the end of the
puller with a heavy brass hammer to remove the
flywheel.
N OTICE
Do not use an impact wrench when removing the
flywheel. The flywheel is aluminum and is likely to break
if too much force is applied.

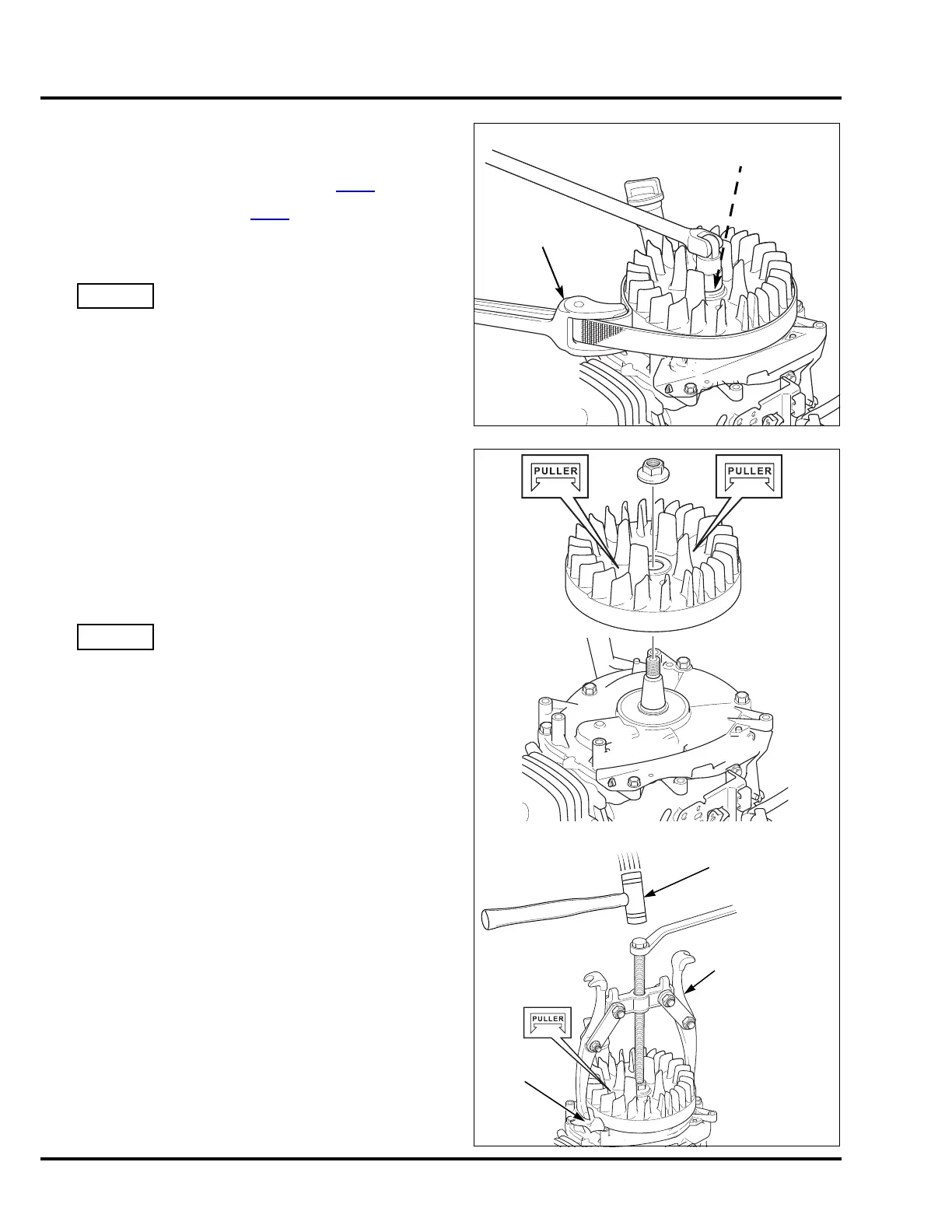

SPECIAL NUT,
14 mm
STRAP WRENCH
(commercially available)
SHOP TOWEL
FLYWHEEL
PULLER, OTC-1035
(commercially
available)
BRASS HAMMER
