12-9
HRX217HYA • HRX217HZA VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS

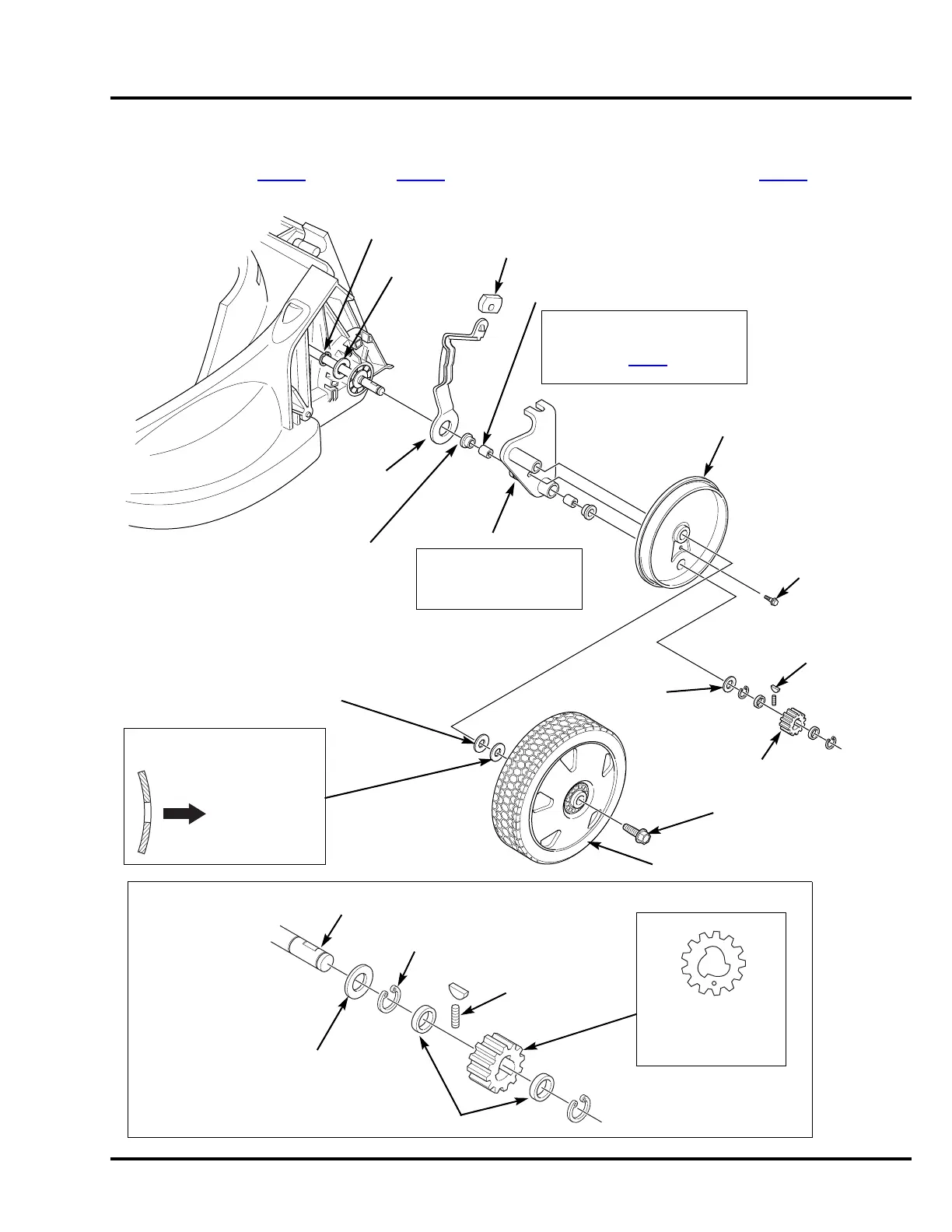

5. REAR WHEELS
Remove the shutter (P. 12-2), rear scroll (P. 1 2- 5 ), and drive belt from the transmission pulley (P. 4-10) before
removing the adjuster arm(s).
CIRCLIP,
22 mm
WASHER,
22 mm
DUST SEAL (2)
WHEEL COVER
SHOULDER BOLT,
5 x 12 mm
RATCHET KEY
PINION GEAR
WHEEL BOLT, 8 x12 mm
WASHER,
13 x 2 x 1 mm
ADJUSTER ARM (L)
Apply some grease to
outside of the adjuster arm
where it fits into the cutter
housing.
WHEEL WASHER
REASSEMBLY:
Install the washer as shown.
WHEEL SIDE
REAR WHEEL (L)
PINION GEAR
ORDER OF
ASSEMBLY
THRUST WASHER, 13 mm
CIRCLIP, 13
mm (2)
PINION GEAR (13 tooth)
Install with the punch
mark facing:
Left – inside
Right – outside
SPACER,
3 mm THICK (2)
WASHER
ADJUSTER
PLATE
ADJUSTER
GRIP



BUSHING (2)
Inspect for wear and apply Honda
Marine extreme pressure NLGI #2
GC-LB grease to the inside of the
bushings. See P. 3-14
for complete
removal/installation.
SERVICE BULLETIN #108
