Honda HRX217K6HYA User Manual

2-27
HRX217HYA • HRX217HZA SERVICE INFORMATION

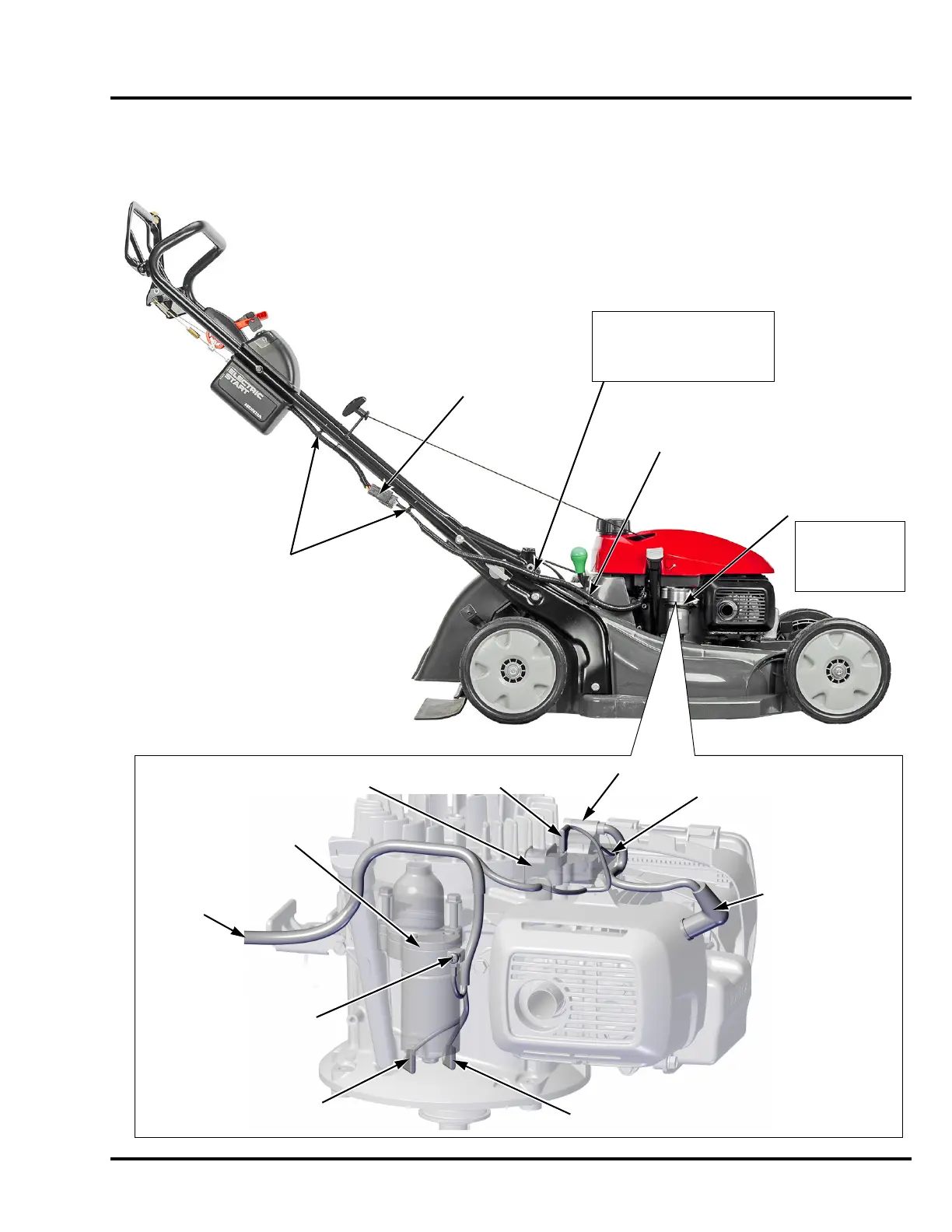

10. MAIN HARNESS ROUTING
HZA TYPE ONLY
HARNESS BAND (2)
HARNESS BAND
Route the harness outside the
right handle stay and secure
the band into the hole in
handle stay.
HARNESS BAND
STARTER MOTOR
POSITIVE TERMINAL
(WHITE WIRE)
IGNITION COIL GROUND
WIRE (BLACK)
STARTER
HARNESS
SPARK PLUG WIRE
CHARGE COIL WIRE
(WHITE WIRE)
CHARGE COIL
(built into ignition coil)
IGNITION COIL
KEY SWITCH AND
BATTERY GROUND
(BLACK WIRE)
STARTER MOTOR
NEGATIVE TERMINAL
(BLACK WIRE)
STARTER MOTOR
BATTERY CHARGER
CONNECTOR
CABLE TIE
Secure the three
starter motor
wires to the
starter motor.
