SERVICE INFORMATION HRX217HYA • HRX217HZA

3. SERIAL NUMBER LOCATIONS

The frame serial number is located on the rear of the mower deck between the Clip Director knob and rear discharge

chute.

The engine serial number is located on the crankcase, below the fuel valve on the left-hand side of the engine.

Refer to the frame serial number or engine serial number when ordering parts and when making technical inquiries.

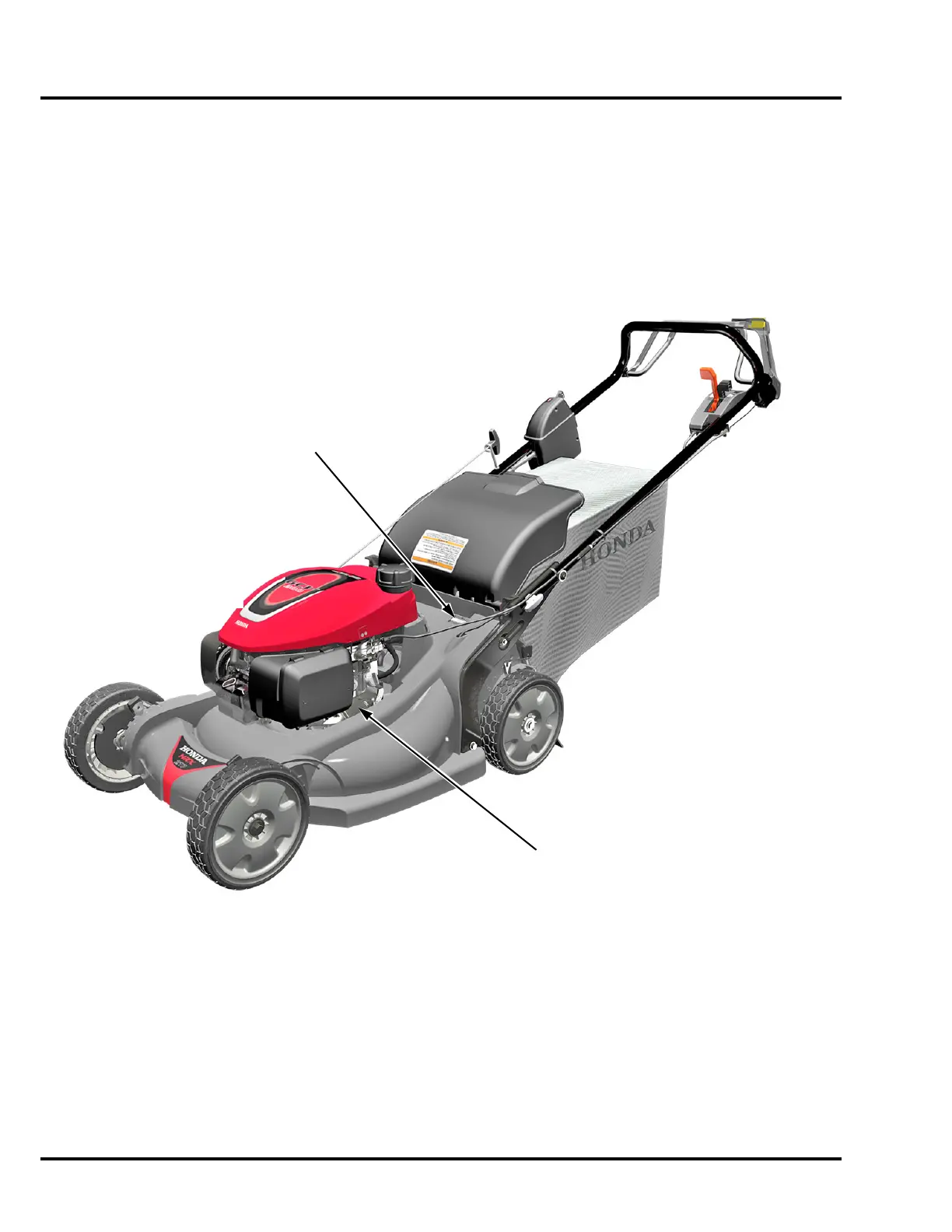

ENGINE SERIAL NUMBER

FRAME SERIAL NUMBER
