12-8
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRX217HYA • HRX217HZA

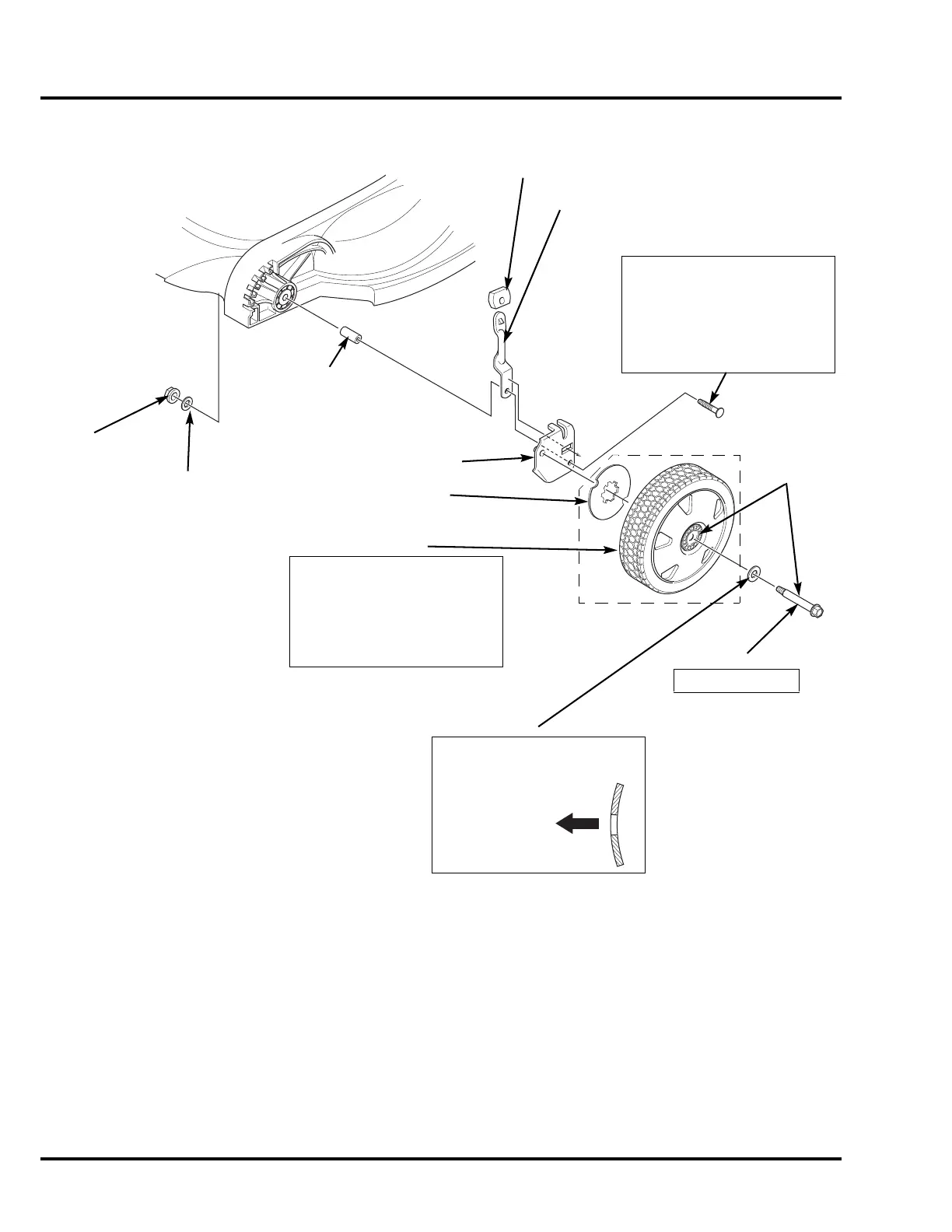

4. FRONT WHEELS
ADJUSTER ARM (L)
CARRIAGE BOLT
INSTALLATION:
Ensure the square on the carriage
bolt passes through both the front
adjuster plate and adjuster arm.
Hold the carriage bolt against the
adjuster plate and arm with the
square locked in while tightening the
8 mm locking nut.
8 mm WASHER
COLLAR
ADJUSTER GRIP
ADJUSTER PLATE
8 mm
SELF-LOCKING NUT
WHEEL WASHER
REASSEMBLY:
Install the washer as shown.
WHEEL SIDE

WHEEL SHAFT BOLT
22 N•m (16 ft-lb)
WHEEL
INSTALLATION:
The HZA type has a wheel with a
wheel weight installed. The HYA
model does not have the wheel
weight. Do not exchange the HZA
front wheel with a replacement
wheel that does not have a wheel
weight installed.
WHEEL WEIGHT
(HZA only)
