10-20
CAM PULLEY/CRANKSHAFT/ PISTON/CYLINDER HRX217HYA • HRX217HZA

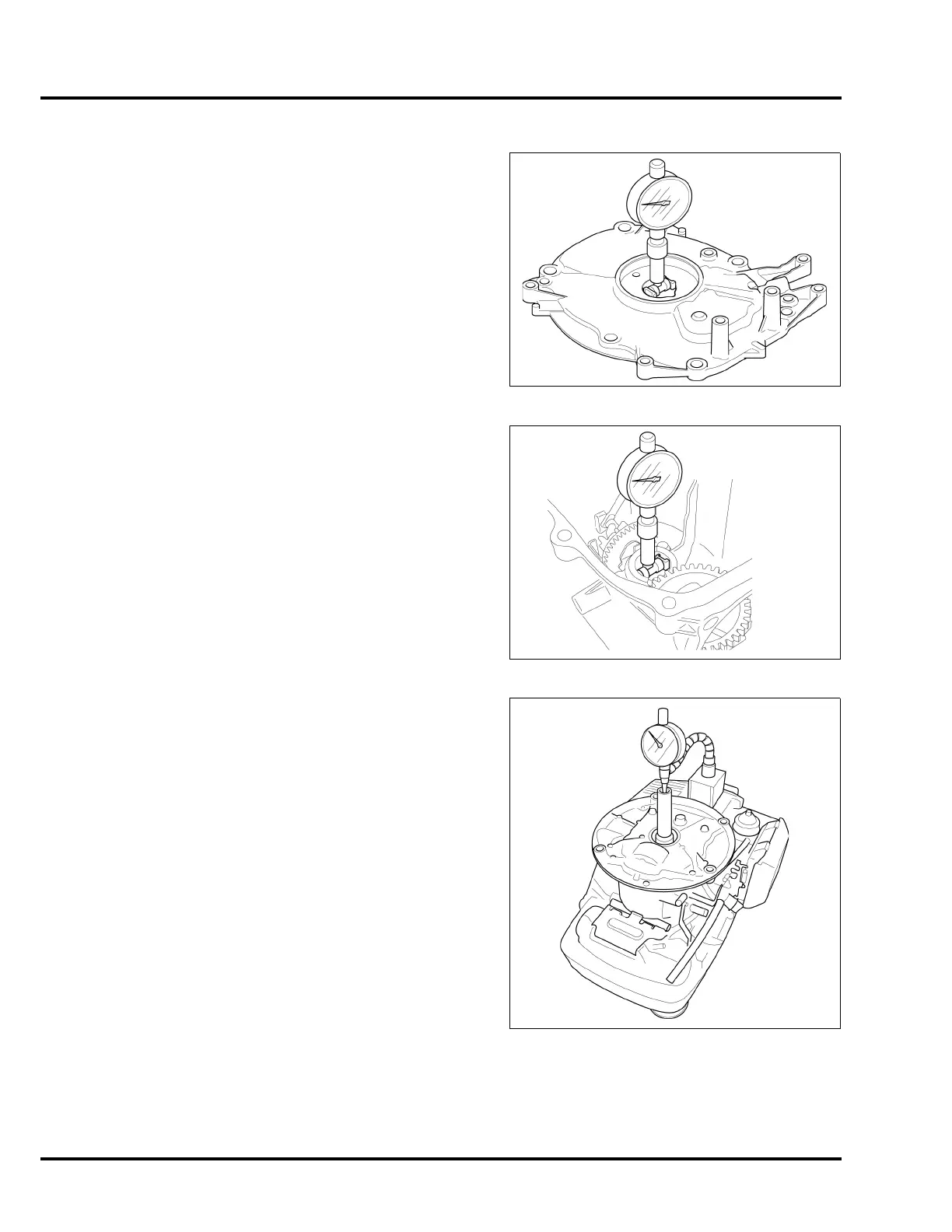

CRANKCASE COVER MAIN JOURNAL I.D.
Measure the crankcase cover main journal I.D.
If the measurement is more than the service limit, replace the
crankcase cover.
CRANKCASE MAIN JOURNAL I.D.
Measure the crankcase main journal I.D.
If the measurement is more than the service limit, replace the
crankcase.
CRANKSHAFT AXIAL CLEARANCE
Measure the crankshaft axial play before removing the oil pan,
crankshaft, and piston.
If the measurement is more than the service limit, inspect the thrust
washer, timing gear, crankshaft, crankcase, and crankcase cover
for wear or damage.
STANDARD: 25.420 – 25.441 mm (1.0008 – 1.0016 in)
SERVICE LIMIT: 25.466 mm (1.0026 in)
STANDARD: 28.020 – 28.041 mm (1.1031 – 1.1040 in)
SERVICE LIMIT: 28.066 mm (1.1050 in)
STANDARD: 0.15 – 0.65 mm (0.006 – 0.026 in)
SERVICE LIMIT: 1.0 mm (0.04 in)
