4-2
ROTO-STOP®/DRIVE BELT HRX217HYA • HRX217HZA

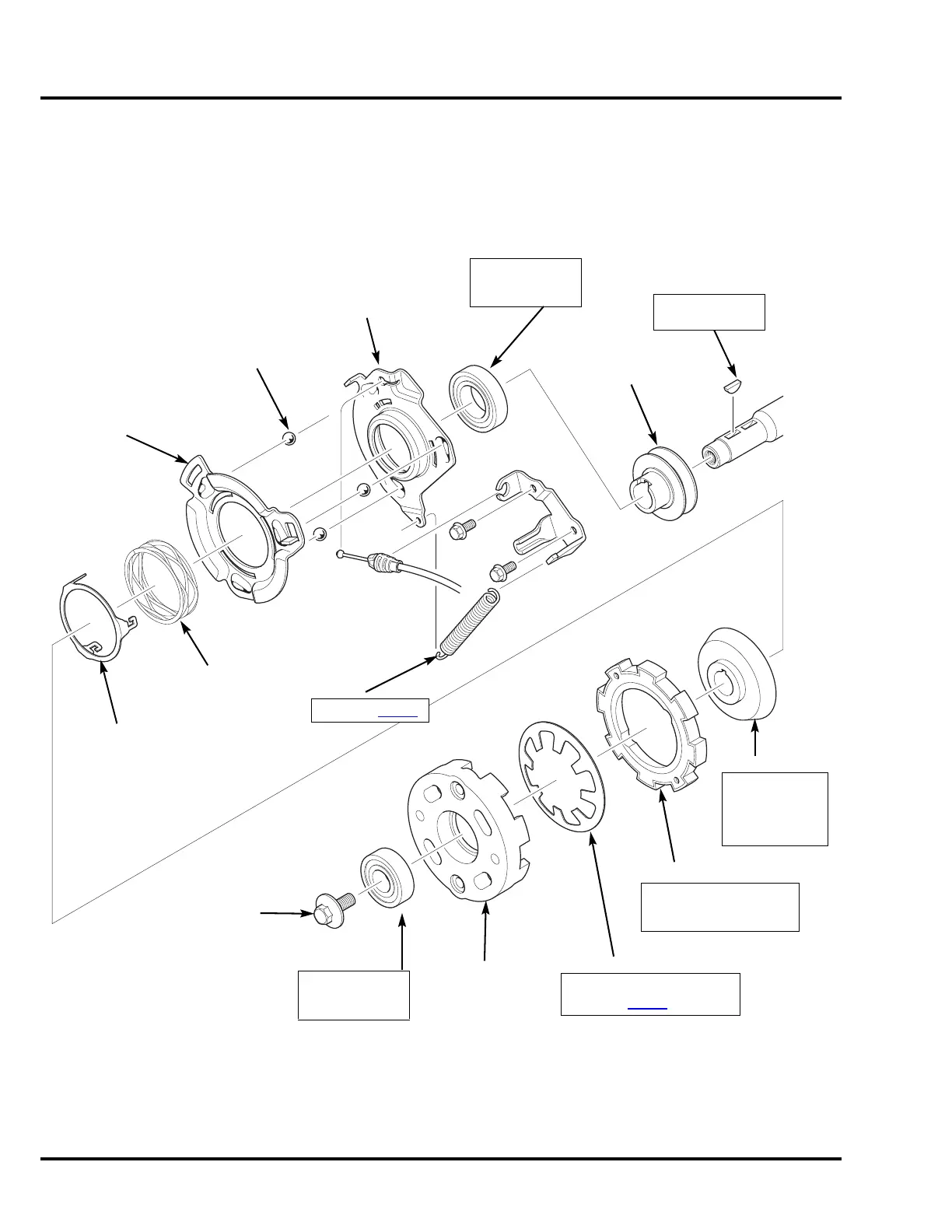

1. ROTO-STOP
PARTS REFERENCE
BALL PLATE
DRIVE DISC
“4” mark on the
back identifies
the disc is for
an HRX K6
model.
DRIVEN DISC
Code mark starting with
an “L” identifies the disc
is for an HRX K6 model.
BALL PLATE SPRING
BLADE
HOLDER
SPRING HOOK PLATE
STEEL BALL (3)
DRIVE PULLEY
WOODRUFF KEY
Install in lower
keyway slot.
BEARING
Replace if it
doesn’t rotate
smoothly.
CLUTCH SPRING
“UP” mark towards engine
INSPECT
: (P. 4-6)
BEARING
Replace if it
doesn’t rotate
smoothly.
BRAKE PLATE
SPECIAL BLADE
HOLDER BOLT
SPRING
INSPECT: (P. 4-6)
