Honda HRX217K6HYA - Throttle and Shift Control Diagram

11-4
HANDLE PIPE/SHIFT LEVER/ THROTTLE LEVER HRX217HYA • HRX217HZA

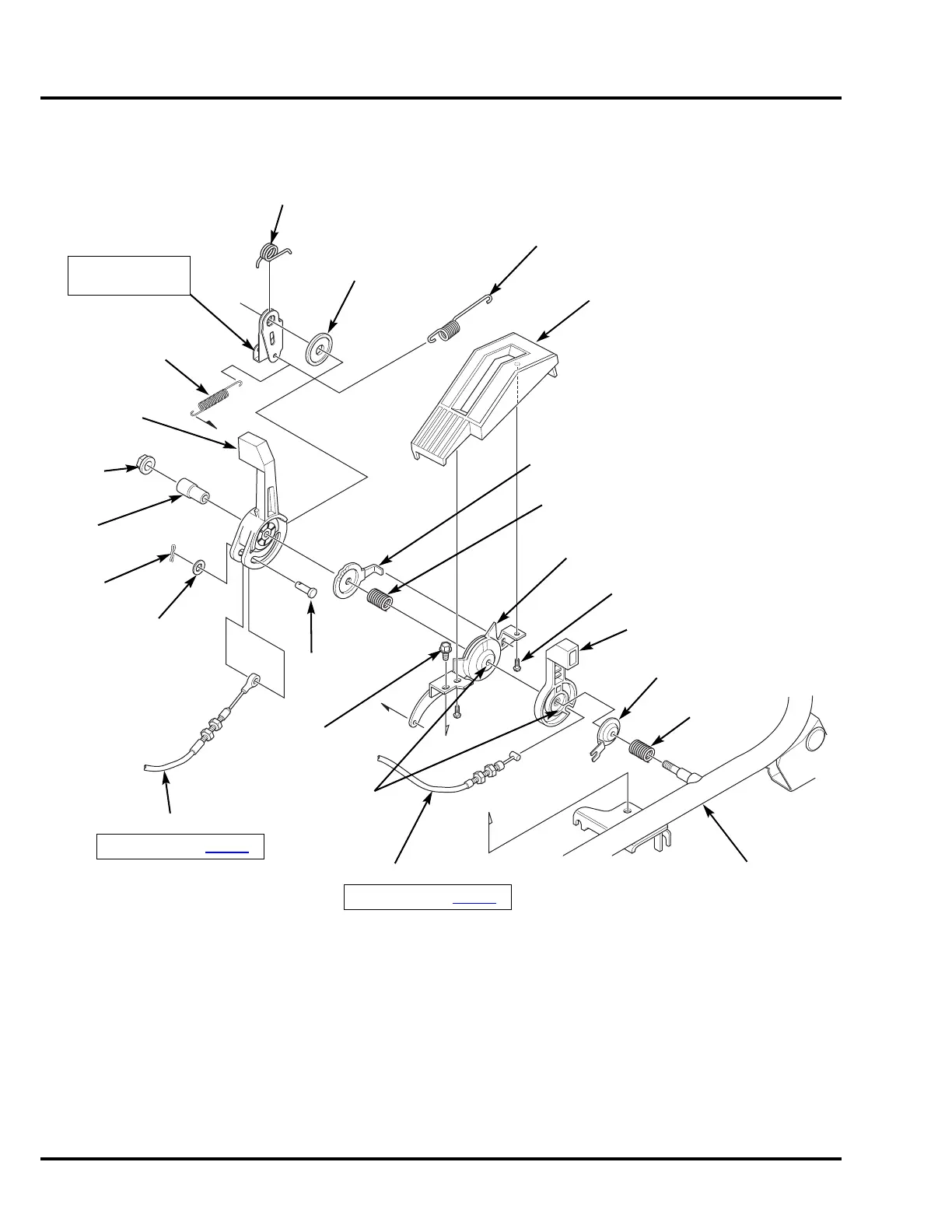

2. THROTTLE AND SHIFT CONTROL
THROTTLE LEVER
THROTTLE
LEVER
SPRING
SPRING SEAT
SPRING SEAT
CONTROL COVER
SHIFT
LEVER
SHIFT LEVER SPRING
STOPPER
RETURN ARM
SPRING
PIN,
6 x 22 mm
SHIFT
LEVER COLLAR
SELF-TAPPING SCREW,
5 x 12 mm (2)
FLANGE
NUT, 6 mm
PLAIN WASHER,
6 mm
LOCK
PIN, 6 mm
FLANGE
BOLT, 6 x 10 mm
WASHER
HANDLEBAR
THROTTLE CABLE
ADJUSTMENT: P. 3 - 1 5
DRIVE CLUTCH CABLE
ADJUSTMENT: P. 3-15
CLUTCH LEVER
RETURN SPRING
SHIFT LEVER ARM
Outside hole not
used.
CLUTCH SPRING

