HRX217HYA • HRX217HZA HANDLE PIPE/SHIFT LEVER/ THROTTLE LEVER
ROPE GUIDE INSTALLATION
Proper positioning of the rope guide is necessary to ensure
the starter rope does not come out of the guide during
normal use.
1. Insert the rope guide into the hole in the right-side
handlebar, and then loosely install the 6 mm locking
nut.
2. Rotate the rope guide so that the open end of the
pigtail is perpendicular to the handlebar and pointing
inward between the two handlebar pipes.
3. Fully tighten the 6 mm locking nut while ensuring the
rope guide does not rotate from the position set in
step 2.
4. Slide the starter rope through the small gap in the rope
guide pigtail.

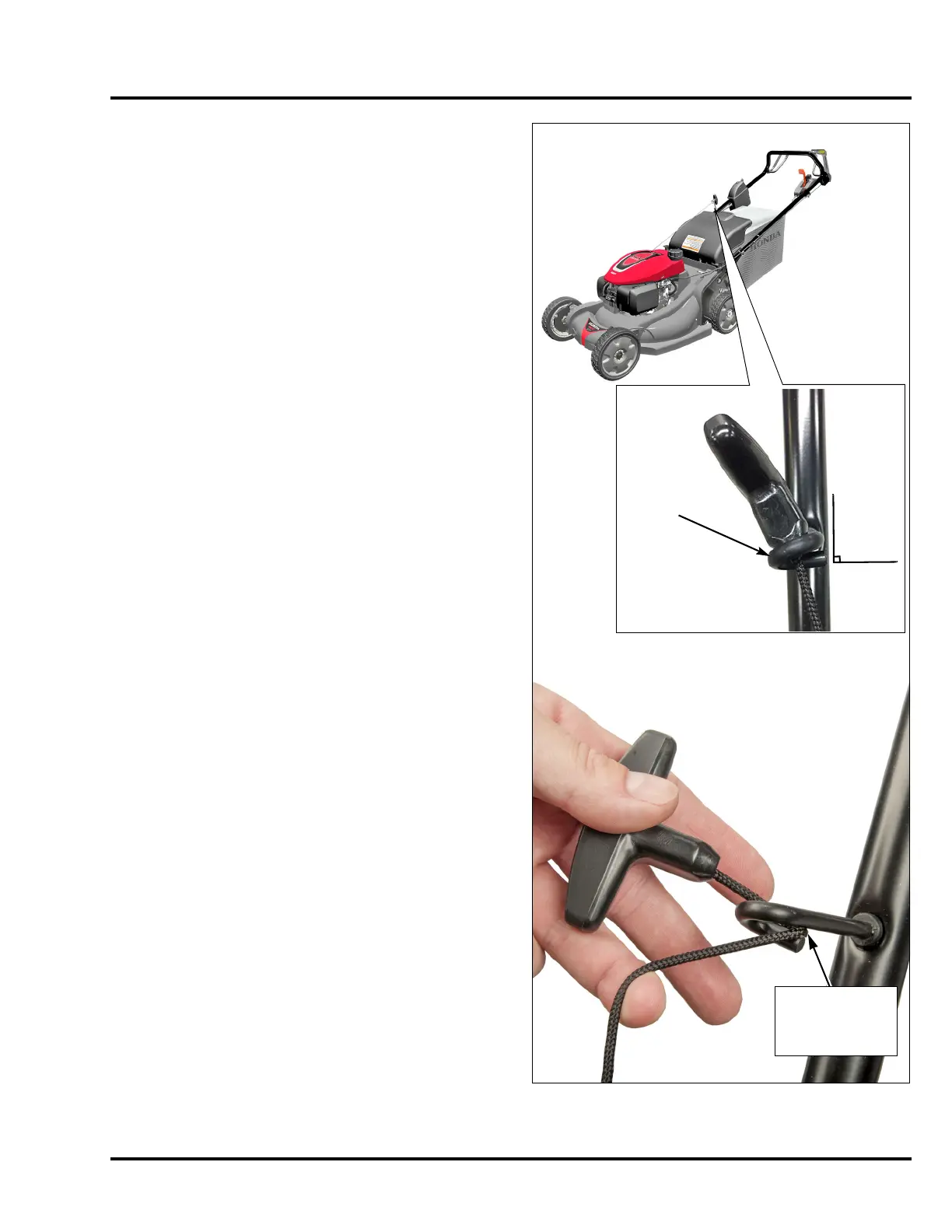

ROPE GUIDE
Pull the rope
through the gap
in the rope
guide, as shown.
