14-8
OPERATION HRX217HYA • HRX217HZA

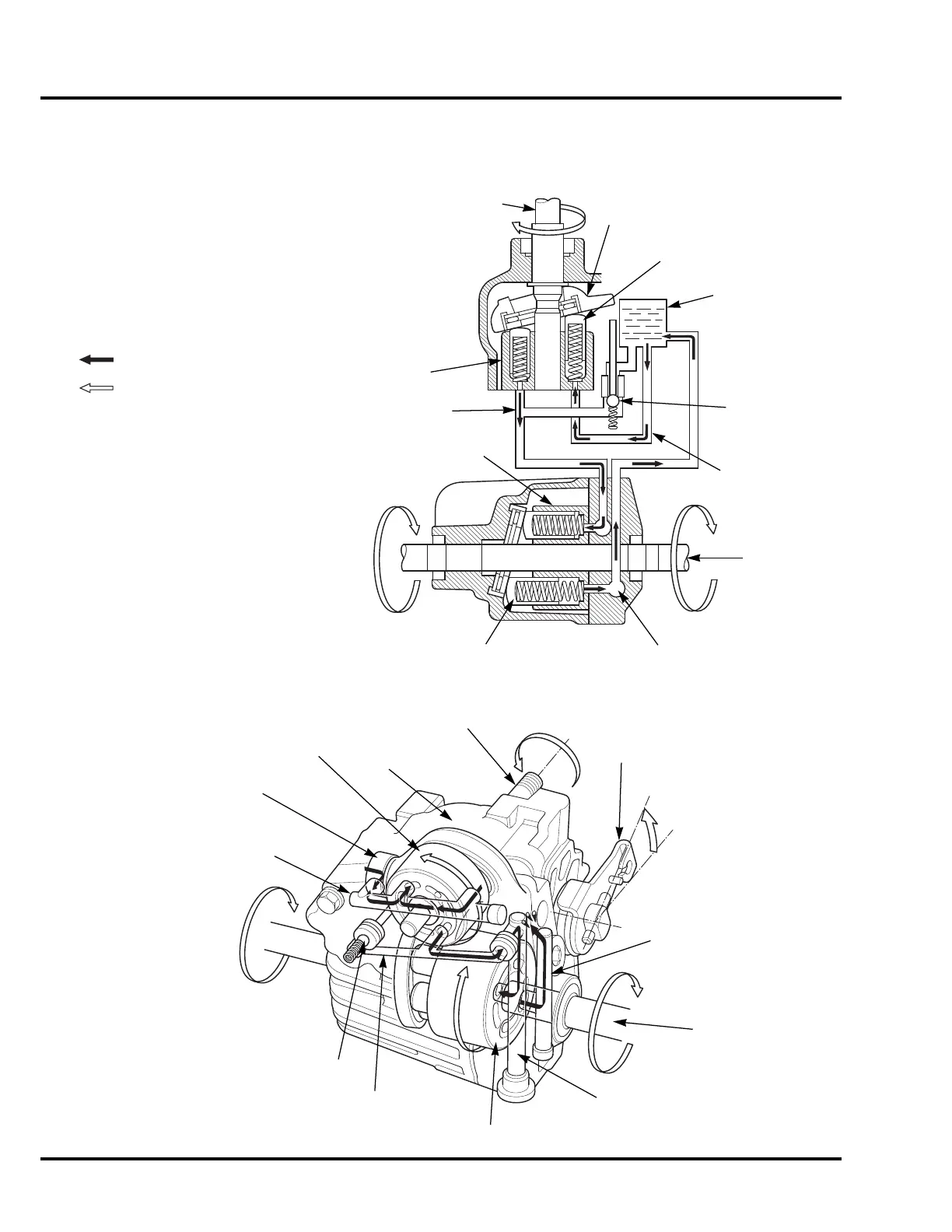

OIL PASSAGE FLOW
Oil flow:
PUMP CONTROL
BOWL
DRIVE
SHAFT
AXLE
SHAFT
NEUTRAL
VALVE
INSIDE OF
CASE
PUMP CYLINDER
MOTOR CYLINDER
OIL PASSAGE (1)
OIL PASSAGE (2)
OIL
PASSAGE (3)
: Oil flow
: Rotation direction
PISTON
PISTON
<When running>
The oil fed out from the pump cylinder flows through oil
passage (1) to the motor cylinder pistons. The oil
pressure forces the pistons out against the inclined
surface, causing the motor to rotate. After the pistons
reach top dead center, they begin to compress, causing
oil to exit the motor cylinder and flow back to the inside
of the transmission case through oil passage (2).
PUMP CONTROL
BOWL
PUMP CYLINDER
PUMP SHAFT
CONTROL ARM
AXLE SHAFT
MOTOR CYLINDER
NEUTRAL
VALVE
INSIDE OF
CASE
OIL
PASSAGE (1)
OIL
PASSAGE (1)
OIL
PASSAGE (3)
OIL PASSAGE (2)
