12-5
HRX217HYA • HRX217HZA VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS

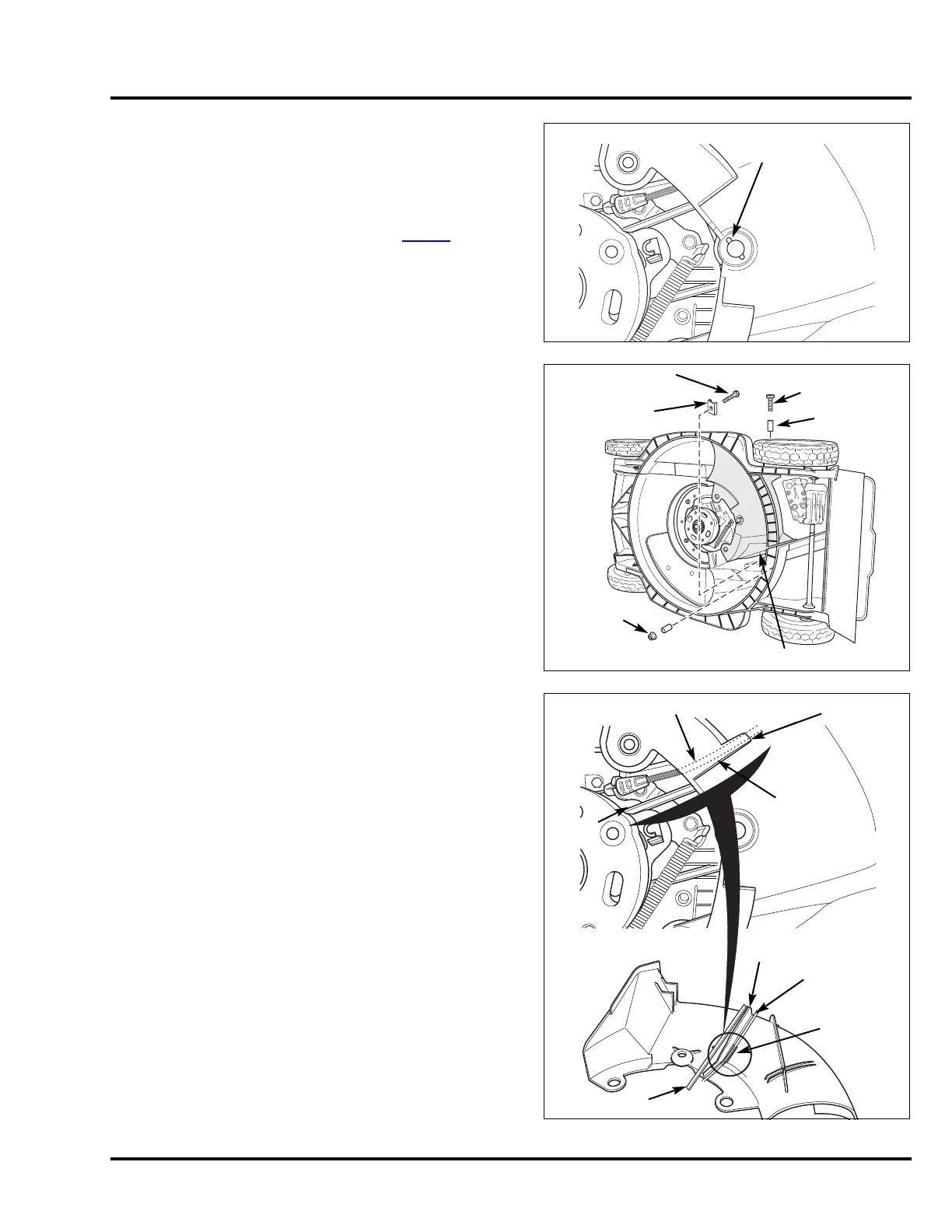

2. REAR SCROLL
REMOVAL/INSTALLATION
REMOVAL
1.Remove the variable mower shutter (P. 1 2- 2
).
2.Move the left rear wheel to the highest cutting position.
3.Remove the 4 x 19.8 mm roll pin.
4. Remove the two scroll bolts, washers, collars, and
the scroll.
INSTALLATION
Installation is done in the reverse order of removal.
When installing the scroll, position the rib guide, located on
the top of the scroll, between the belt and the Roto-Stop
cable.
After installation, confirm the rib guide and Roto-Stop cable
are not contacting the drive belt.
ROLL PIN,
4 x 19.8 mm
BOLT, 8 x 28 mm
SCROLL
SCROLL
COLLAR (2)
FLANGE BOLT,
6 x 32 mm
FLANGE
NUT, 8 mm
HOLDER
DRIVE
BELT
CHANNEL
GUIDE
ROTO-STOP
CABLE
RIB GUIDE
RIB
GUIDE
CHANNEL
GUIDE
ROTO-STOP CABLE
DRIVE BELT
