8-14
FUEL SYSTEM HRX217HYA • HRX217HZA

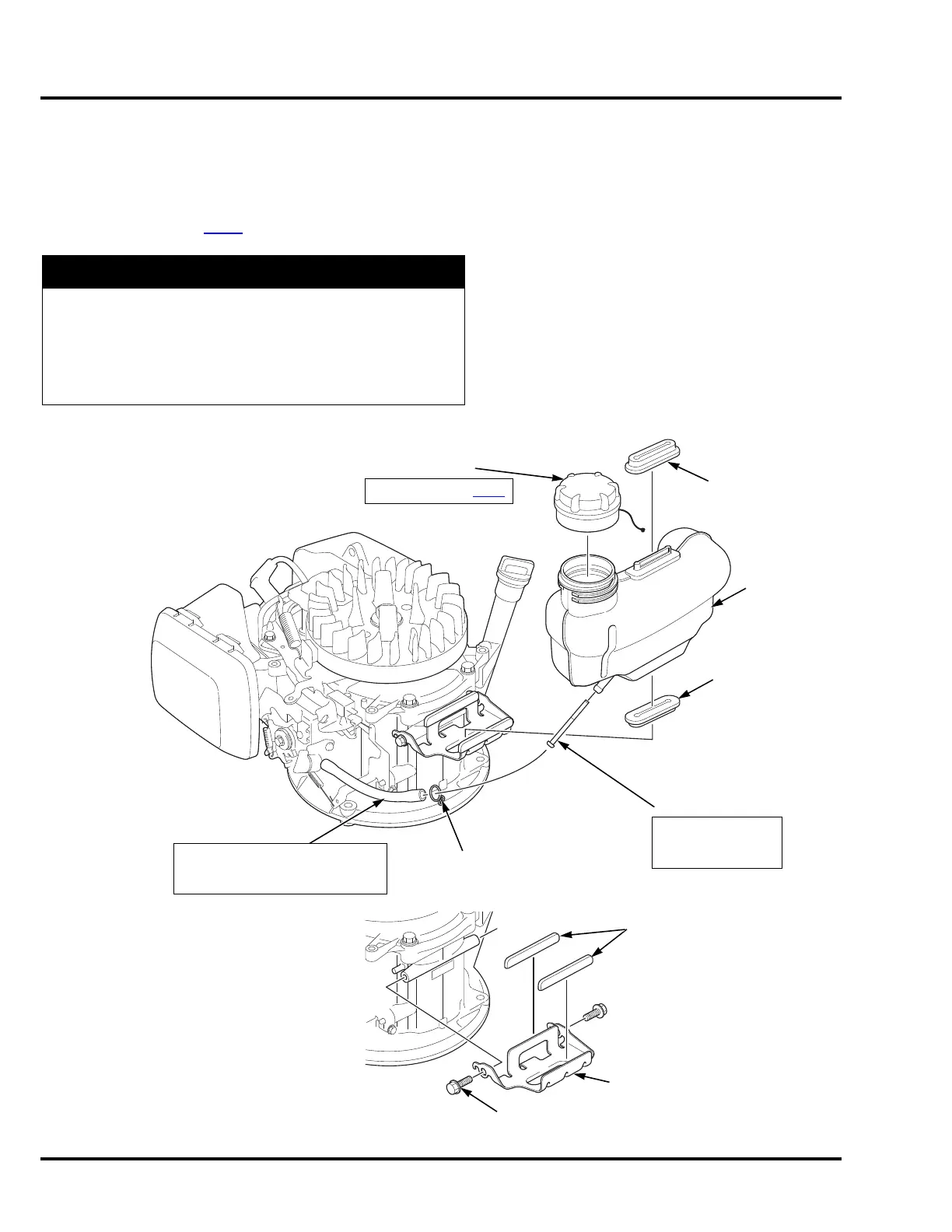

3. FUEL TANK
DISASSEMBLY/REASSEMBLY
Before removal, drain the gasoline into an approved container.
Remove the top cover (P. 7 - 2
).
WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
• Stop the engine and let it cool.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
TANK MOUNT
RUBBER A
FUEL TANK
TANK MOUNT
RUBBER B
TANK MOUNT
RUBBER A
FUEL TANK CAP
CLEANING:
Clean with solvent.
FUEL STRAINER
FUEL TUBE
TUBE CLIP
6 x 14 mm BOLT (2)
FUEL TANK STAY
CHECK:
Check for deterioration or cracks.
INSTALLATION: P. 7- 2
To Next Page
