9-7

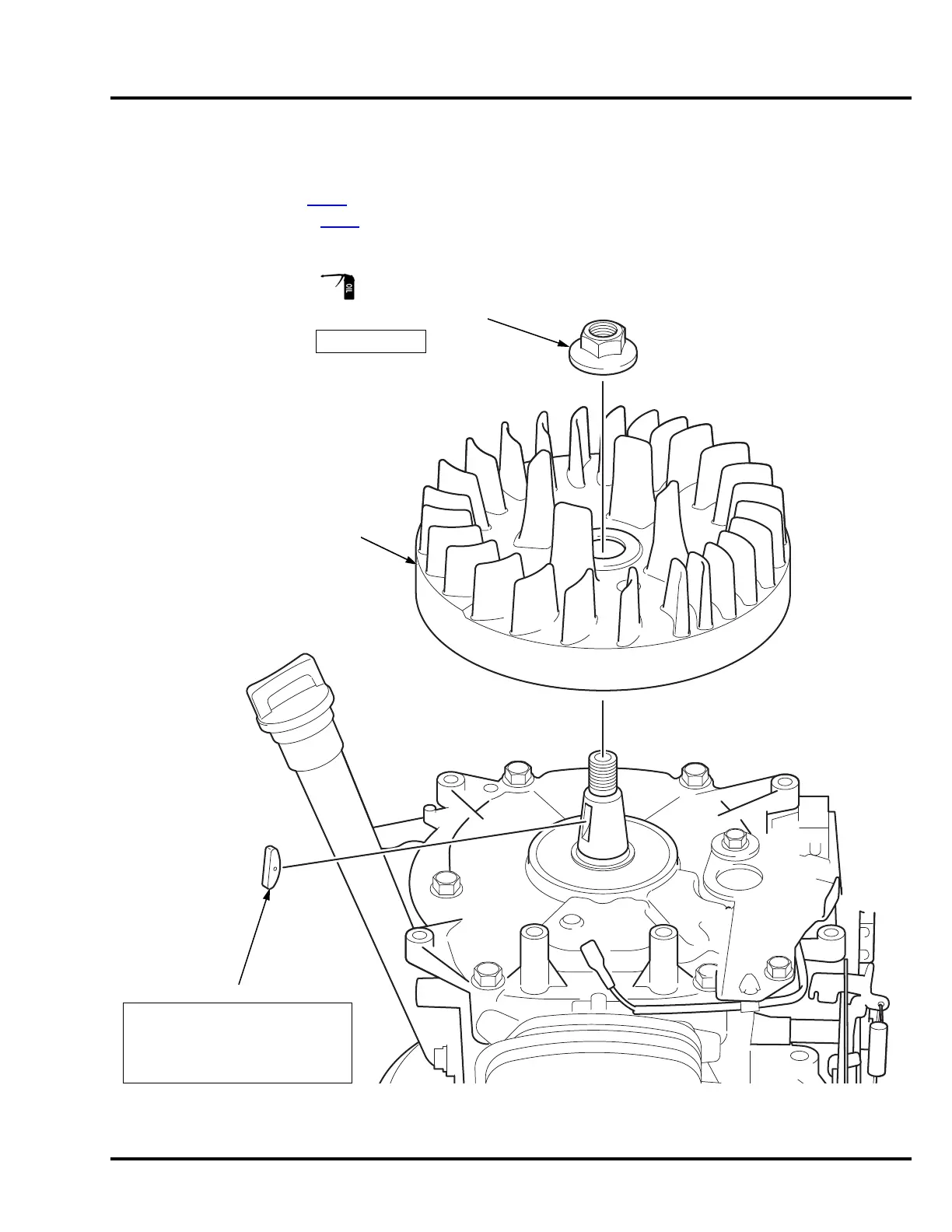

HRX217HYA • HRX217HZA FLYWHEEL/IGNITION COIL

2. FLYWHEEL

DISASSEMBLY/REASSEMBLY

1. Remove the fan cover (P. 7 - 3 ).

2. Remove the ignition coil (P. 9 - 2

75 N•m (55 ft-lb)

FLYWHEEL NUT (14 mm)

INSTALLATION:

When installing the flywheel, check

to be sure that the woodruff key

remains in its slot in the crankshaft.

FLYWHEEL

WOODRUFF KEY

HYA type shown:
