HRX217HYA • HRX217HZA FUEL SYSTEM

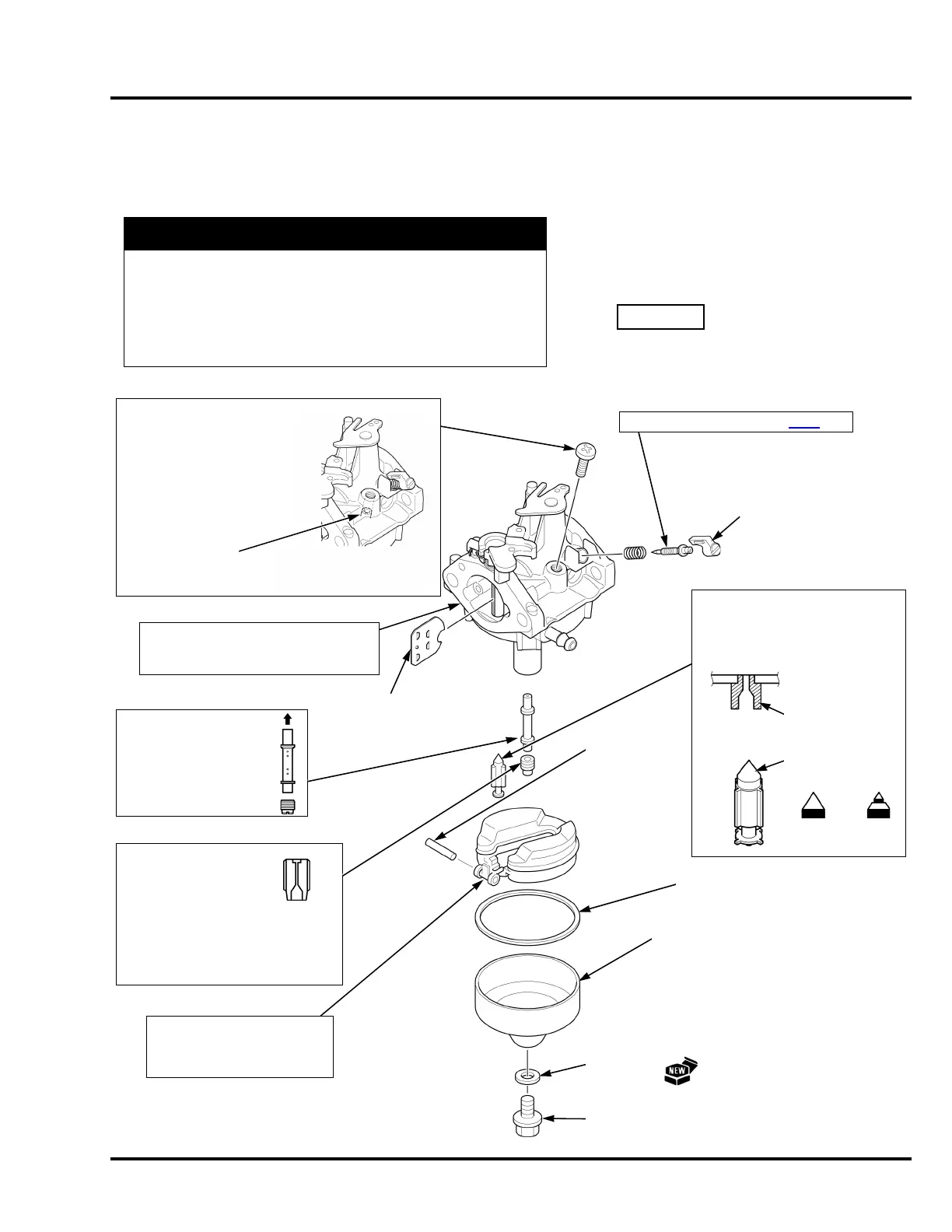

CARBURETOR DISASSEMBLY/REASSEMBLY
• Clean the outside of the carburetor before disassembly.
• The limiter cap is cemented on the pilot screw and should not be removed unless the carburetor is overhauled.
Pilot screw removal is normally not required to clean the carburetor.
 WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling fuel.
• Stop the engine and let it cool.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
REMOVAL/INSTALLATION: P. 8 - 8
PILOT AIR JET
(non-removable)
INSPECTION:
Remove the access screw
to clean the pilot air jet.
ASSEMBLY:
Before installing, clean
thoroughly with low
pressure compressed air
(max. 30 psi).
MAIN JET NUMBER: #70
SET GASKET
FLOAT PIN
5 x 6 mm ACCESS SCREW
MAIN NOZZLE
ASSEMBLY:
Before installing, clean
thoroughly with low
pressure compressed
air.
MAIN JET
ASSEMBLY:
Before installing, clean
thoroughly with low
pressure compressed
air (max. 30 psi).
SET BOLT
FLOAT CHAMBER
FLOAT
FLOAT VALVE
ASSEMBLY:
Check for smooth movement
after installation.
ASSEMBLY:
Check for worn float valve seat
and float valve before installation.
CARBURETOR
INSTALLATION:
Clean internal passages and orifices
with compressed air before installation.
OK
REPLACE
VALVE SEAT
FLOAT VALVE
SEALING
WASHER
PILOT SCREW
LIMITER CAP
CHOKE VALVE
NOTICE
Tampering is a violation of federal
and California law.
