HANDLE PIPE/SHIFT LEVER/ THROTTLE LEVER HRX217HYA • HRX217HZA
HANDLE LOCKING KNOB
REMOVAL
Drive the 2 x 12 mm roll pin out with a 1/16” drift punch.
INSTALLATION
1. Insert the height adjusting collar into the lower
mounting hole in the handle so that the flat part is
resting against the handle.
2. Slide the spring over the 8 mm pin.
3. Insert the pin into the collar and push it through until
you can see the hole in the pin on the other side.
4. Install the handle locking knob onto the top of the pin
and line up the holes on the pin and the knob.
5. Insert the 1/16” drift punch from the bottom
to keep the two holes aligned.
6. From the top side, start the 2 x 12 mm roll pin and
gently tap it in until it is flush with the knob.

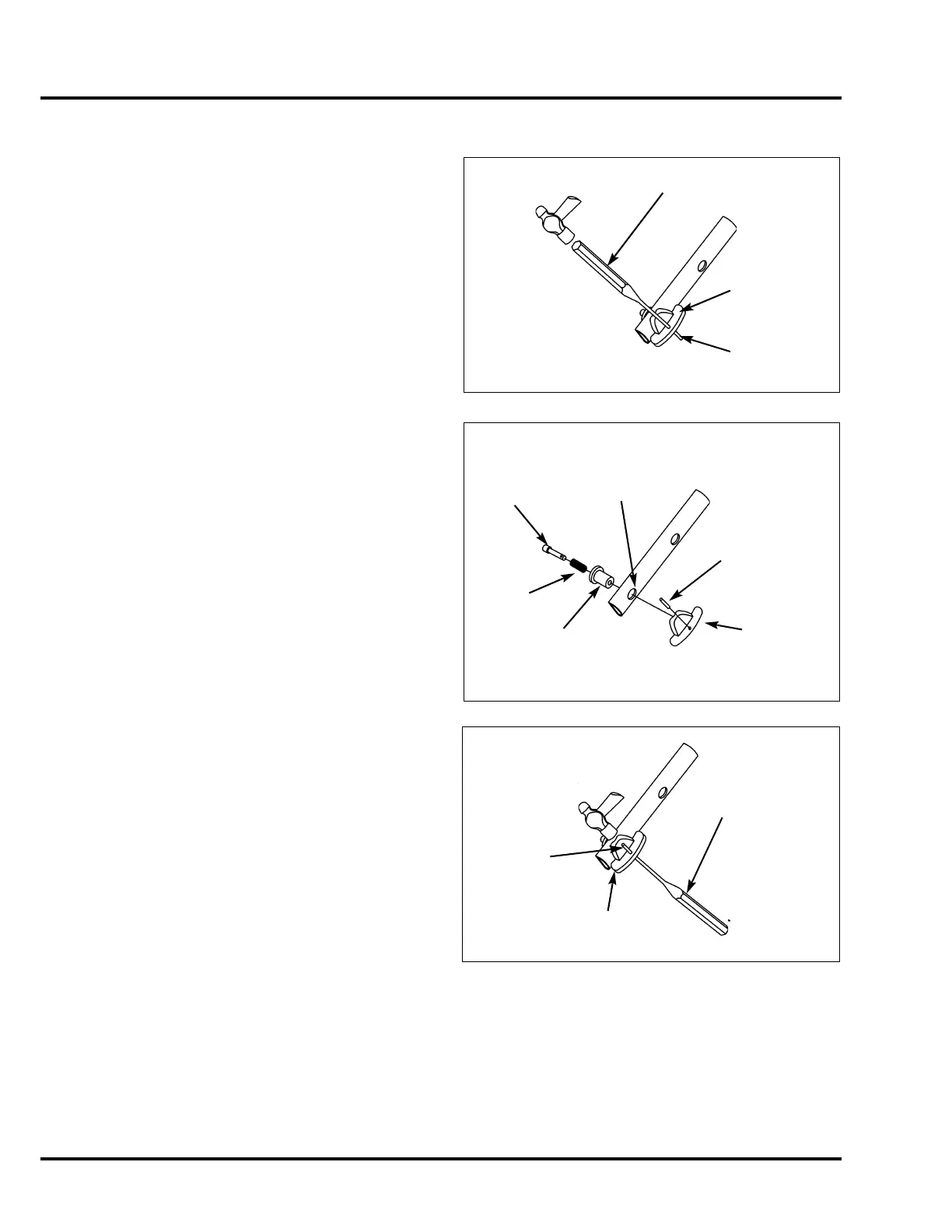

2 x 12 mm
ROLL PIN
1/16" DRIFT PUNCH
HANDLE
LOCKING
KNOB
2 x 12 mm
ROLL PIN
LOWER
MOUNTING
HOLE
HEIGHT
ADJUSTING
COLLAR
8 mm PIN
HEIGHT
ADJUSTING
SPRING
HANDLE
LOCKING
KNOB
2 x 12 mm
ROLL PIN
1/16" DRIFT PUNCH
HANDLE LOCKING KNOB
