OPERATION HRX217HYA • HRX217HZA

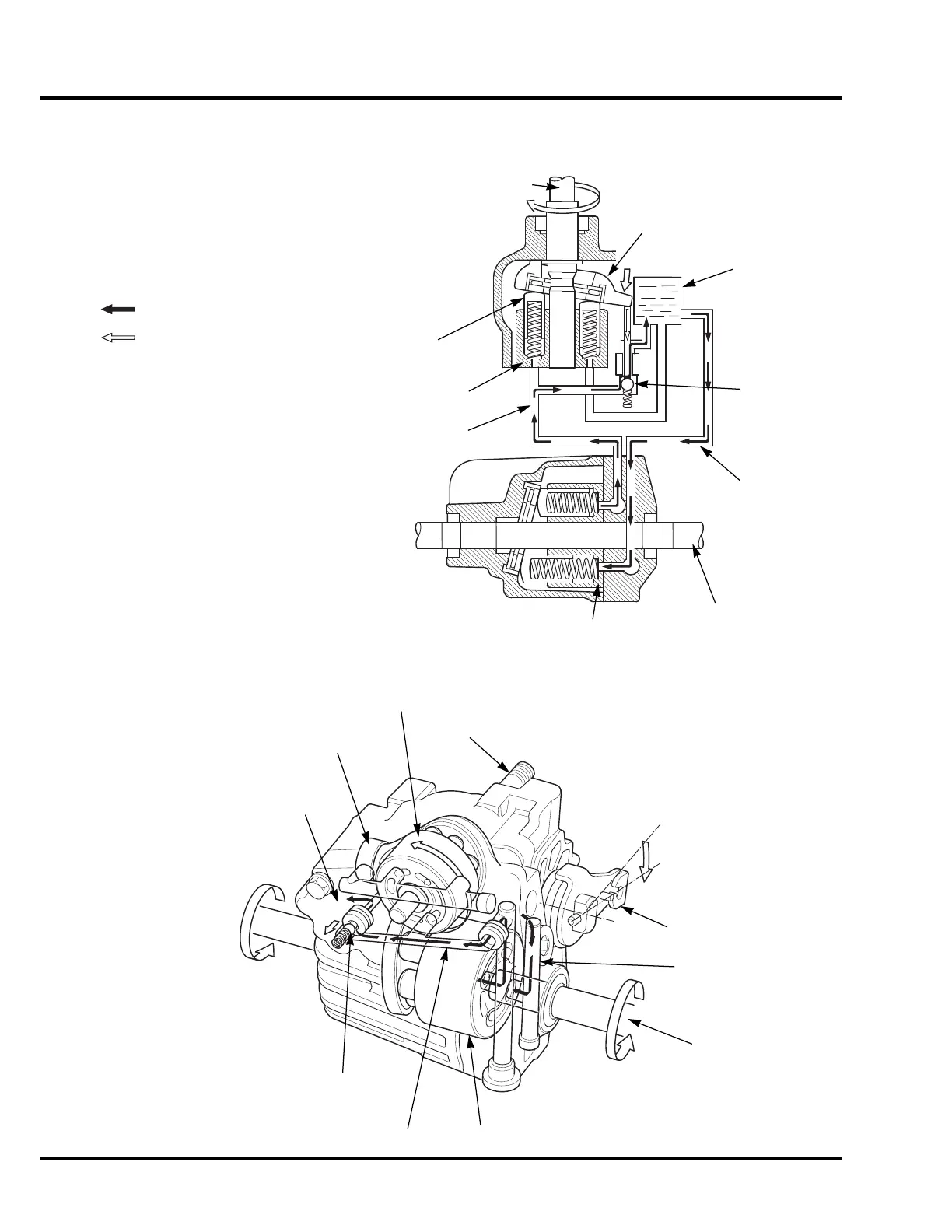

Oil flow:
: Oil flow
: Rotation direction
PUMP CYLINDER
NEUTRAL
VALVE
INSIDE OF
CASE
OIL PASSAGE (1)
OIL
PASSAGE (2)
PISTON
AXLE SHAFT
PUMP CONTROL
BOWL
PUMP CYLINDER
MOTOR CYLINDER
PUMP
SHAFT
<Pulling Mower Backwards>
When the clutch lever is released, the pump control bowl
pushes the neutral valve open. When the mower is pulled
backwards, oil is pumped out of the motor cylinder through oil
passage (1). The mower is free to roll backwards because the
oil is allowed to return to the transmission case through the
open neutral valve. New oil is drawn into the motor cylinder
through oil passage (2).
PUMP CYLINDER
PUMP SHAFT
CONTROL ARM
NEUTRAL VALVE
INSIDE OF CASE
OIL
PASSAGE (1)
MOTOR CYLINDER
OIL
PASSAGE (2)
AXLE SHAFT
PUMP CONTROL
BOWL
