10-18
CAM PULLEY/CRANKSHAFT/ PISTON/CYLINDER HRX217HYA • HRX217HZA

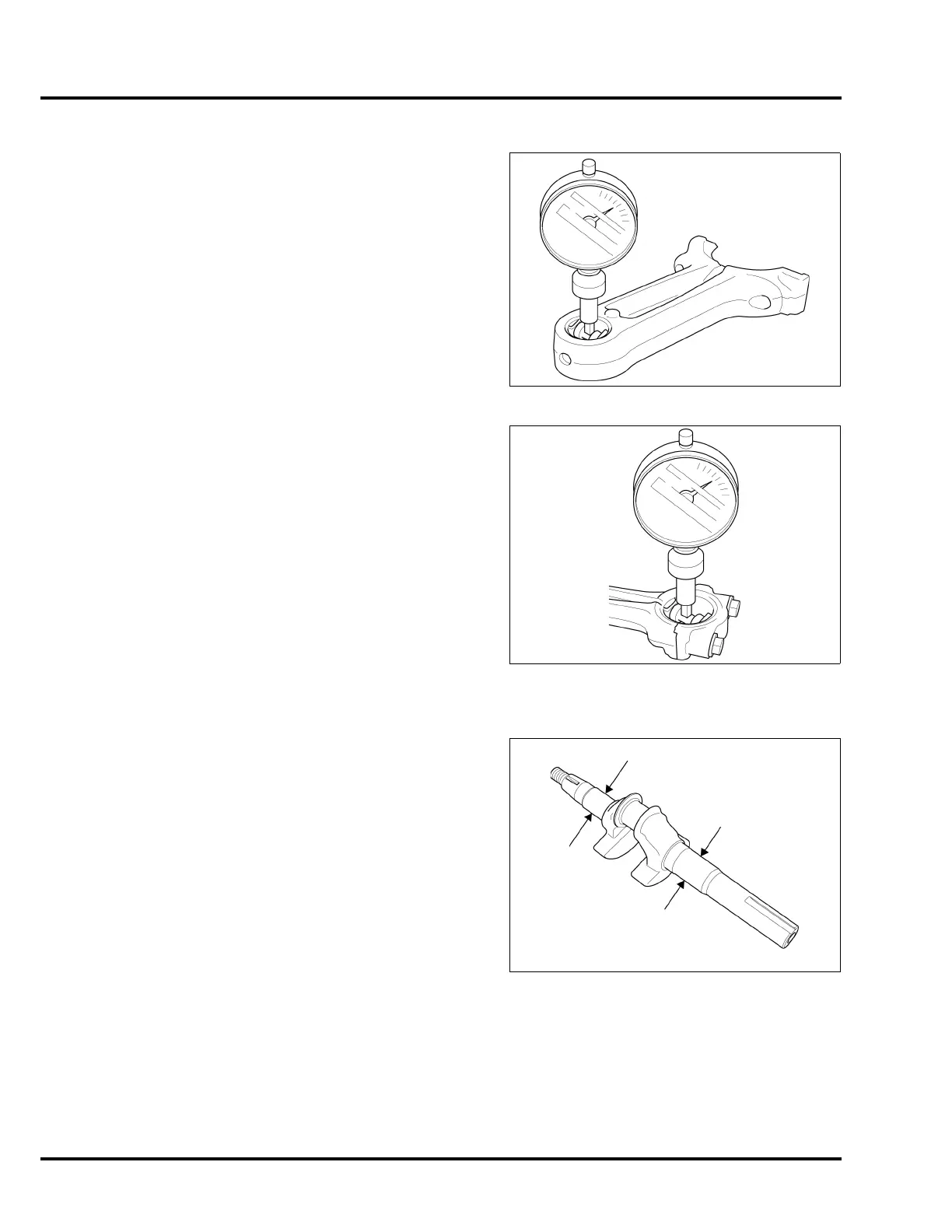

CONNECTING ROD SMALL END I.D.
Measure the connecting rod small end I.D.
If the measurement is more than the service limit, replace the
connecting rod.
CONNECTING ROD BIG END I.D.
Set the connecting rod cap to the connecting rod. Be sure the
projections align properly.
Apply engine oil to the connecting rod bolt threads and seating
surface.
Tighten the connecting rod bolts to the specified torque.
Measure the connecting rod big end I.D.
If the measurement is more than the service limit, replace the
connecting rod and connecting rod cap.
CRANKSHAFT MAIN JOURNAL O.D.
Measure the crankshaft main journal O.D.
PTO side:
Flywheel side:
If the measurement is less than the service limit, replace the
crankshaft.
STANDARD: 13.005 – 13.020 mm (0.5120 – 0.5126 in)
SERVICE LIMIT: 13.07 mm (0.515 in)
TORQUE: 12 N•m (9 ft-lb)
STANDARD: 28.020 – 28.033 mm (1.1031 – 1.1036 in)
SERVICE LIMIT: 28.066 mm (1.1050 in)
STANDARD: 27.980 – 27.993 mm (1.1016 – 1.1021 in)
SERVICE LIMIT: 27.933 mm (1.0997 in)
STANDARD: 25.380 – 25.393 mm (0.9992 – 0.9997 in)
SERVICE LIMIT: 25.333 mm (0.9974 in)
