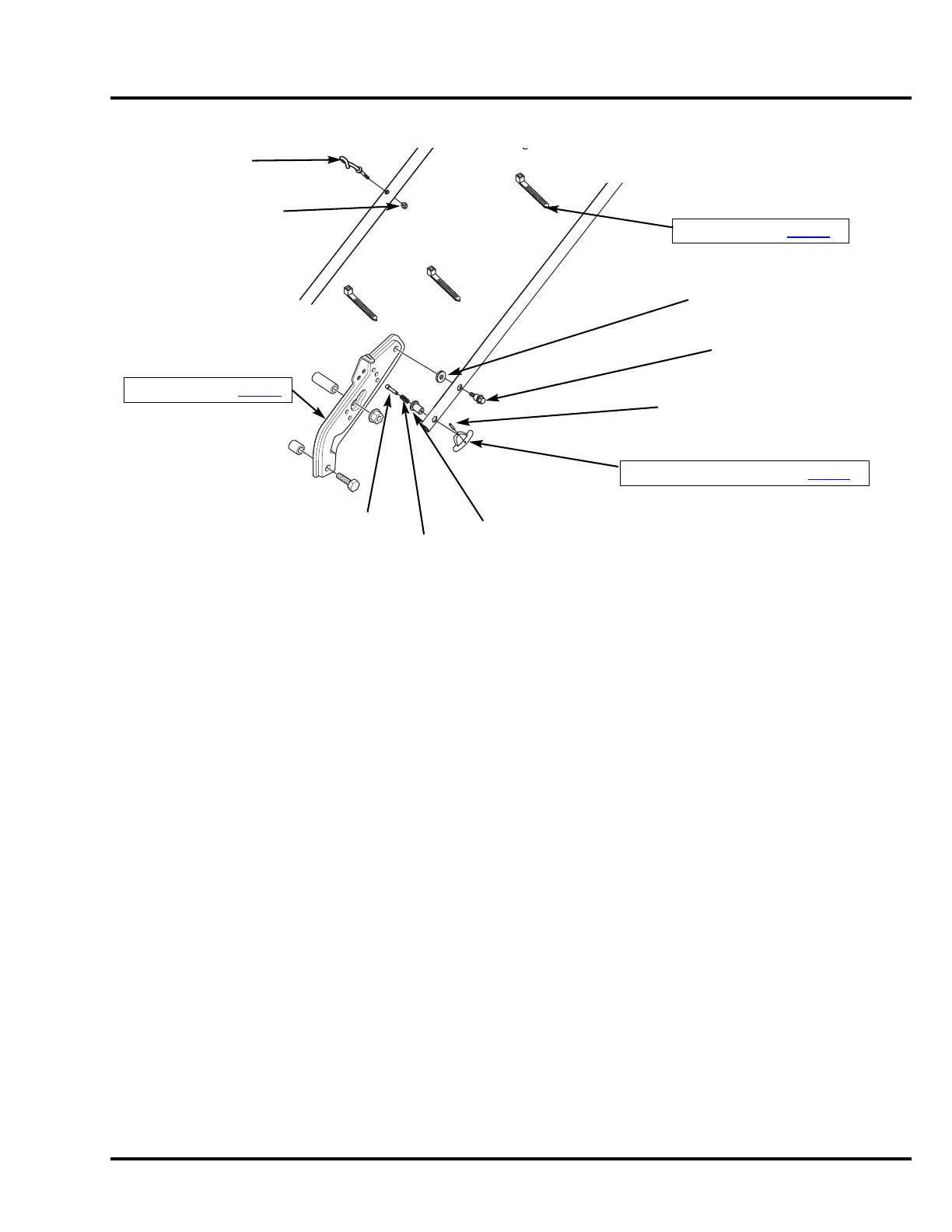

HRX217HYA • HRX217HZA HANDLE PIPE/SHIFT LEVER/ THROTTLE LEVER
3. HANDLE STAY
CABLE TIE (3)
INSTALLATION: P. 2-26
ROPE GUIDE
6 mm LOCKING NUT
NYLON WASHER (2)
SPECIAL BOLT (2)
8 mm PIN (2)
HANDLE LOCKING KNOB (2)
REMOVAL/INSTALLATION: P. 11 -6
2 x 12 mm ROLL PIN (2)
HANDLE ADJUSTING
SPRING (2)
HANDLE HEIGHT ADJUSTMENT COLLAR (2)
HANDLE STAY (2)
INSTALLATION: P. 12-5
