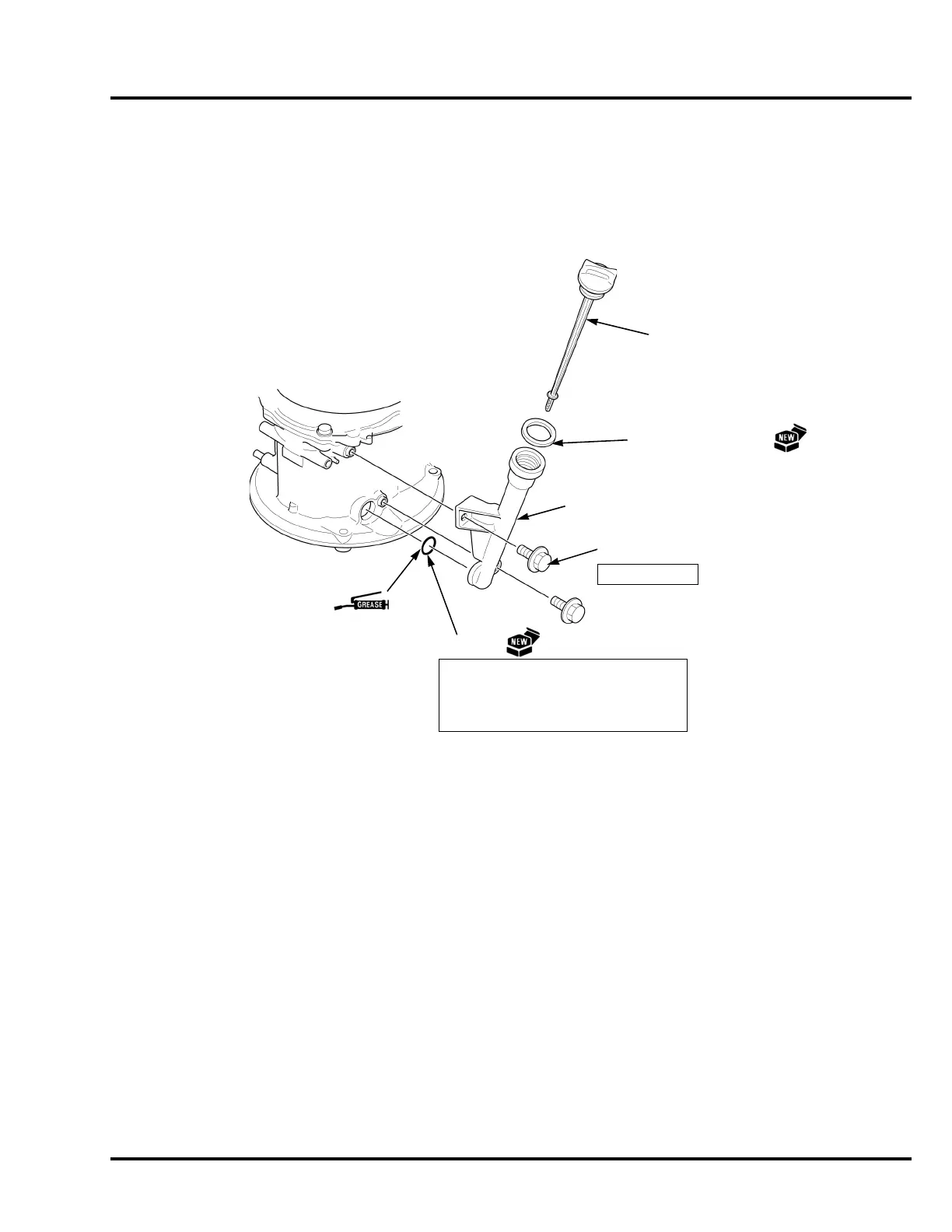

HRX217HYA • HRX217HZA CAM PULLEY/CRANKSHAFT/ PISTON/CYLINDER

9. OIL FILLER CAP / EXTENSION REMOVAL/INSTALLATION

O-RING

OIL FILLER CAP/DIPSTICK

OIL FILLER EXTENSION

OIL FILLER PACKING

6 x 14 mm SPECIAL BOLT (2)

12 N•m (9 ft-lb)

INSTALLATION:

Be sure that no dust or foreign material

enters when installing the O-ring. Be

careful not to pinch the O-ring.
