Honda HRX217K6HYA - Transmission Disassembly;Reassembly

13-6
TRANSMISSION HRX217HYA • HRX217HZA
DISASSEMBLY/REASSEMBLY

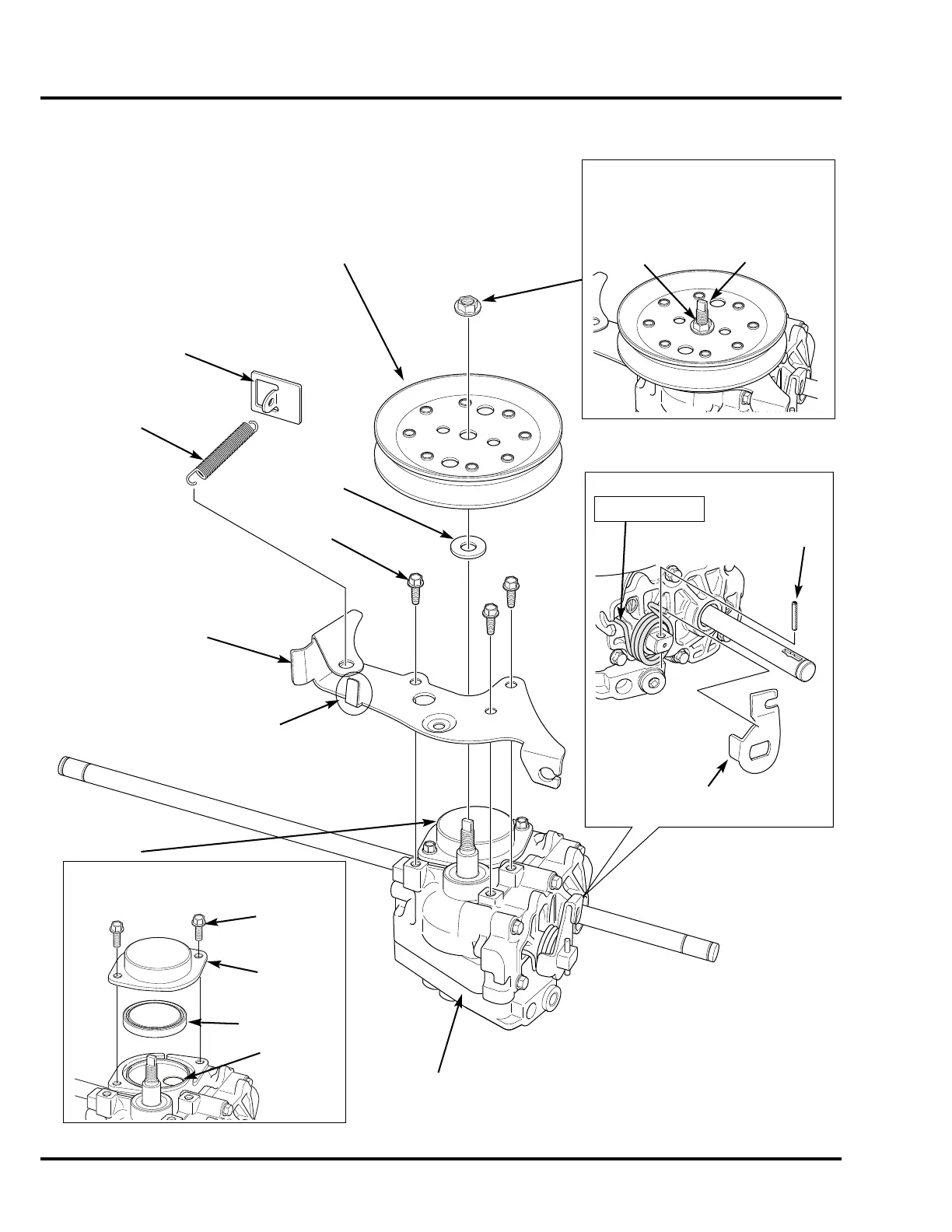

DRIVEN PULLEY
WASHER,
10 x 24 mm
TENSION
SPRING
TENSION
SPRING PLATE
FLANGE BOLT,
6 x 16 mm (3)
TRANSMISSION
CABLE HOLDER
OIL LEVEL
Remove the cap and diaphragm. Fill to the
top of the hole in the case with Honda
hydrostatic fluid.
HOLE
DIAPHRAGM
CAP
5 x 12 mm
FLANGE
BOLT (2)
FLANGE NUT, 10 mm
REMOVAL/INSTALLATION:
Hold the shaft while removing or
installing the flange nut.
TORQUE: 26 ~ 29 N•m (19 ~ 22 ft-lb)
SHAFT
FLANGE NUT
CONTROL ARM
ROLL PIN
CONTROL ARM
SPRING HOOK
Position here.
BELT DEFLECTOR
