12-6
VARIABLE MOWING SYSTEM/ MOWER DECK/WHEELS HRX217HYA • HRX217HZA

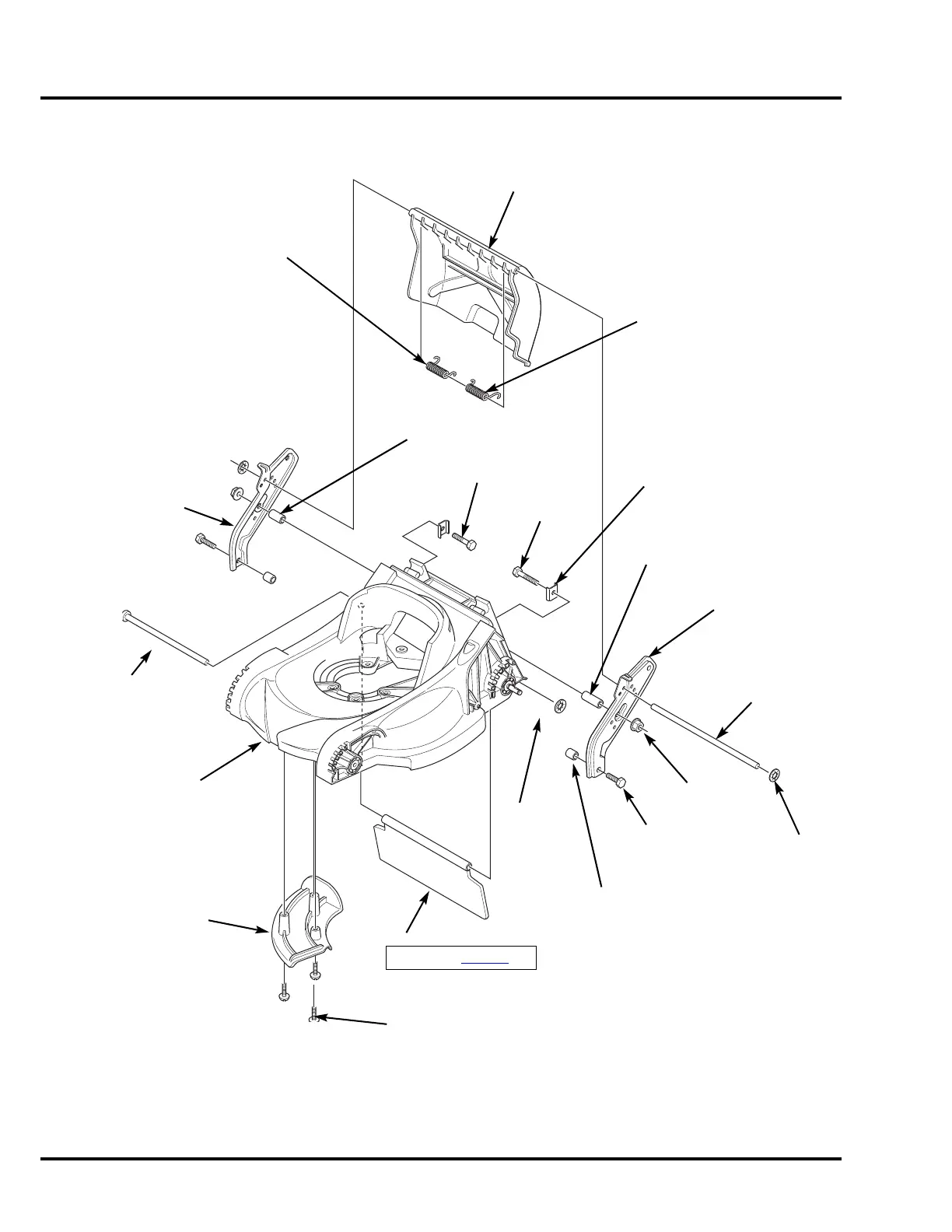

3. MOWER DECK
MOWER DECK
HANDLE STAY (L)
HANDLE STAY (R)
UPPER HANDLE
STAY COLLAR (R)
UPPER HANDLE
STAY COLLAR (L)
LOWER HANDLE
STAY COLLAR (2)
HANDLE STAY
HOLDER (2)
HEX BOLT,
8 x 50 mm
HEX BOLT,
8 x 40 mm
FLANGE BOLT,
8 x 22 mm (2)
FLANGE NUT,
8 mm (2)
SHAFT
PUSH NUT
DISCHARGE
GUARD
SHIELD SHAFT
DISCHARGE GUARD
RETURN SPRING (R)
DISCHARGE GUARD
RETURN SPRING (L)
SCROLL RAMP
SELF-TAPPING SCREW,
5 x 16 mm (3)
PUSH NUT,
7.94 mm (2)
SHIELD
REMOVAL: (P. 12-7)
