8-6

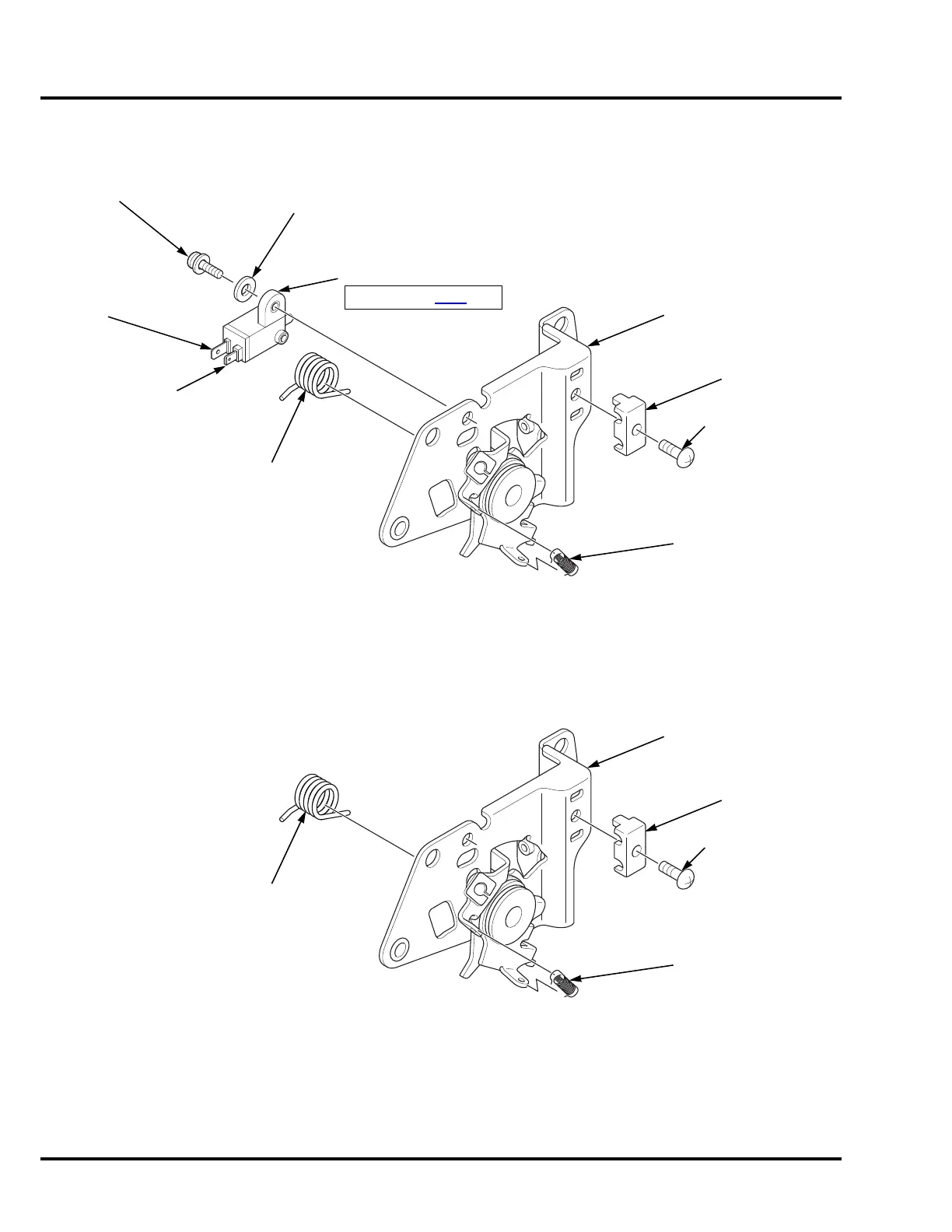

FUEL SYSTEM HRX217HYA • HRX217HZA

DISASSEMBLY/REASSEMBLY

HYA TYPE

HZA TYPE

SCREW (4 x 12 mm)

WASHER (4 mm)

ENGINE STOP SWITCH

INSPECTION: P. 9 -5

CABLE HOLDER

SCREW (5 x 16 mm)

LEVER SPRING

CONTROL LEVER RETURN SPRING

CONTROL BASE

WIDE TERMINAL

(to stop switch wire)

NARROW TERMINAL

(not used)

CABLE HOLDER

SCREW (5 x 16 mm)

LEVER SPRING

CONTROL LEVER RETURN SPRING

CONTROL BASE
