9. CABLE ROUTING AND TIES
Loosely install the two upper cable ties around the handlebar, throttle cable,
transmission cable, and Roto-Stop cable.
Loosely install the lower cable tie only around the throttle cable, transmission cable,
and Roto-Stop cable.

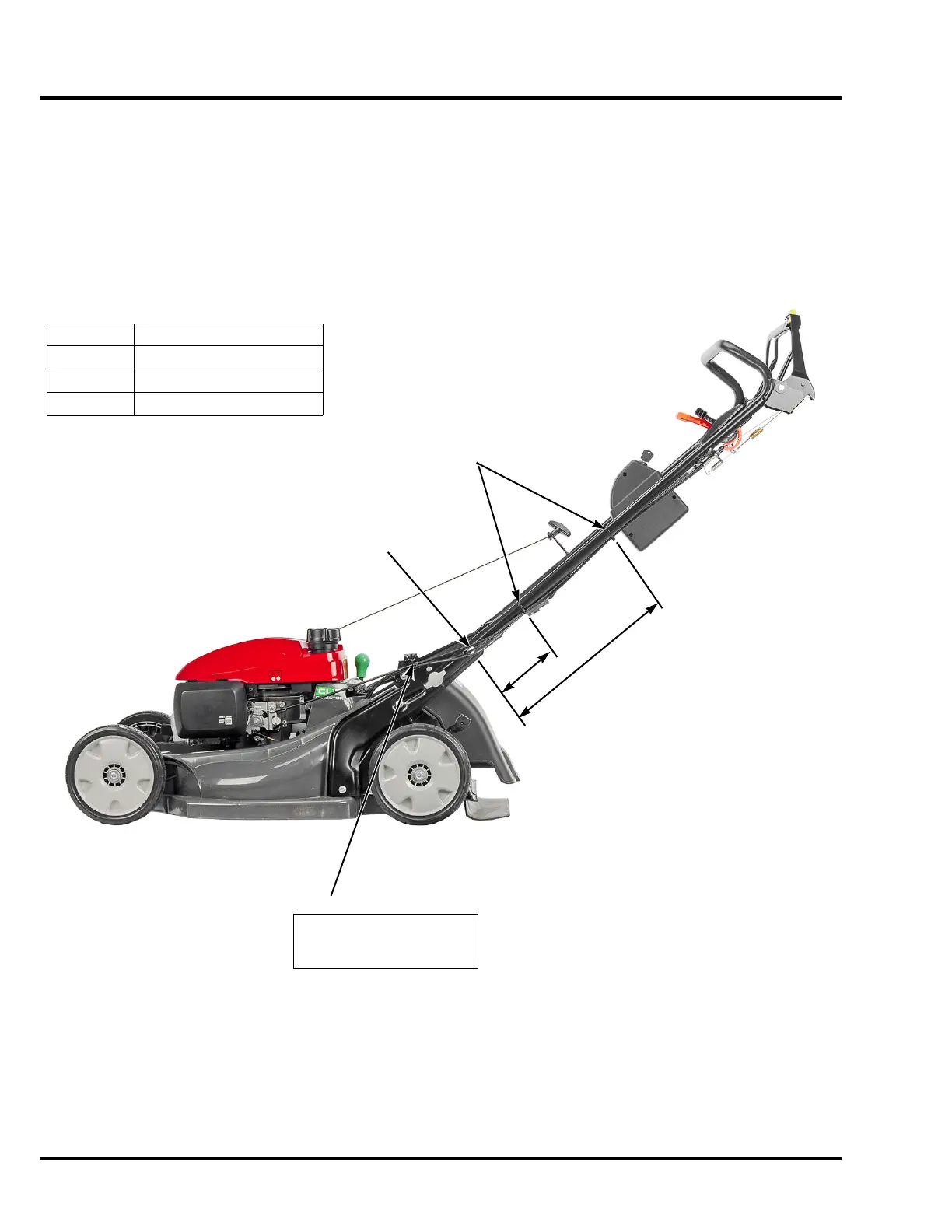

Position the cable ties in the locations shown using the handlebar pivot bolt as a
starting point for your measurements. Adjust and tighten the cable ties.
Trim off any remaining tail from each cable tie, and then rotate the cable ties so that the
head and cut edge are facing down.
Location Distance from pivot bolt
150 mm (5-7/8 in)
140 mm (5-1/2 in)
400 mm (17-3/4 in)
CABLE TIE (2)
PIVOT BOLT
CABLE TIE
Secure the throttle and drive
cables together 150 mm away
from the pivot bolt.
HZA type shown
