MIMAKI JV5 Series User Manual

Cutting out Data without Register Marks
4-35
4

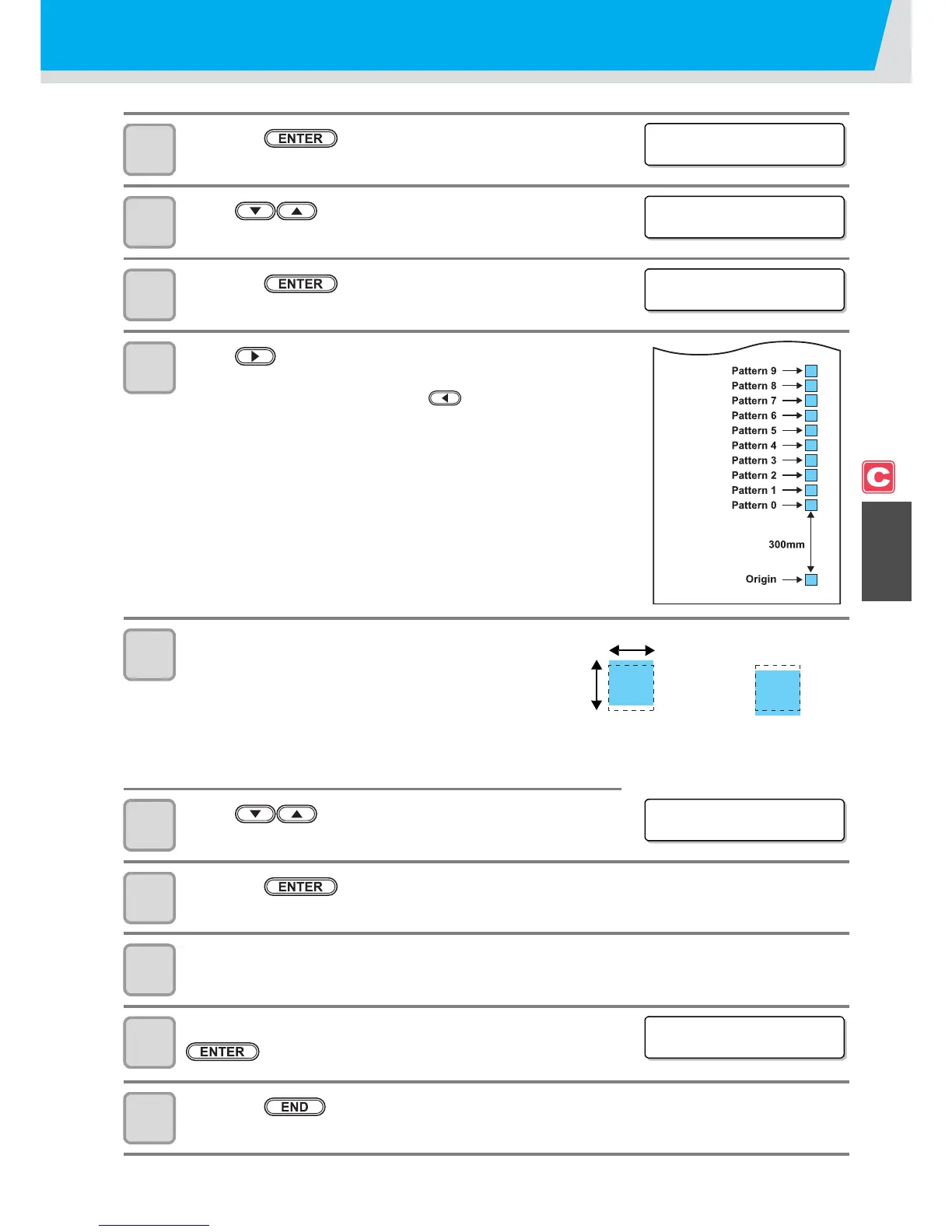

Extended Functions – Cutting –
7
Press the key.
8
Press to select [P/C SCALE ADJ.] .
9
Press the key.
10
Press to print all the pattern and cut the pattern 0.
• The pattern shown on the right is printed.
• To clear the adjustment value, press and go to Step 16.
• The origin is approximately 300mm away from the pattern 0.
11
Remove the pattern 0, and check the
misaligned direction.
• Some are misaligned in the Y direction, but it has no
effect on this adjustment.
12
Press to set + / - .
13
Press the key.
• The machine cuts from the pattern 1 to 9.
14
Remove the pattern from 1, and select one that fits the cutting line and the pattern.
15
Enter the number of the fit pattern, and press the
KEY.
16
Press the key several times to return to LOCAL.
[CUT1]P/C ADJUST
P/CORIGINOFS.<ent>
[CUT1]P/C ADJUST
P/C SCALE ADJ. <ent>
P/C SCALE ADJ.
CLEAR < > PRI NT
If the cutting line is
misaligned downward,
select + direction.
If the cutting line is
misaligned upward,
select - direction.
Y
X
P/C SCALE ADJ.
DIRECTION = +
P/C SCALE ADJ.
ADJ . VALUE =5
