2-17
Setting a Medium
2
Basic Operations

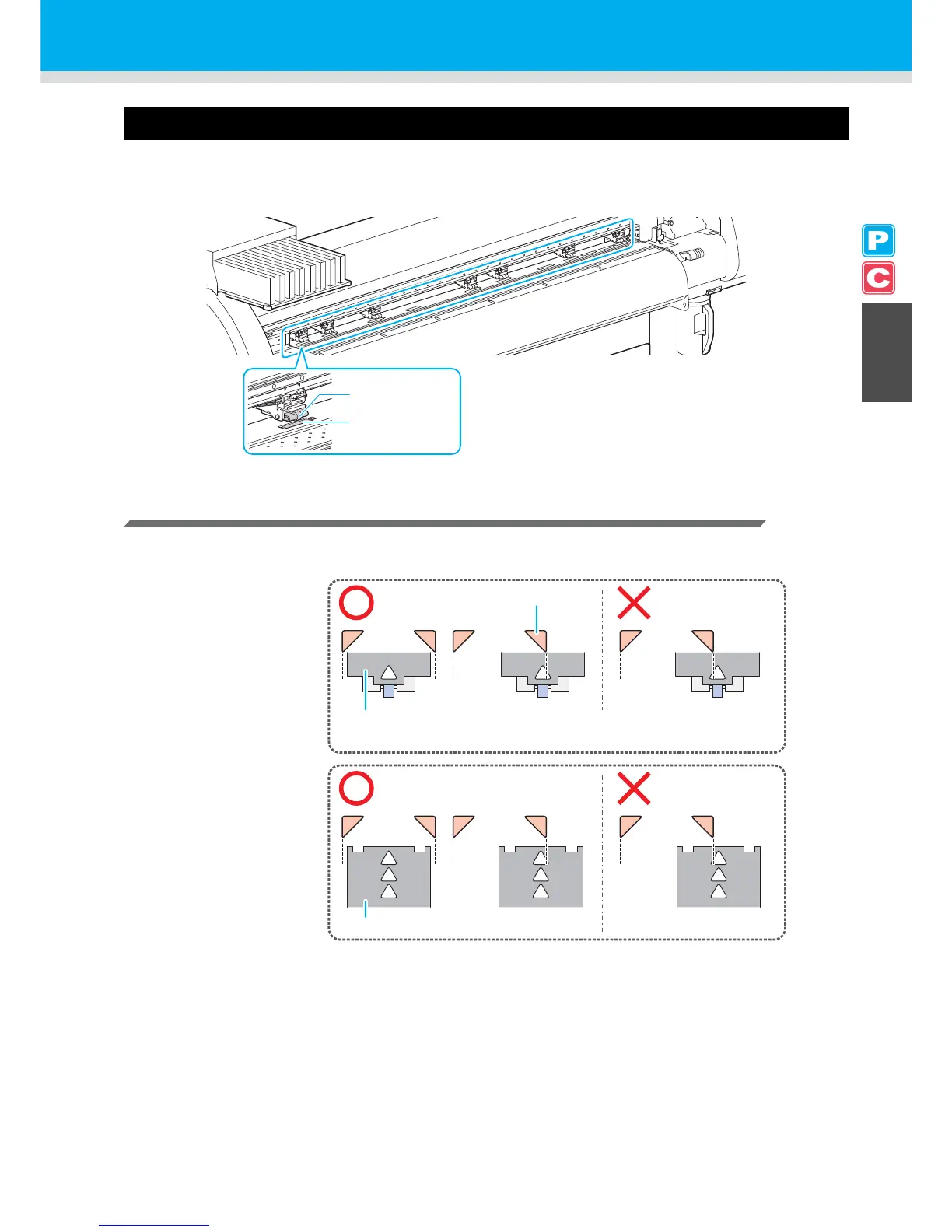

Adjusting the Position of the Pinch Roller According to the State of a Medium
Adjust the position of the pinch roller according to the width of the medium to be set.
This machine feeds the medium with a pinch roller and grid roller for printing or cutting.
The pinch roller should be above the grid roller.
How to Adjust the Pinch Roller
Move the pinch roller unit to adjust the position of the pinch roller.
Use the pinch roller guide mark for positioning.
Pinch roller guide mark
To adjust the pinch roller
from the front side:
To adjust the pinch roller
from the rear side:
Pinch roller unit (top view)
Adjust the pinch roller so that the triangle mark comes between the pinch roller guide marks.
Pinch roller unit (rear side)
To Next Page
