6-9 Creating Cam Tables
This section will explain how to use the Cam Editor of the Sysmac Studio to create a cam table.
Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for details on the Cam Editor.

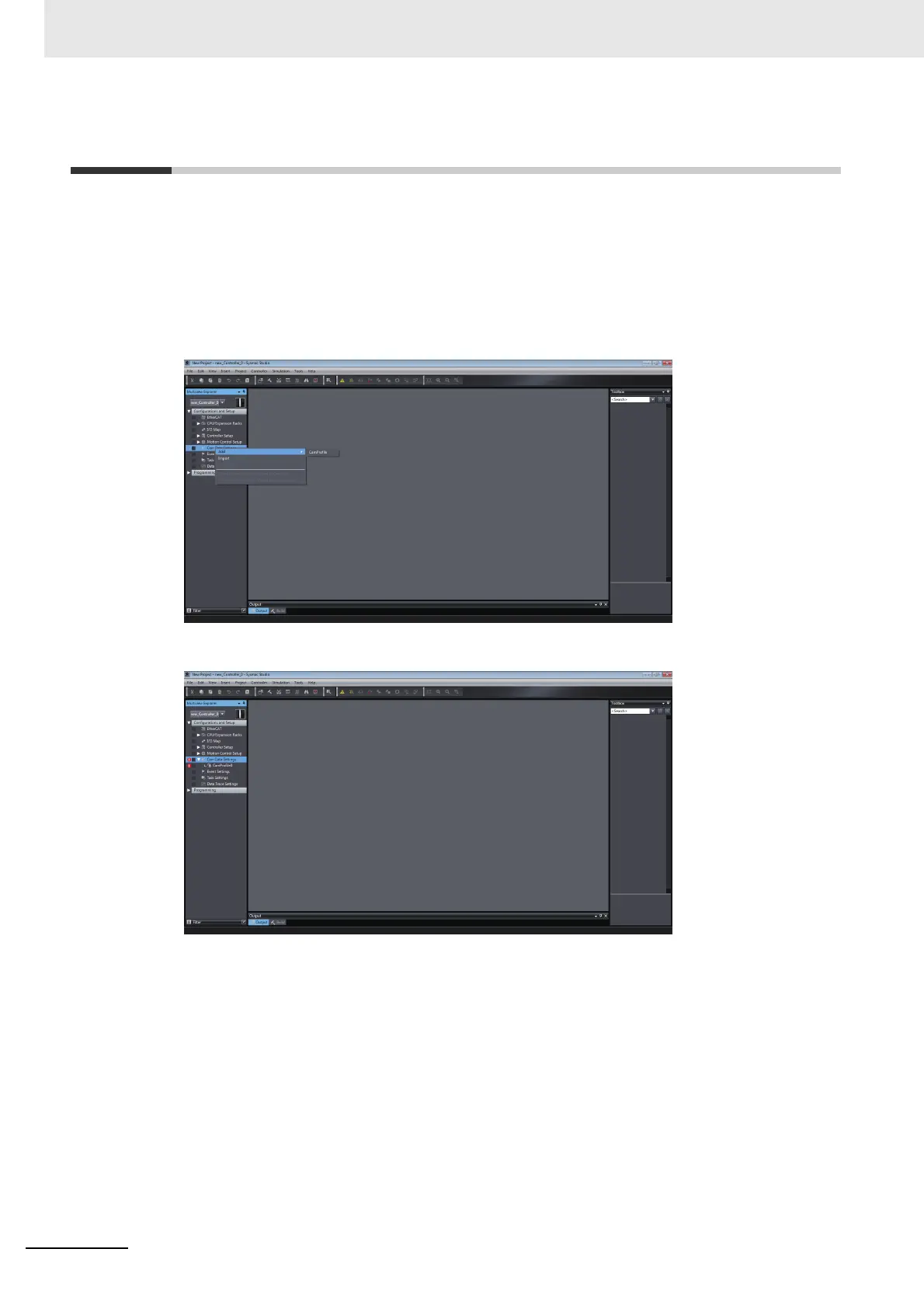

1 Adding a Cam Profile
Right-click Cam Data Settings in the Multiview Explorer and select CamProfile from the Add
Menu.
A cam profile is added to the Multiview Explorer. You can change the name of the cam profile as
required from the default name of CamProfile0.
