NJ/NX-series CPU Unit Motion Control User’s Manual (W507)

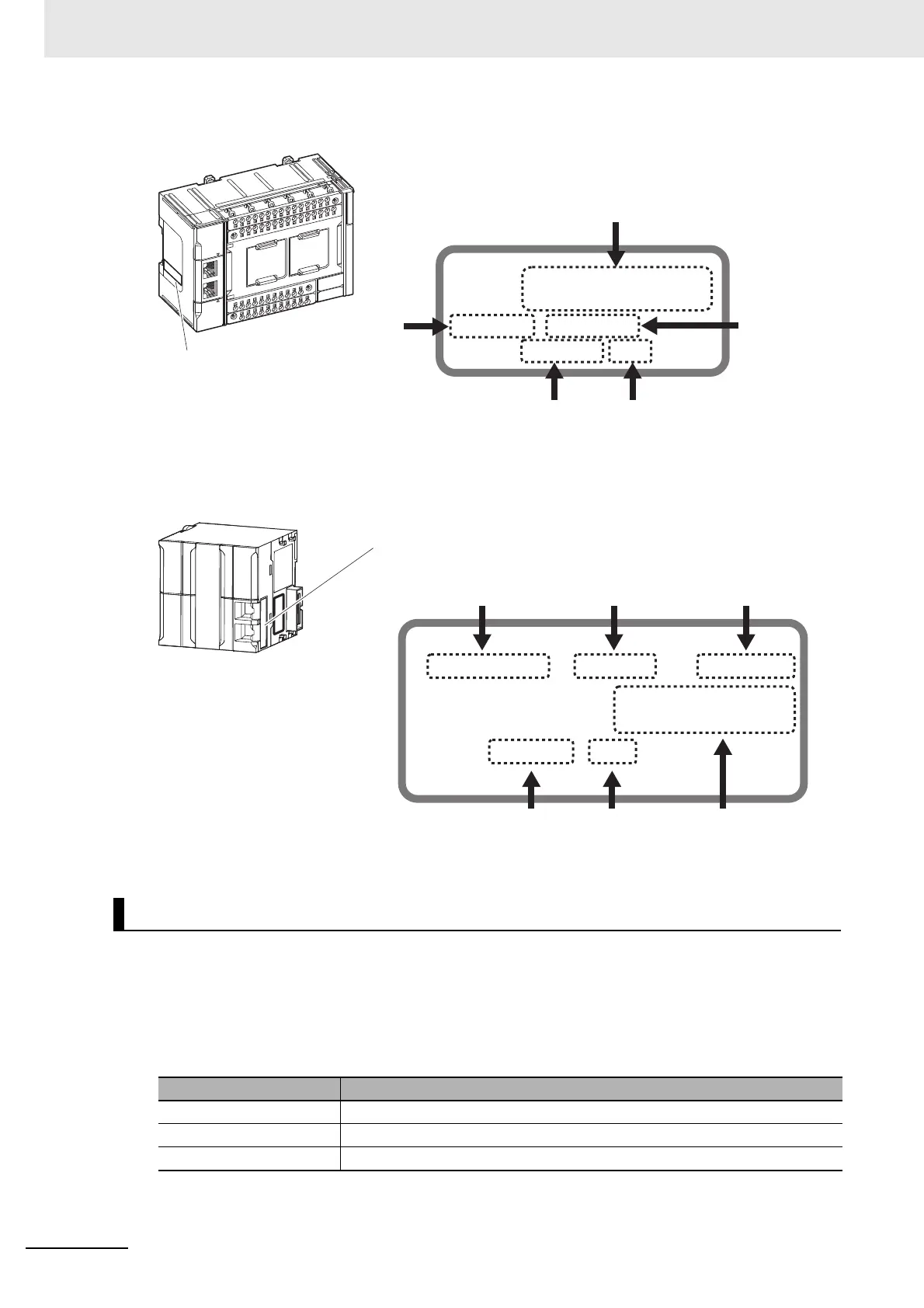

The ID information on an NX-series NX1P2- CPU Unit is shown below.
Note The hardware revision is not displayed for the Unit that the hardware revision is in blank.
The ID information on an NJ-series NJ501- CPU Unit is shown below.
Note The hardware revision is not displayed for the Unit that the hardware revision is in blank.
You can use the Sysmac Studio to check unit versions. The procedure is different for Units and for Eth-
erCAT slaves.
 Checking the Unit Version of an NX-series CPU Unit
You can use the Production Information while the Sysmac Studio is online to check the unit version
of a Unit. You can do this for the following Units.
Checking Unit Versions with the Sysmac Studio
Model Unit for which unit version can be checked
NX701- CPU Unit
NX102- CPU Unit and NX Unit on CPU Rack
NX1P2- CPU Unit, NX Unit on CPU Rack, and Option Boards
ID information indication
Lot number Serial number
Unit version
PORT1 : 
PORT2 : 
Ver.1. HW Rev. 
LOT No. DDMYY xxxx
MAC address
Hardware
revision
ID information indication
Unit model
Lot number Serial number MAC address
Unit version Hardware revision
NJ501 -  Ver.1. 
PORT1 MAC ADDRESS: 
PORT2 MAC ADDRESS: 
Lot No. DDMYY  xxxx
HW Rev. 
