Rockwell Automation Publication 750-TG100B-EN-P - June 2019 137
Frame 7 Components Chapter 6
Install the Current Sense Circuit Board
Install the current sense circuit board in the reverse order of removal. When
installing the fiber-optic cable:
1. Remove the transceiver from the fiber-optic port on the current sense
circuit board.
2. Without bending the cable to a radius less than 50 mm (2 in.), fully insert
the fiber-optic cable into the transceiver.
3. Insert the transceiver and fiber-optic cable into the port on the board, until
you hear an audible ‘click.’
IMPORTANT

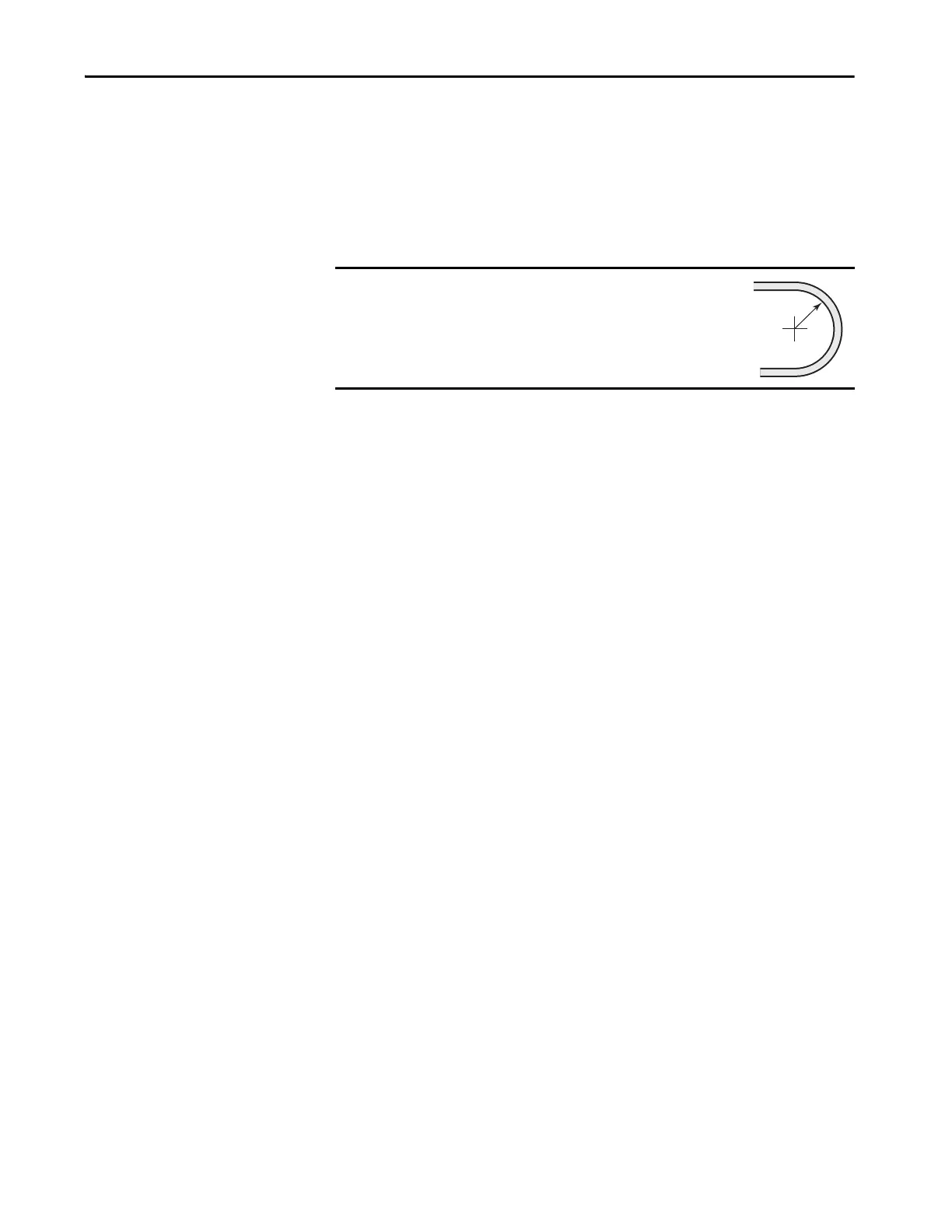

Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
