Chapter 9 Power Bay Components
IP54 Exhaust Fan
Replacement
Replace the exhaust fan on a power bay with kit catalog number
SK-RM-PBFAN1-F8.
Remove the IP54 Exhaust Fan
Follow these steps to remove and replace the IP54 exhaust fan on a power bay.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Open the power bay enclosure door.
4. Remove the M8 hex nut that secures the ground wire terminal to the
grounding stud on the inside of the enclosure and remove the wire.

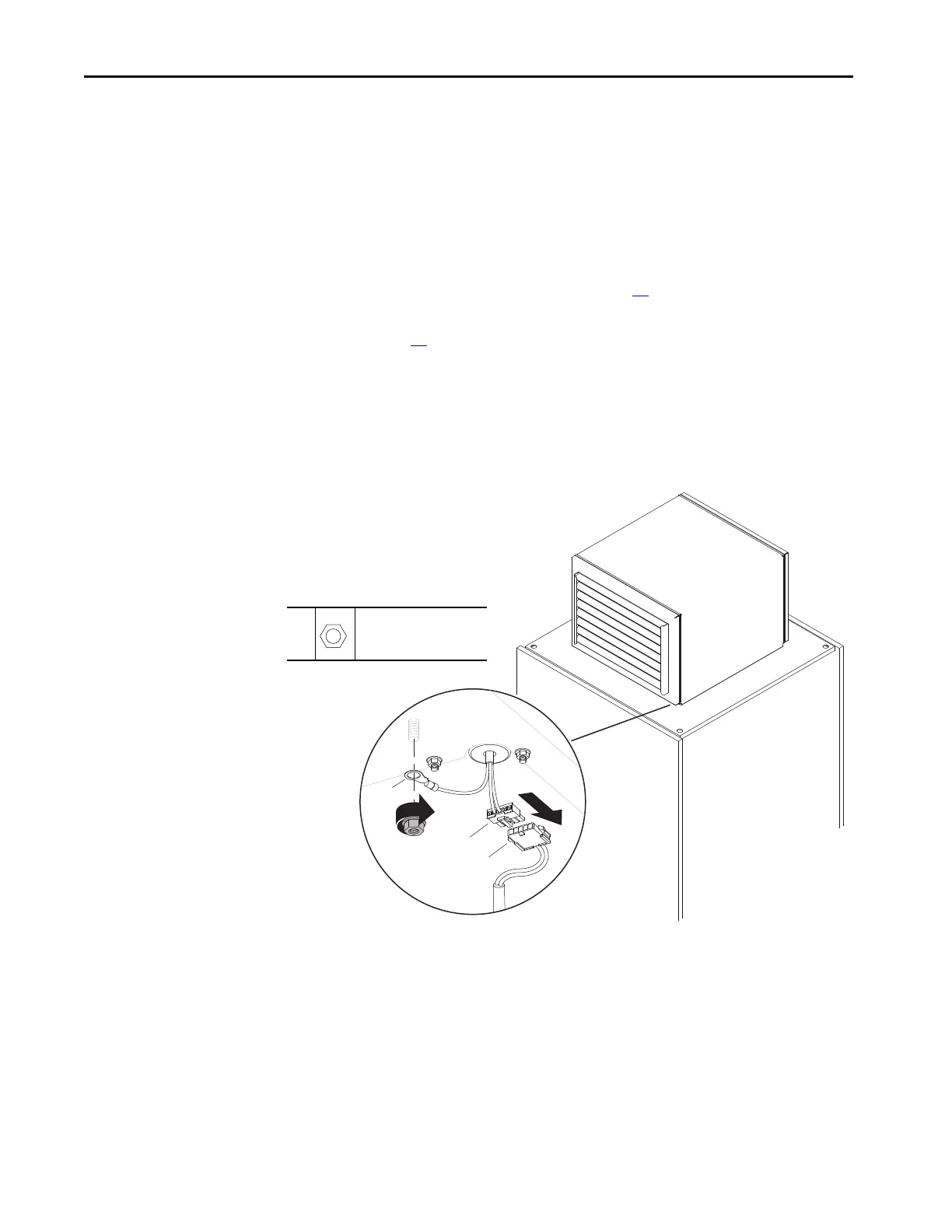

5. Disconnect connector P1 from connector P12 on the inside of the
enclosure.
4
M8
13 mm
10.2 N•m (90 lb•in)
To Next Page
