66 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 4 Frame 5 Components
Potential Earth (PE) Jumper
Replacement
Replace a PE jumper with kit catalog number SK-RM-JMPR1-F5.
Remove the PE Jumper
Follow these steps to remove the PE jumper.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Remove the cover from the chassis. See Remove the Cover on page 56
.

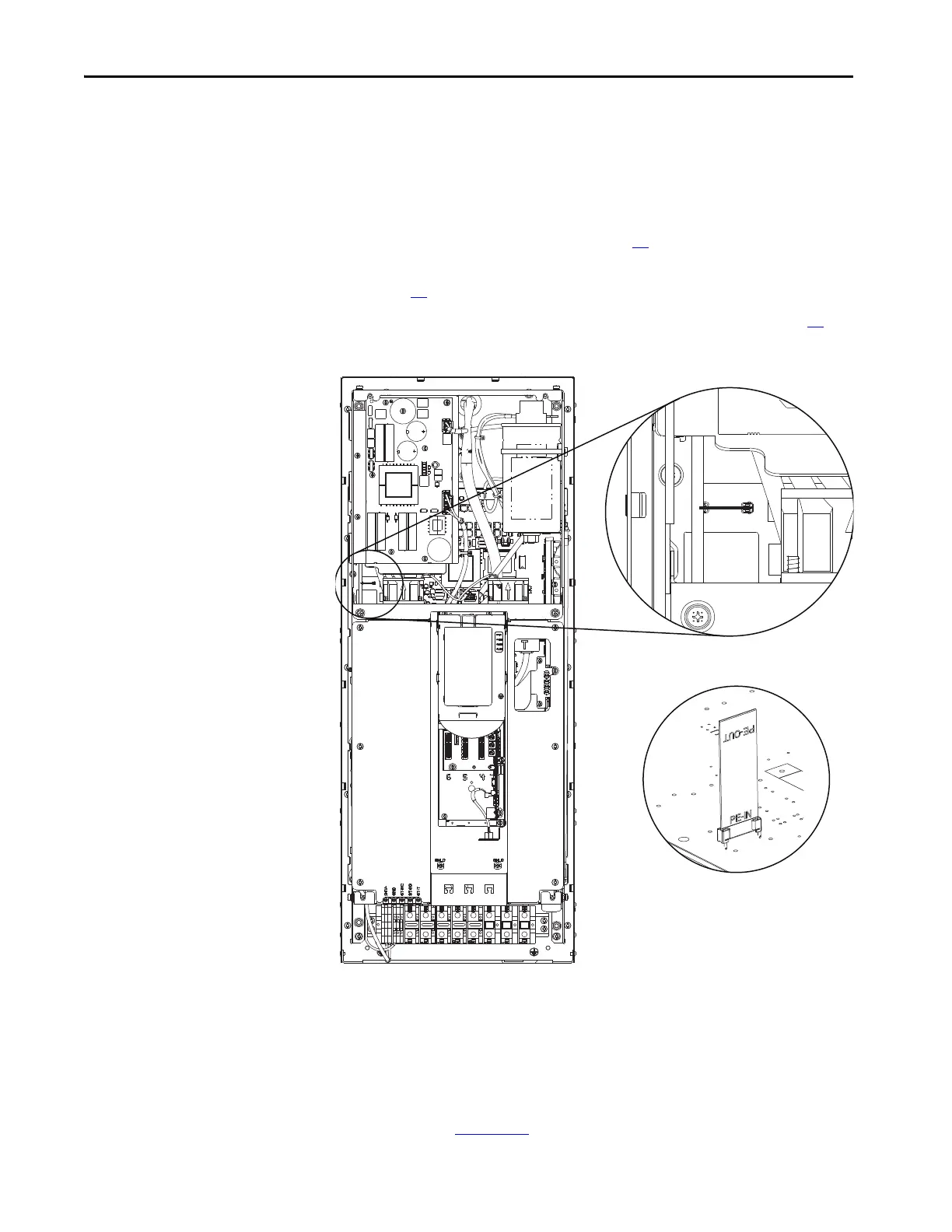

4. Remove the PE jumper from the power circuit board.
Install the PE Jumper
Install the PE jumper in the reverse order of removal.
• Verify that the jumper is installed in the correct position as required for
your grounding scheme and application. See the PowerFlex 750-Series
Products with TotalFORCE Control, Installation Instructions,
publication 750-IN100
, for jumper configuration.
