Rockwell Automation Publication 750-TG100B-EN-P - June 2019 145

Control Bay and Control Pod Components Chapter 7

IP21/IP54 Door Vent Filter

Replacement

Replace an IP21/IP54 door vent filter with kit catalog number

SK-RM-CB3DR-FLTR1.

Remove the IP21/IP54 Door Vent Filter

Follow these steps to remove the IP21/IP54 door vent filter.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the control bay enclosure door.

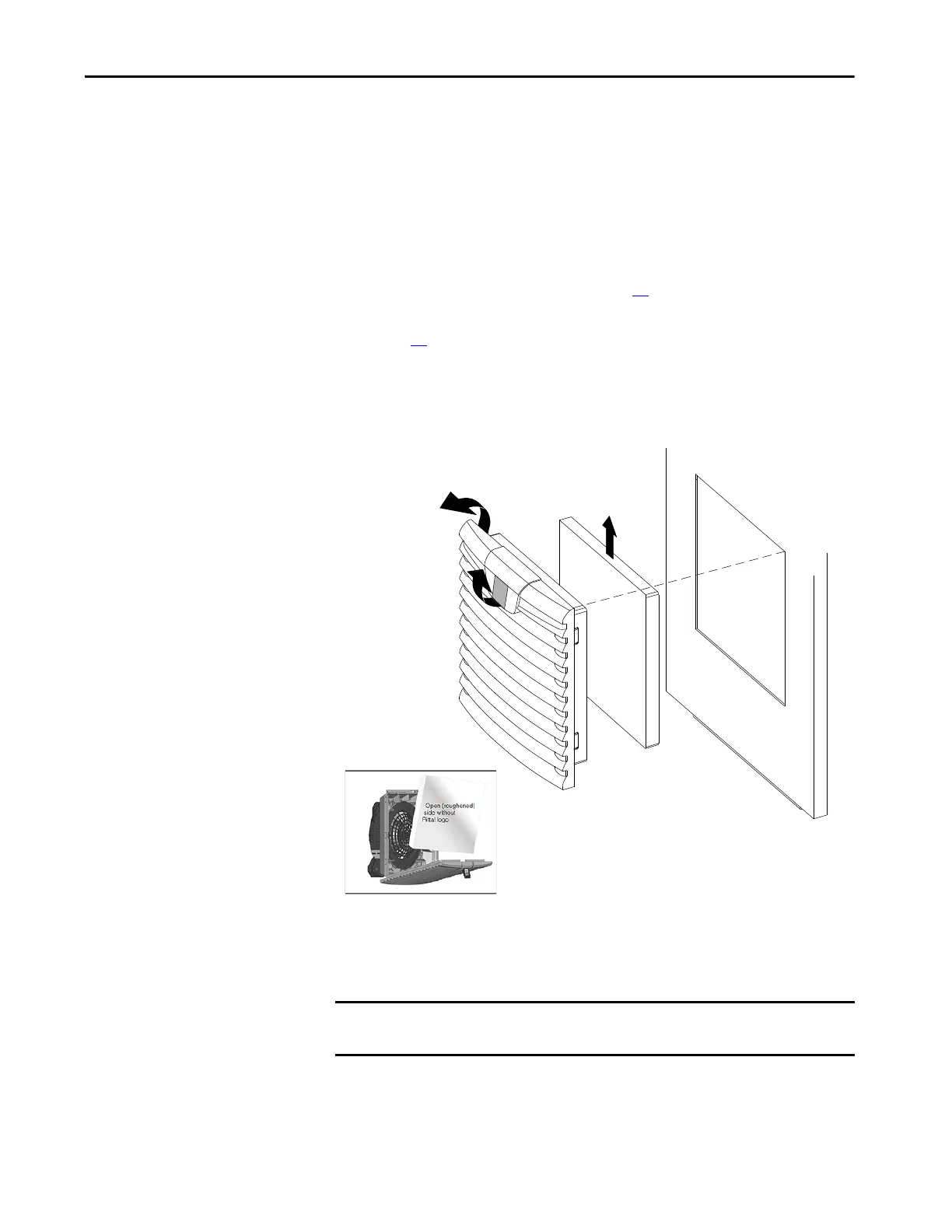

4. Lift the tab on the top center of the vent cover and rotate out the cover.

5. Remove the filter media from the vent.

Install the IP21/IP54 Door Vent Filter

Install the IP21/IP54 door vent filter in the reverse order of removal.

IMPORTANT Verify that the Rittal logo on the fiber filter media points inward, toward the

interior of the enclosure.
