Rockwell Automation Publication 750-TG100B-EN-P - June 2019 71
Frame 5 Components Chapter 4

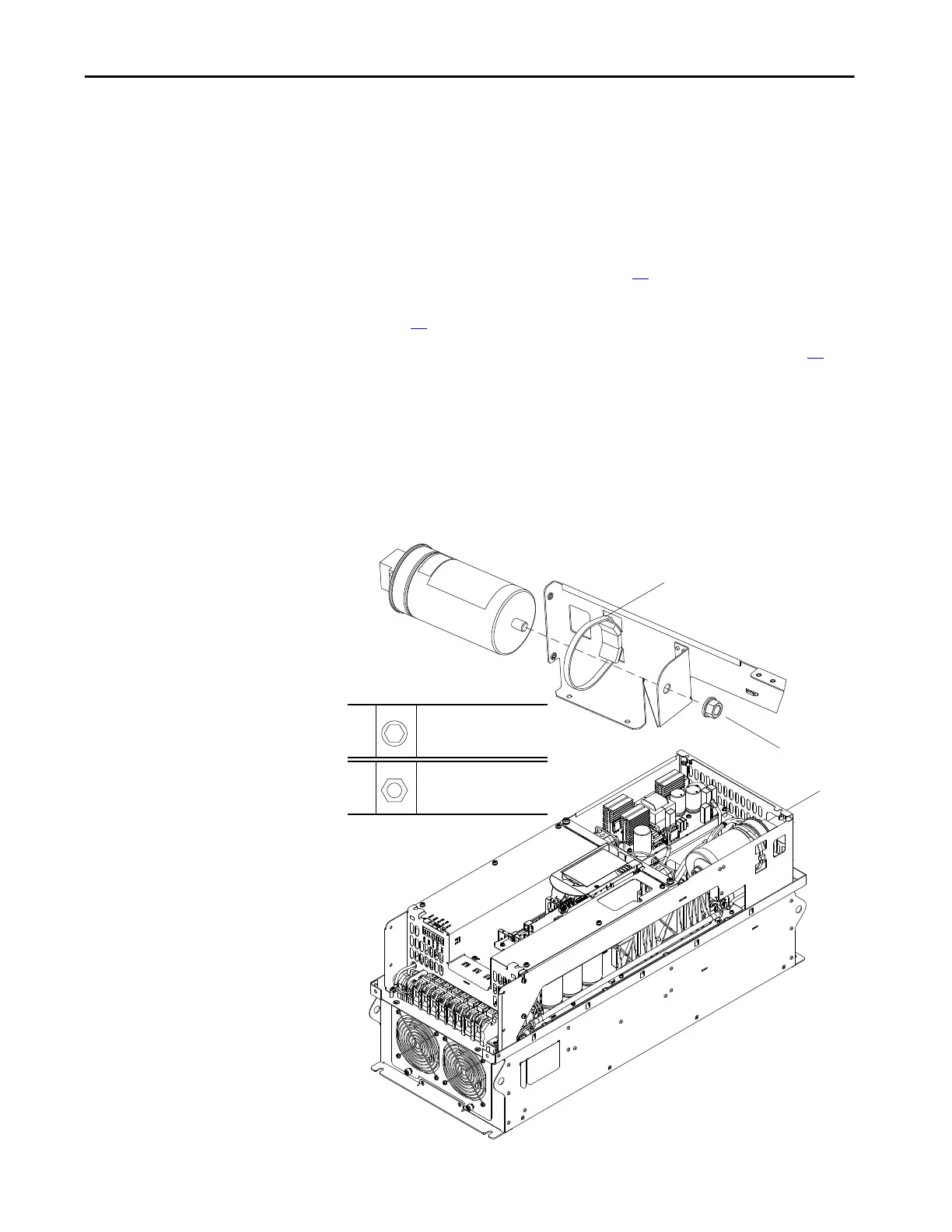

LCL Filter Capacitor
Replacement
Replace an LCL filter capacitor with kit catalog number:
SK-RM-LCLCP4-F5 (400/480V), SK-RM-LCLCP6-F5 (600/690V).
Remove the LCL Filter Capacitor
Follow these steps to remove the LCL filter capacitor.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Remove the cover from the chassis. See Remove the Cover on page 56
.
4. Loosen the M5 hexagonal screws that secure the capacitor wires to
terminals R, S and T on the capacitor terminal block at the top of the cap,
and remove the wires.
5. Remove the M12 hex nut that secures the capacitor to the mounting
bracket.
6. Cut the cable tie that secures the capacitor to the bracket, and remove the
capacitor.
5
4
5
M12
19 mm
9.0 N
•m (80 lb•in)
6
4
M5
3 MM
1.8 N
•m (16.0 lb•in)
