156 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 7 Control Bay and Control Pod Components

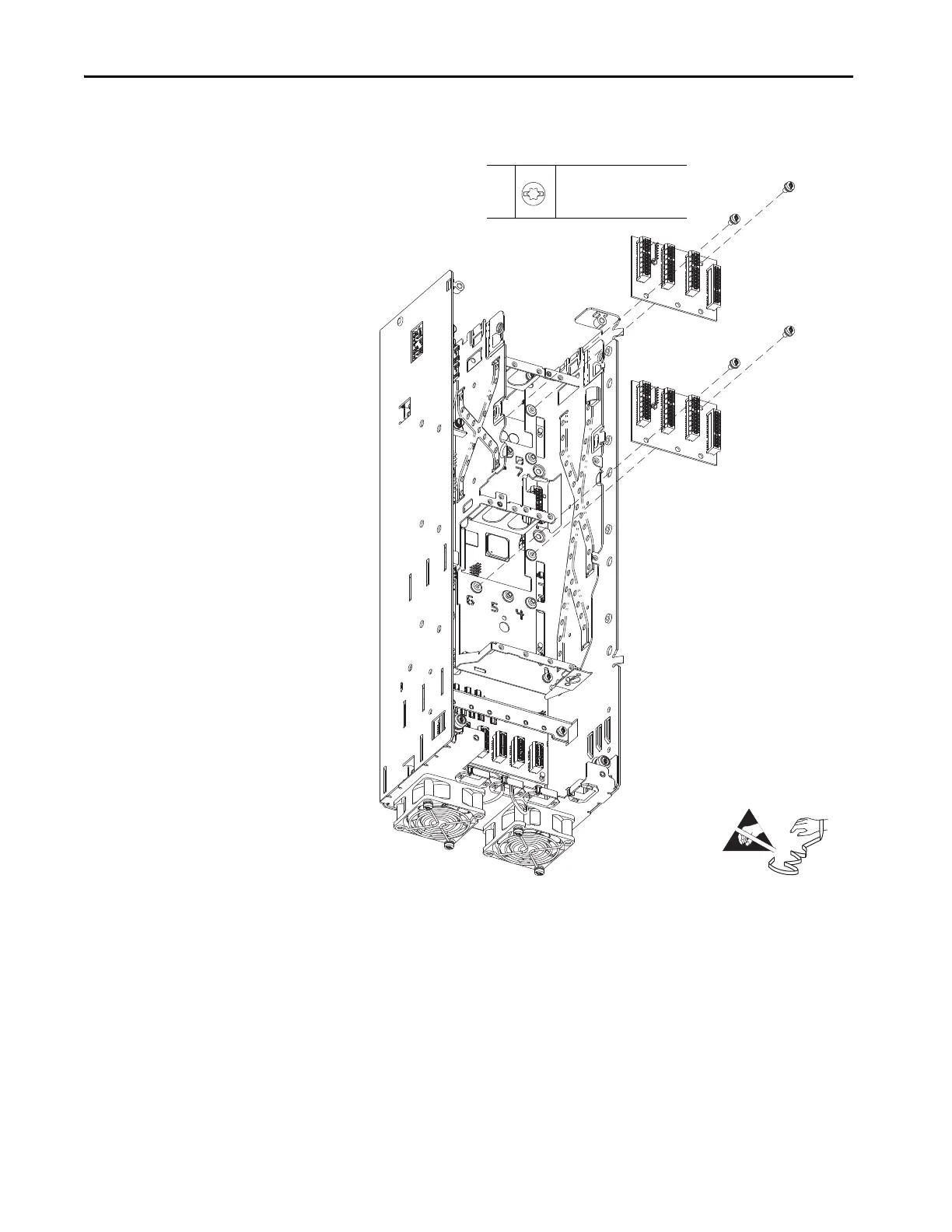

7. Remove the two M4 x 8 mm torx screws that secure the backplane circuit

board to the pod chassis and remove the board.

Install the Backplane Circuit Board

Install the backplane circuit board in the reverse order of removal.

M4 x 8 mm

T20 or F - 5 mm (0.19 in.)

2.6 N

•m (23 lb•in)
