Chapter 8 Input Bay Components
Install the IP54/IP21, 400/600 mm Wide Door Vent Filters
Install the IP54/IP21, 400/600 mm wide door vent filters in the reverse order of
removal.
IP54, 800/1000 mm Wide
Door Vent Filters
Replacement
Replace the IP54 door vent filters for an 800 mm wide power bay or 1000 mm
wide input bay with kit catalog number SK-RM-PB8DR-54FLTR1.
Remove the IP54, 800/1000 mm Wide Door Vent Filters
Follow these steps to remove the IP54, 800/1000 mm wide door vent filters.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.

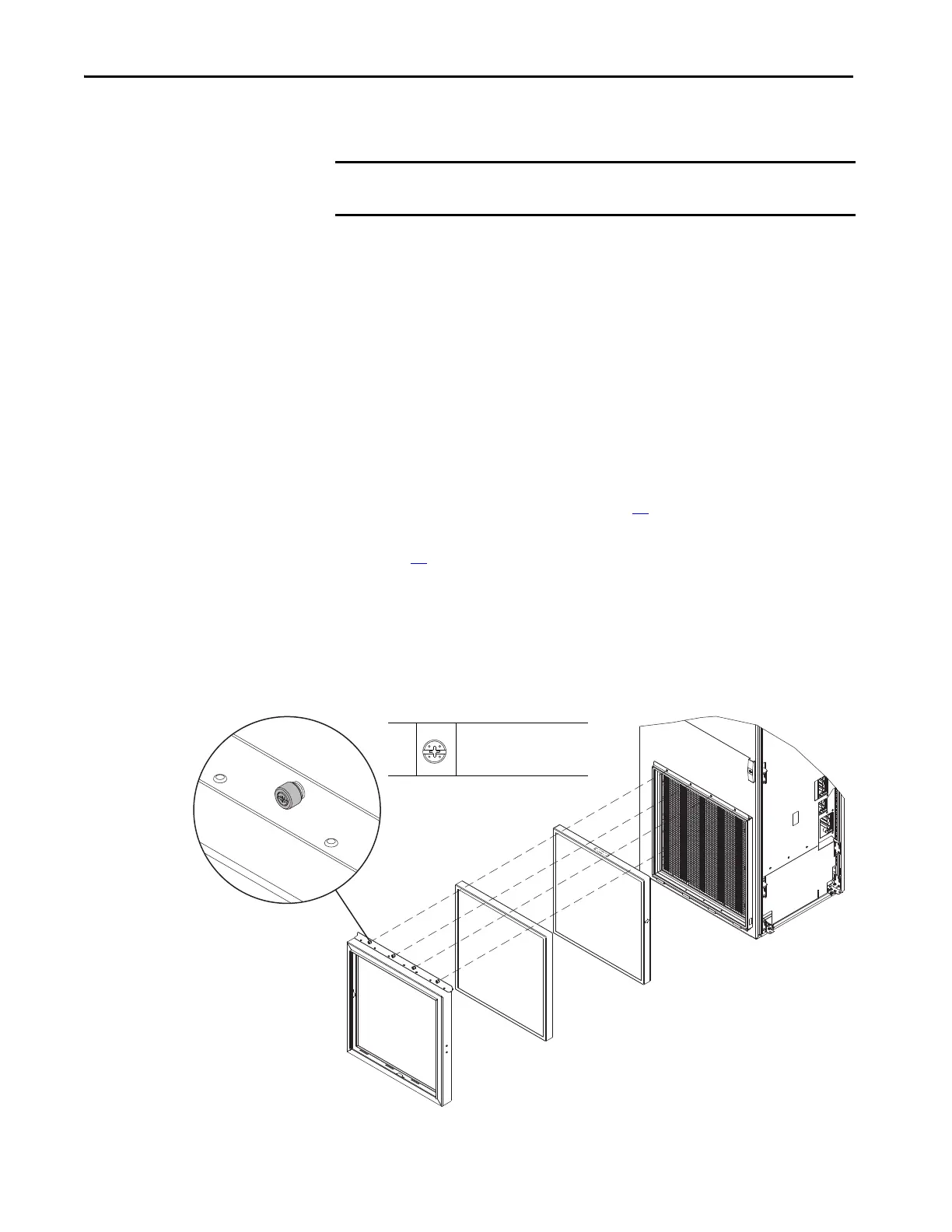

3. Loosen the four slotted-Phillips head, captive screws that secure the filter
cassette cover and metal mesh filter to the cassette chassis on the door and
remove the cover and metal mesh filter.
4. Remove the metal mesh filter from the cover.
5. Pull the top edge of the fiber filter out and lift it off the cassette.
IMPORTANT Verify that the Rittal logo on the fiber filter media points inward, toward the
interior of the enclosure.
3
M4 x 10 mm
P2 or F - 6.4 mm (0.25 in.)
1.1 N
•m (10 lb•in)
