196 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 8 Input Bay Components

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the input bay enclosure door.

4. Remove the guard from the enclosure. See Guard Removal on page 183

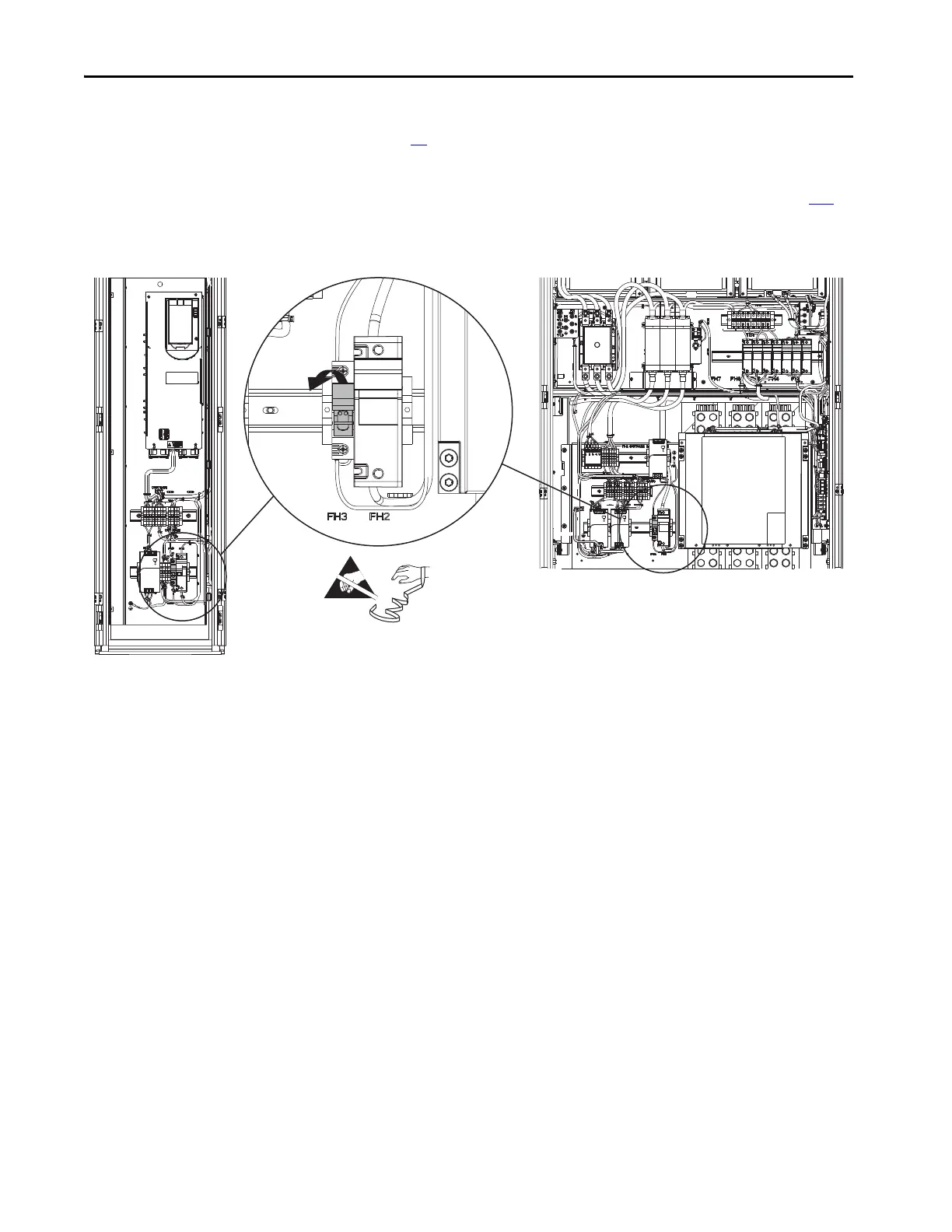

5. Pull out on the tab on the fuse holder and remove the fuse.

Install the Roof Fan 240V Control Power Fuse

Install the roof fan 240V control power fuse in the reverse order of removal.

Control Bay Frame 10 Input Bay
